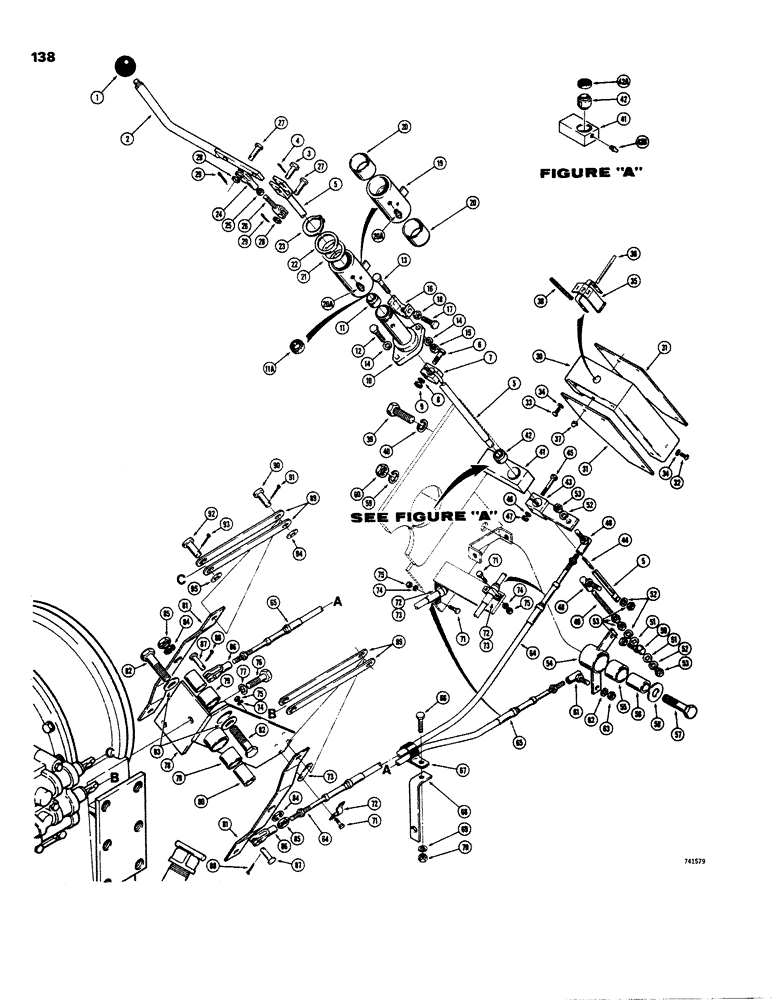

Запчасти Case W26B (138) - TRANSMISSION CONTROL PARTS, BEFORE TRACTOR SN. 9113570 (06) - POWER TRAIN

1

A23885

KNOB

- transmission shift lever

1шт.

2

L46921

LEVER - transmission shift control

1шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

L46931

SHAFT

- transmission control

1шт.

6

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

1шт.

7

L43647

CAM - neutral start switch

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

L50413

POST

ASSEMBLY - shift collar and control shaft support, 1-1/16" (27 mm) O.D. bushing, order L51990 post assembly for service, Includes: Ref. 10 - 11A

1шт.

10

L40414

POST

- shift collar and control shaft support, order L51990 post assembly for service

1шт.

11

L46936

BUSHING

- self-aligning, control shaft, order L33937 bushing kit for service

1шт.

11

L33937

KIT

BUSHING KIT - self-alignment (Service replacement)

1шт.

11a

NLS

NO LONGER SERVICED

SEAL - collar

1шт.

L51990

FUNNEL

POST ASSEMBLY - shift collar and control shaft support 1-1/8" (28 mm) O.D. bushing, Includes: Ref. 10 - 11A

1шт.

10

NSS

NOT SOLD SEPARAT

POST - shift collar and control shaft

1шт.

11

L51991

CYLINDER END CAP

BUSHING - self-alignment, control shaft

1шт.

11a

L51984

SEAL

SEAL - collar

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

16

L43503

BRACKET - stop, shift lever

1шт.

17

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16" - 24 NF x 1" (Shift lever stop)

2шт.

18

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam (5/16" - 24 NF)

2шт.

L47023

COLLAR

ASSEMBLY - shift lever (When stock is exhausted, order L50664 collar assembly for service), Includes: Ref. 19 and 20

1шт.

L50664

COLLAR

ASSEMBLY - shift lever, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

COLLAR - shift lever

1шт.

20

L43507

CYLINDER END CAP

BUSHING - shift collar

2шт.

20a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

1шт.

21

VT3996

SHIM - shift collar, .010" (.25 mm)

1шт.

21

VT3997

SHIM,.010" Thk

- shift collar, .050 (1.2 mm)

1шт.

22

L43506

WASHER - shift collar

1шт.

23

L32161

SNAP RING,#131, Ext

Ring, Snap, , shift collar #131, Ext

1шт.

L46923

LINK ASSEMBLY - shift lever to collar, Includes: Ref. 24 - 26

1шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - shift lever

1шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam (3/8" - 24 NF)

1шт.

26

VR2694

YOKE - rod end (3/8")

1шт.

27

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

28

95-6

WASHER,3/8"

- plain () If used (14 gauge) 3/8"

2шт.

28

195-2031

WASHER

- plain (3/8") If used (20 gauge)

2шт.

29

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

30

L46973

COVER

- shift indicator (When stock is exhausted, order L50660 cover for service)

1шт.

30

L50660

COVER

- shift indicator

1шт.

31

L47026

PLATE

- side, shift indicator cover (When stock is exhausted, order L50661 plate for service)

2шт.

31

L50661

LARGE PLATE

PLATE - side, shift indicator cover

2шт.

32

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- machine, round head (#8 -32 NC x 3/8")

3шт.

33

187-20

SCREW - self-tapping (#8 - 32 NC)

4шт.

34

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

7шт.

35

L47033

PLATE

- mounting, shift decal

1шт.

36

L47029

PIN - pivot, decal plate

1шт.

37

131-419

NUT - acorn, push-on

2шт.

38

L47153

VALVE SPRING

SPRING - return, decal plate

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

40

92-8

LOCK WASHER,1/2"

1шт.

L50414

BLOCK

ASSEMBLY - mounting, control shaft. 1 - 1/16" O.D. (27 mm) bushing, Includes: Ref. 41 - 42A

1шт.

41

L12278

BLOCK

- mounting, control shaft, order L50414 block assembly for service

1шт.

42

L46936

BUSHING

- self-alignment, control shaft, order L33937 bushing kit for service

1шт.

42

L33937

KIT

BUSHING KIT - self-alignment (Service replacement)

1шт.

42a

L50035

SEAL - block

1шт.

L51988

BLOCK ASSY.

BLOCK ASSEMBLY - mounting, control shaft, 1-1/8" (28 mm) O.D. bushing, Includes: Ref. 41 - 42A

1шт.

41

NSS

NOT SOLD SEPARAT

BLOCK - mounting, control shaft

1шт.

42

L51991

CYLINDER END CAP

BUSHING - self-alignment, control shaft

1шт.

42a

L51984

SEAL

SEAL - collar

1шт.

42b

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF) If used

1шт.

43

L46930

LEVER - control, forward-reverse

1шт.

44

F65828

KEY

- control, Serial Range: lever-shaft

1шт.

45

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

46

92-5

LOCK WASHER,5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

48

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, bellcrank and cable to control shaft

2шт.

49

L43850

ROD

- connecting, upper to lower joint

1шт.

50

L43672

JOINT TURNING

JOINT - ball, control shaft to bellcrank (Lower)

1шт.

51

95-4

WASHER,1/4"

- plain () 1/4"

2шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

53

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

6шт.

NLS

NO LONGER SERVICED

BELLCRANK ASSEMBLY - range control, Includes: Ref. 54 and 55

1шт.

54

NSS

NOT SOLD SEPARAT

BELLCRANK - range control

1шт.

55

F53645

BEARING

BUSHING - pivot

1шт.

56

L43225

SPACER

- bellcrank

1шт.

57

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

58

95-8

WASHER,1/2"

plain 1/2"

1шт.

59

92-8

LOCK WASHER,1/2"

1шт.

60

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

61

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, Serial Range: bellcrank-cable

1шт.

62

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

63

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

64

L43243

BOWDEN CONTROL

CABLE - control, transmission forward-reverse

1шт.

65

L43242

BOWDEN CONTROL

CABLE - control, transmission range

1шт.

66

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

67

51200329

CLIP

CLAMP - cable

1шт.

68

L46709

BRACKET - mounting, clamp

1шт.

69

92-5

LOCK WASHER,5/16"

1шт.

70

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

71

169-102

SCREW,Sl Fil Hd, #10 - 24 x 1"

- machine, slotted head (#10 - 24 NC x 1")

8шт.

72

L40314

CLAMP

- cable

4шт.

73

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

SPACER - cable clamp

4шт.

74

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

75

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

8шт.

76

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

77

92-6

LOCK WASHER,3/8"

2шт.

L43232

BRACKET ASSEMBLY - shift control (At transmission), Includes: Ref. 78 and 79

1шт.

78

NSS

NOT SOLD SEPARAT

BRACKET - shift control

1шт.

79

F56345

BUSHING - pivot

2шт.

80

L43228

SPACER

- bellcrank

2шт.

81

L43229

BELLCRANK - shift control, rear

2шт.

82

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

2шт.

83

95-8

WASHER,1/2"

plain 1/2"

2шт.

84

92-8

LOCK WASHER,1/2"

2шт.

85

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

86

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - cable end to bellcrank

2шт.

87

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

2шт.

88

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

89

L40136

LINK - connecting, bellcrank to transmission control valve

4шт.

90

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Bellcrank to connecting link 3/8" x 1.060"

2шт.

91

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

92

132-26

COTTER PIN

PIN - clevis (1/2") Connecting link to transmission control valve

2шт.

93

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

94

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

95

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.
