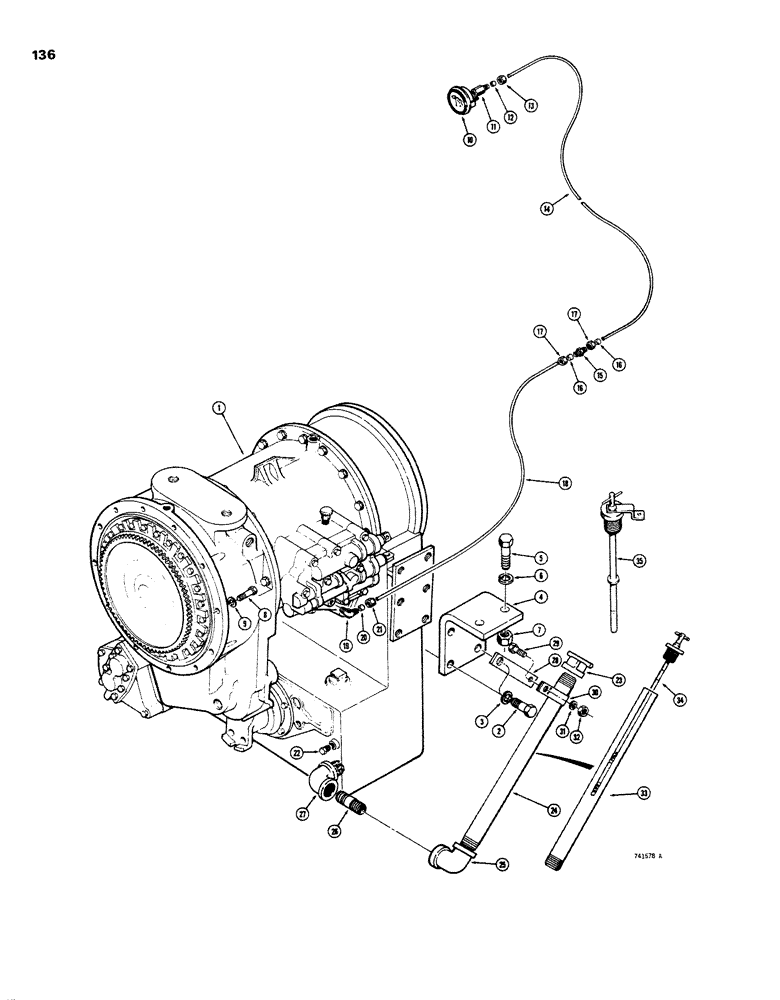

Запчасти Case W26B (136) - TRANSMISSION AND RELATED PARTS, TRANSMISSION MOUNTING PARTS (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete. see figures 106 thru 128 for transmission

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Transmission to mounting bracket) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

L40035

BRACKET - mounting, Serial Range: transmission-frame

2шт.

5

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(Mounting bracket to frame) Hex, 5/8"-11 x 2", G5

4шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

25-1010

NUT,5/8"-11, G5

4шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Transmission to engine) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

9

92-6

LOCK WASHER,3/8"

12шт.

10

A56447

ELECTRICAL GAUGE

GAUGE - pressure, clutch

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - flex tube, clutch pressure gauge, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - connector, clutch pressure gauge

1шт.

12

222-5045

SLEEVE,1/8" Tube

- connector, clutch pressure gauge

1шт.

13

222-5058

NUT,3/8"-24

NUT - connector, clutch pressure gauge

1шт.

14

L16685

TUBE,0.078" ID x 0.125" OD x 86" L

- gauge to transmission (Front section), clutch pressure

1шт.

222-5160

HYD CONNECTOR,3/8"-24, Hi-seal

UNION ASSEMBLY - clutch pressure tube, gauge, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - union, clutch pressure gauge

1шт.

16

222-5045

SLEEVE,1/8" Tube

- union, clutch pressure gauge

2шт.

17

222-5058

NUT,3/8"-24

NUT - union, clutch pressure gauge

2шт.

18

L16688

TUBE,0.078" ID x 0.125" OD x 32" L

- gauge to transmission (Rear section), clutch pressure

1шт.

222-5021

ELBOW UNION,90 Degree, 3/8"-24 x 1/8" NPT, Hi-seal

ELBOW ASSEMBLY - 90 degrees, flex (At valve), clutch pressure gauge, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - elbow, clutch pressure gauge

1шт.

20

222-5045

SLEEVE,1/8" Tube

- elbow, clutch pressure gauge

1шт.

21

222-5058

NUT,3/8"-24

NUT - elbow, clutch pressure gauge

1шт.

22

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, hex. head (Level check) 1/4" NPT, transmission filler parts

1шт.

23

L13872

CYLINDER END CAP

CAP - transmission filler tube, parts

1шт.

24

L43296

TUBE,1.66" OD x 17.3" L

- transmission oil filler, parts

1шт.

25

221-380

ELBOW,90 Degree, 1 1/4" NPT

- female, 90 degrees (1-1/4" NPT), transmission filler parts

1шт.

26

221-260

HYD CONNECTOR

NIPPLE - pipe (1-1/4" NPT x 1-5/8"), transmission filler parts

1шт.

27

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- street, 90 degrees (1-1/4" NPT), transmission filler parts

1шт.

28

L43006

BRACKET - clamp mounting, transmission filler parts

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Transmission filler parts Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

30

R14507

CLAMP - filler tube to bracket, transmission parts

1шт.

31

92-6

LOCK WASHER,3/8"

transmission filler parts 3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), transmission filler parts

1шт.

33

NLS

NO LONGER SERVICED

PIPE - transmission filler (Used with L59784 dipstick or L72518 dipstick), parts

1шт.

34

L59784

DIPSTICK

- transmission oil level (If used), filler parts

1шт.

35

L72518

DIPSTICK

- transmission oil level (Used with lockup parts), filler parts

1шт.
