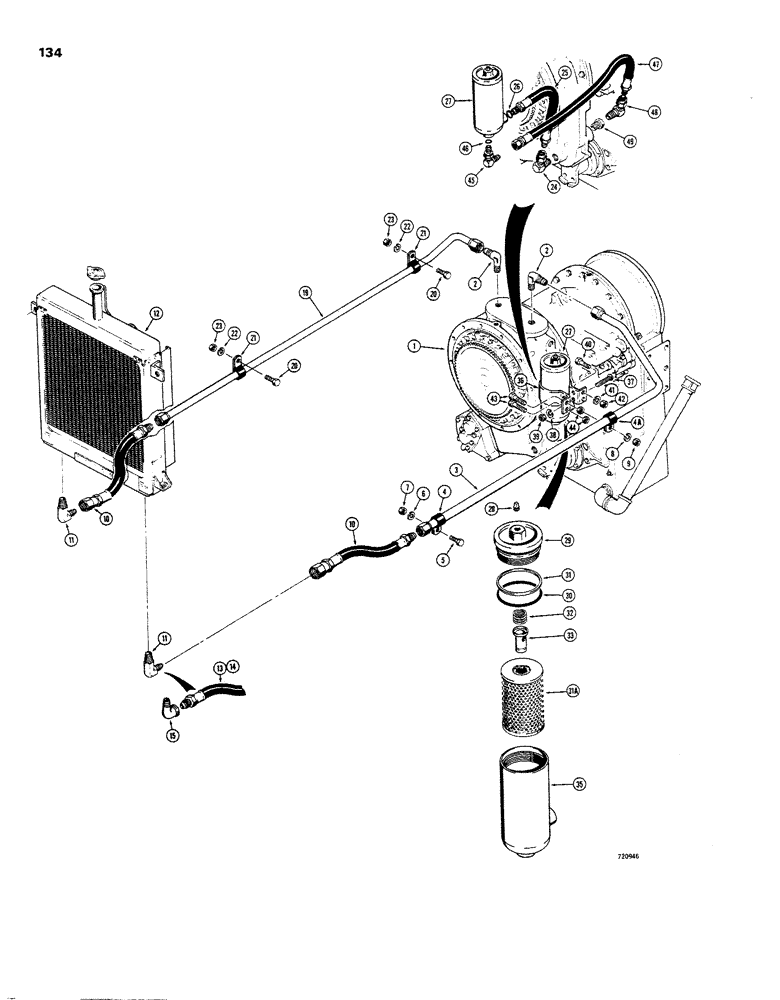

Запчасти Case W26B (134) - TRANSMISSION HYDRAULIC SYSTEM, TRACTOR SN. 9107521 AND AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete, see figures 106 thru 128 for transmission

1шт.

2

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (At transmission)

2шт.

3

L41245

TUBE - transmission to cooler (Front section at transmission)

1шт.

4

49789

CLAMP

- tube (Cooler end)

1шт.

4a

R14668

CLAMP

- tube (Transmission end)

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

10

L48868

HOSE ASSY.

HOSE - radiator to transmission. 20-1/2" long (520 mm) W26B

2шт.

11

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male. 90 degrees (W26B)

2шт.

12

REF

INSTRUCTION

RADIATOR - transmission cooling

1шт.

13

L48445

HOSE - radiator to transmission, L.H., 18.3" long (464 mm) W26LF compactor

1шт.

14

L48446

HOSE - radiator to transmission. R.H. 20.8" long (528 mm) W26LF compactor

1шт.

15

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (W26LF compactor) 90º, 3/4"-14, NPT

2шт.

19

L40108

TUBE - return, cooler to transmission 1" OD

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

49789

CLAMP

- tube

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

24

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

- 90 degrees swivel (Transmission to filter hose)

1шт.

25

L47167

HOSE ASSY.

HOSE - transmission to filter. 22-1/2" long (571 mm), Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

27

L47141

NO LONGER SERVICED

FILTER ASSEMBLY - transmission oil, Includes: Ref. 28 - 35

1шт.

28

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

29

A60765

CAP

- filter case

1шт.

A61234

HYDRAULIC OIL FILTER

ELEMENT KIT - transmission oil filter, Includes: Ref. 30 - 35

1шт.

30

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, filter cap

1шт.

31

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Cap seal

1шт.

31a

NSS

NOT SOLD SEPARAT

ELEMENT - transmission oil filter

1шт.

32

D31212

SPRING

- relief valve

1шт.

33

D37207

VALVE

- relief

1шт.

35

A60767

BODY

CASE - oil filter

1шт.

36

D31217

BRACKET

- filter mounting

1шт.

37

75-544

SCREW - machine, round head (5/16" - 18 NC x 2-3/4")

2шт.

38

92-5

LOCK WASHER,5/16"

2шт.

39

92-105

NUT - hex. (5/16" - 18 NC)

2шт.

40

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Rear mounting)

2шт.

44

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam (3/8" - 16 NC)

2шт.

45

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, male (Filter to hose), Incl. Ref. 46 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

47

L47168

HOSE ASSY.

HOSE - return, filter to transmission. 24-7/8" long (632 mm)

1шт.

48

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, swivel (Return hose to transmission) 90º, 3/4"-14, NPT

1шт.

49

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducer (1" pipe to 3/4" pipe)

1шт.
