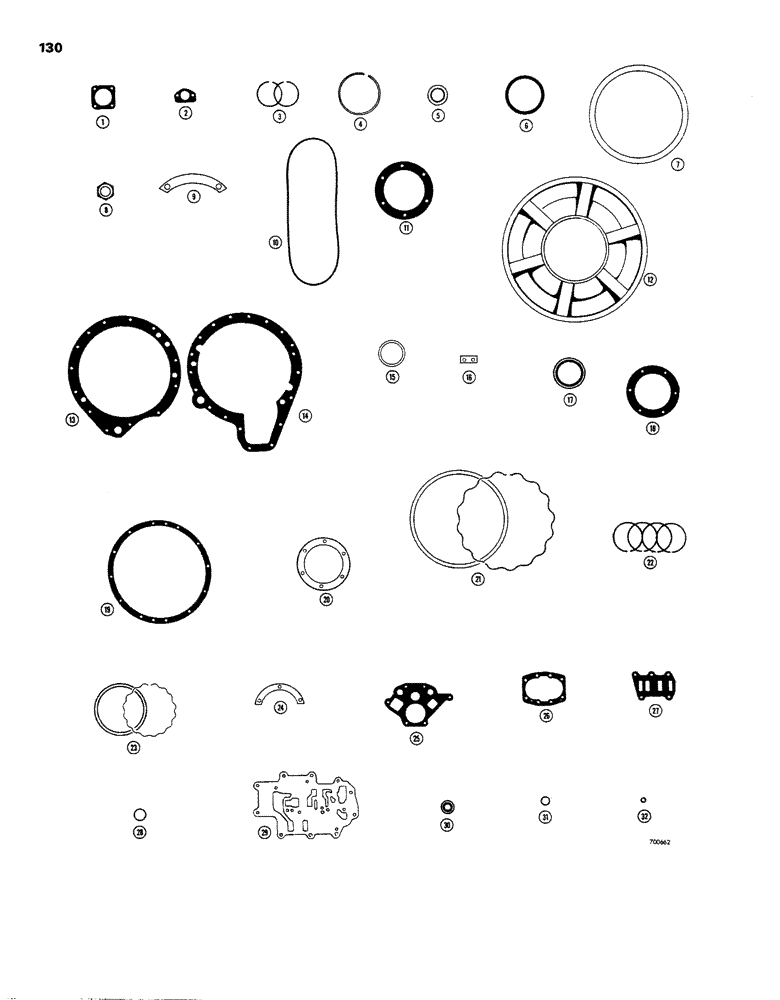

Запчасти Case W26B (130) - TRANSMISSION OVERHAUL SEAL AND GASKET KIT (06) - POWER TRAIN

L32874

KIT

- transmission overhaul, Includes: Ref. 1 - 32

1шт.

1

D71430

GASKET

- valve cover

1шт.

2

A12820

GASKET

- flange to converter housing

1шт.

3

L32793

SEAL

- ring, hook type

2шт.

4

A12841

SEAL

- ring, hook type

1шт.

5

A13262

SEAL

- oil, lip type

1шт.

6

A13255

O-RING

SEAL - "O" ring, bearing retainer

1шт.

7

A16645

SEALING RING

- drive ring

1шт.

8

131-308

LOCK

NUT - hex, lock (5/16" - 24 NF)

24шт.

9

L30295

LOCKING PLATE

LOCKSTRIP - bolt

3шт.

10

A12674

RING

SEAL - converter, square type

1шт.

11

D65162

GASKET

-, Serial Range: gear-pump

1шт.

12

L34000

DIAPHRAGM

AND SEAL ASSEMBLY - converter

1шт.

13

A12716

GASKET

- converter housing to transmission housing

1шт.

14

A12724

GASKET

- transfer housing to converter housing

1шт.

15

L32809

GASKET

-, Serial Range: screen-cover

1шт.

16

A12736

LOCKING PLATE

- locking, bolt

4шт.

17

A12675

GASKET

SEAL - oil, lip type

2шт.

18

A12726

GASKET

- bearing retainer to transfer housing

1шт.

19

A12723

GASKET

- cover

1шт.

20

A16976

GASKET

- bearing retainer to transfer gear housing

1шт.

21

A40021

KIT

SEAL AND EXPANDER KIT - clutch piston, outer

4шт.

22

A12730

RING

SEAL RING - hook type

4шт.

23

A40023

SEAL

AND EXPANDER KIT - clutch piston, inner

3шт.

24

A12708

RETAINER - bearing

2шт.

25

A12696

GASKET

- pump body to converter housing

1шт.

26

A12752

RIGID TUBE

GASKET - pump, Serial Range: cover-housing

1шт.

27

A12720

GASKET

- regulator valve to torque converter housing

1шт.

28

A12651

GASKET - plug

2шт.

29

A16987

GASKET

- valve body to transmission housing

1шт.

30

A12660

SEAL

- oil, forward and reverse spool

2шт.

31

A12649

GASKET

- retainer

1шт.

32

A12666

O-RING,0.359" ID x 0.73"

SEAL - "O" ring

1шт.
