Запчасти Case W24C (194) - L48888 FLOW CONTROL VALVE (05) - STEERING

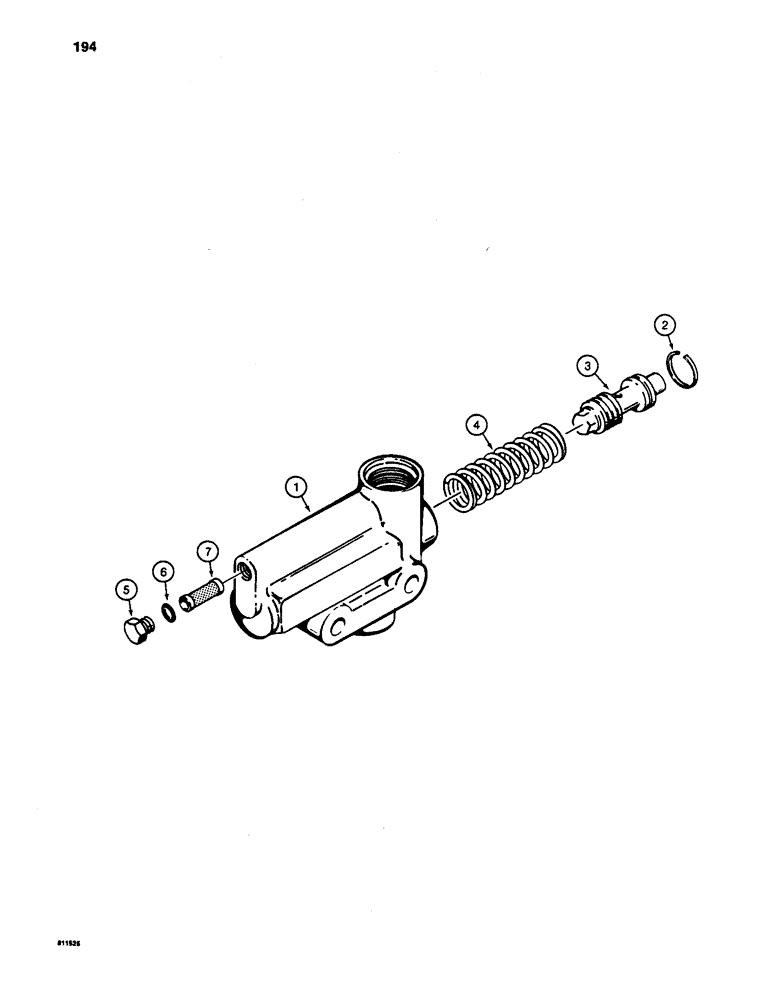

Схема запчастей Case W24C - (194) - L48888 FLOW CONTROL VALVE (05) - STEERING

Артикул

Название

Примечание

Количество

L48888

FLOW DIVIDER

VALVE - flow control, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - flow control valve

1шт.

2

D46214

CIRCLIP

SNAP RING - spool retaining

1шт.

3

L35277

SPOOL

- flow control valve

1шт.

4

D46216

SPRING

- spool

1шт.

5

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Filter access, Includes Ref. 6 Hex Hd, 3/8"-24 ORB

1шт.

6

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

7

L33959

FILTER, ENGINE OIL

SCREEN - filter

1шт.

Выбрано товаров: 8
