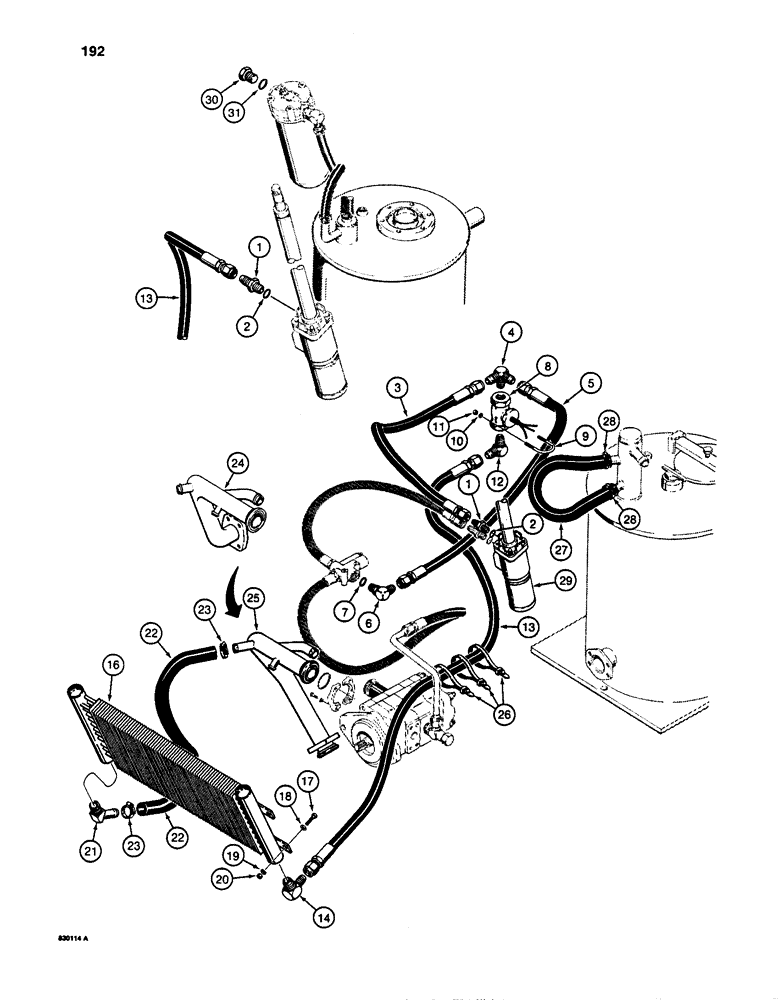

Запчасти Case W24C (192) - HUDRAULIC OIL COOLER WITH AUXILIARY STEERING, FOR TRACTORS (05) - STEERING

1

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Includes: Ref. 2

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

3

S400833

HOSE

- steering valve to switch, 18" (457 mm) long

1шт.

4

L108888

TEE

- steering switch

1шт.

5

L55004

HOSE

- steering switch to flow control valve, 29-5/16" (744 mm) long

1шт.

6

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

8

L58400

PRESSURE SWITCH

SWITCH - flow control

1шт.

9

L59832

U-BOLT

- switch mounting

1шт.

10

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

11

131-350

LOCK NUT,1/4"-20, GA

NUT - self-locking, 1/4"

2шт.

12

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree

1шт.

13

L108734

HOSE - steering, Serial Range: valve-cooler

1шт.

14

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree

1шт.

16

L107484

COOLER

OIL COOLER - hydraulic

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

21

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 45 degree

1шт.

22

L55956

HOSE,1.00" ID x 18.00", SAE 100R3

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

24

L113018

MANIFOLD

TUBE - suction, used on tractor SN 9152629 and after

1шт.

25

L110745

MANIFOLD

TUBE - suction, used before tractor SN 9152629

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

27

R21518

LARGE HOSE

HOSE - 3/4" (19 mm) ID x 12" (305 mm) long

1шт.

28

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

29

REF

INSTRUCTION

CONTROL VALVE - steering, see figure 174 or 176 for the correct assembly and components

1шт.

30

273916

PLUG,Hex, 1-5/16" - 12 ORB

Filter, Special parts for tractors with external hydraulic oil filter in front chassis, Includes Ref. 31 Hex Hd, 1 5/16"-12 ORB

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, special parts for tractors with external hydraulic oil filter in front chassis

1шт.
