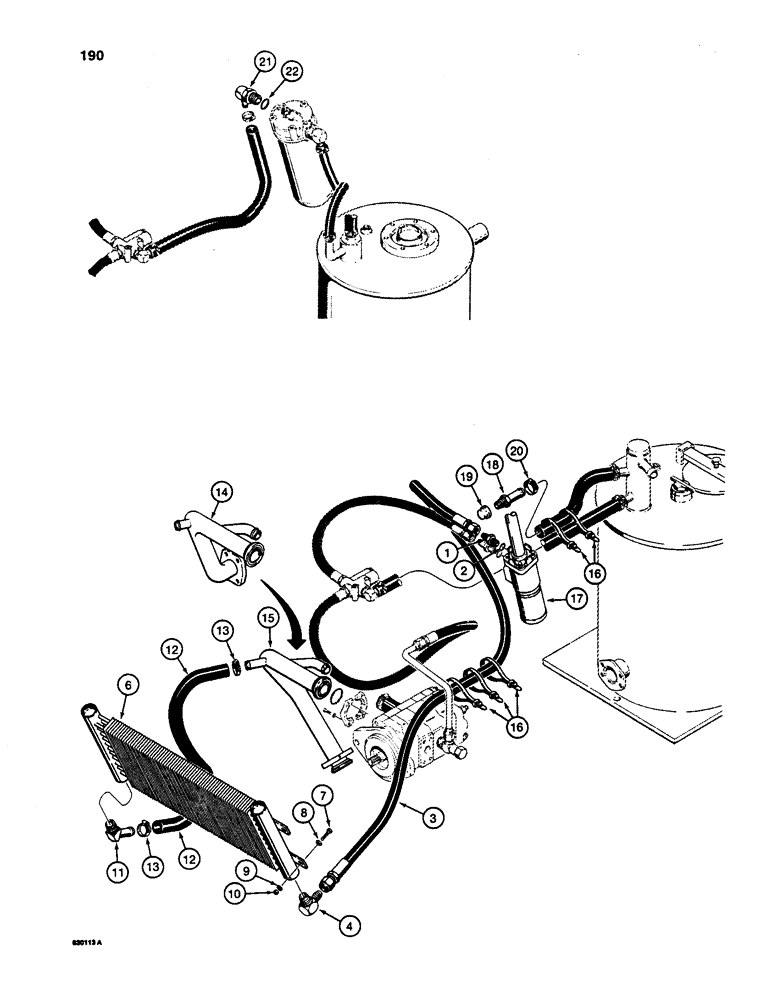

Запчасти Case W24C (190) - HYDRAULIC OIL COOLER WITHOUT AUXILIARY STEERING (05) - STEERING

1

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Includes: Ref. 2

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

3

L108734

HOSE - steering, Serial Range: valve-cooler

1шт.

4

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree

1шт.

6

L107484

COOLER

OIL COOLER - hydraulic

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

11

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 45 degree

1шт.

12

L70286

HOSE,1.00" ID x 18.00"

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

14

L111423

MANIFOLD

TUBE - suction, used on tractor SN 9152629 and after

1шт.

15

L109733

TUBE - suction, used before tractor SN 9152629

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.

17

REF

INSTRUCTION

CONROL VALVE - steering, see figure 174 or 176 for the correct assembly and components

1шт.

18

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

ADAPTER - straight, special parts for tractors with filter inside hydraulic oil reservoir

1шт.

19

221-526

CAP

- adapter, special parts for tractors with filter inside hydraulic oil reservoir

1шт.

20

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

special parts for tractors with filter inside hydraulic oil reservoir #24, 1.06/2.00 Type F Worm

1шт.

21

217-362

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, special parts for tractors with external hydraulic oil filter in front chassis, Includes: Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow, special parts for tractors with external hydraulic oil filter in front chassis

1шт.
