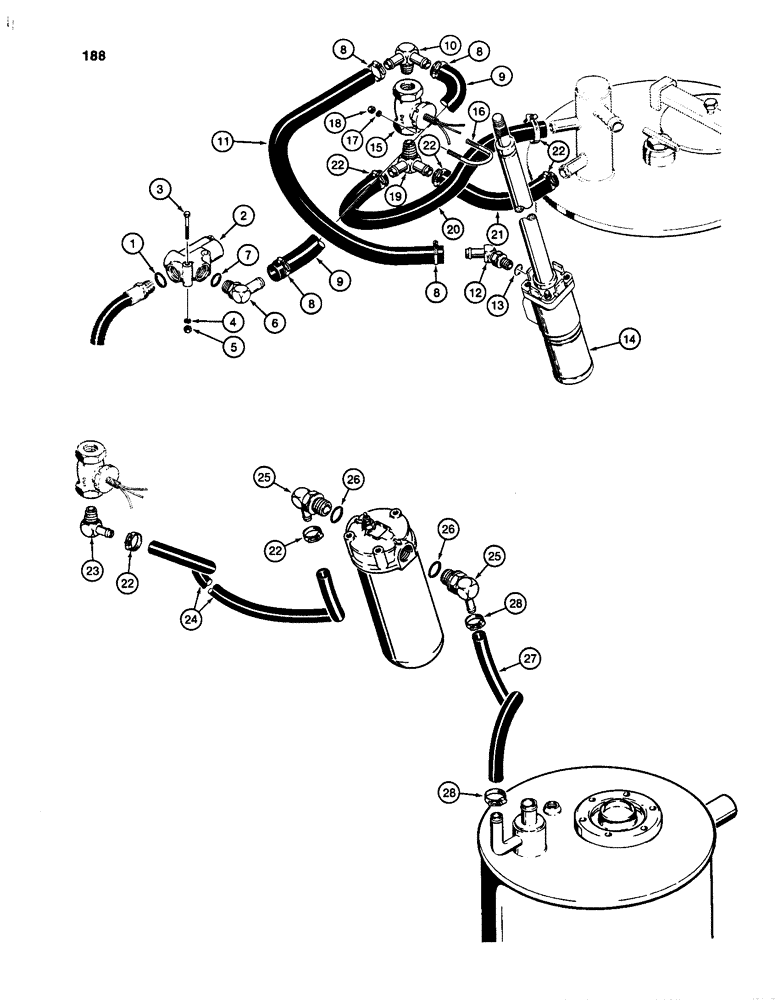

Запчасти Case W24C (188) - AUXULIARY STEERING HYDRAULIC CIRCUIT, FLOW CONTROL VALVE TO RESERVOIR (05) - STEERING

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

2

L48888

FLOW DIVIDER

VALVE - flow control, parts list figure 194

1шт.

3

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM FITTING - 90 degree, Includes: Ref. 7

1шт.

8

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

9

D64064

LARGE HOSE

HOSE - 27" (686 mm) long

1шт.

10

D59868

ELBOW UNION

FITTING - hose stem

1шт.

11

L53571

HOSE ASSY.

HOSE - 16" (406 mm) long x 3/4" (19 mm) ID

1шт.

12

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 45 degree, Includes: Ref. 13

1шт.

14

REF

INSTRUCTION

VALVE - steering, see figures 174 or 176 for correct assembly and components

1шт.

15

L58400

PRESSURE SWITCH

SWITCH - flow control

1шт.

16

L59832

U-BOLT

- 1/4" - 20 NC

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

2шт.

19

D59868

ELBOW UNION

FITTING - hose stem, special parts for tractors with filter inside hydraulic oil reservoir

1шт.

20

D64774

LARGE HOSE

HOSE - 27" (686 mm) long x 3/4" (19 mm) ID, if used, special parts for tractors with filter inside hydraulic oil reservoir

1шт.

21

R21518

LARGE HOSE

HOSE - 12" (305 mm) long x 3/4" (19 mm) ID, if used, special parts for tractors with filter inside hydraulic oil reservoir

1шт.

22

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

special parts for tractors with filter inside hydraulic oil reservoir #16, 0.81/1.50 Type F Worm

2-4шт.

23

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, if used, special parts for tractors with external hydraulic oil filter in front chassis

1шт.

24

D21237

LARGE HOSE

HOSE - 22" (559 mm) long x 1" (25 mm) ID, if used, if used, special parts for tractors with external hydraulic oil filter in front chassis

1шт.

25

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - 90 degree, if used, if used, special parts for tractors with external hydraulic oil filter in front chassis, Includes: Ref. 26

2шт.

26

217-5010

O-RING - stem fitting, if used, special parts for tractors with external hydraulic oil filter in front chassis

1шт.

27

D36798

HOSE

- filter to hydraulic reservoir, 10-5/8" (270 mm) long x 1" (25 mm) ID, if used, special parts for tractors with external hydraulic oil filter in front chassis

1шт.

28

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

if used, special parts for tractors with external hydraulic oil filter in front chassis #24, 1.06/2.00 Type F Worm

2шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- stem fitting

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- stem fitting

1шт.
