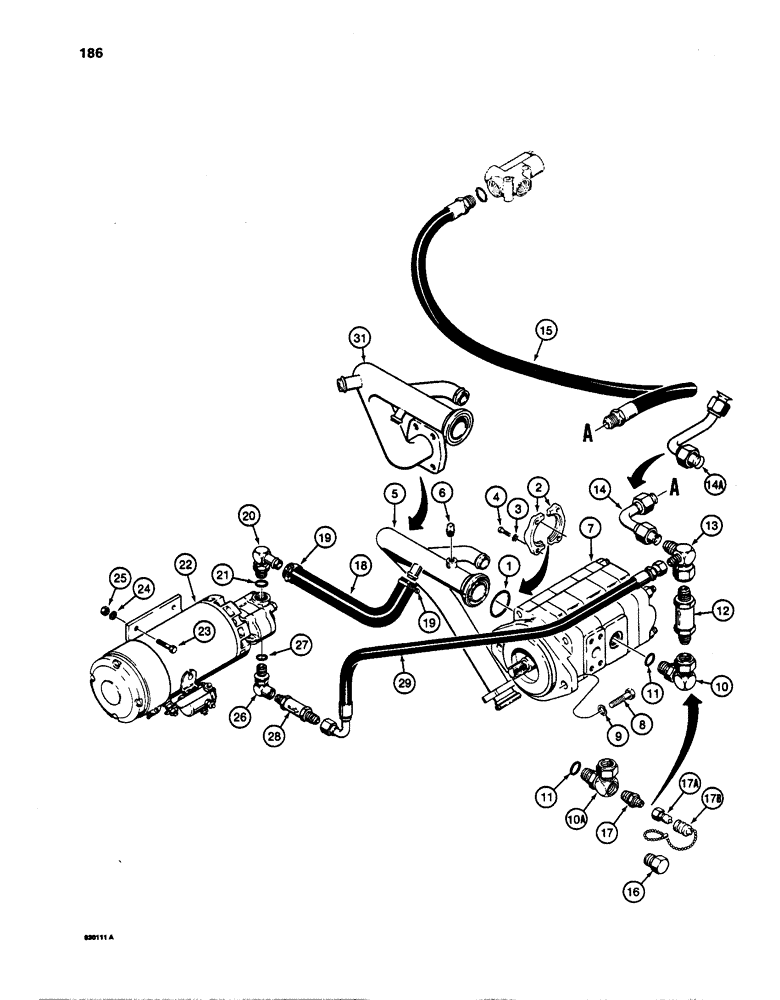

Запчасти Case W24C (186) - AUXULIARY STEERING HYDRAULIC CIRCUIT, PUMP TO FLOW CONTROL VALVE (05) - STEERING

1

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

0-RING - flange

1шт.

2

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

L59314

MANIFOLD

- pump inlet, used before tractor SN 9148989

1шт.

6

221-12

PLUG,Sq Hd, 1/4"-18

- spuare head, 1/4" NPT, used with Ref. 5, L59314 manifold

1шт.

7

L71667

PUMP

- hydraulic, parts list figure 204

1шт.

8

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

L59310

ELBOW UNION

ELBOW - special, no test port, use L100939 fitting and 221-655 plug

1шт.

10a

L100939

FITTING

- special, has test port, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

0-RING - fitting, included with Refs. 10 and 10A

1шт.

12

L58391

VALVE

- check

1шт.

13

L59313

FITTING

- check valve to pressure tube

1шт.

14

L59098

TUBE,0.75" OD x 4.13, 3.56" L

- pump to flow divider valve, used before tractor SN 9148989

1шт.

14a

L109728

TUBE - pump to flow divider 0.75" OD

1шт.

15

L51827

HOSE

- 29-1/2" (749 mm) long

1шт.

16

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 1/4" NPT, if used

1шт.

17

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

FITTING - straight

1шт.

17a

S206607

DISC

COUPLING - male

1шт.

17b

S206608

CAP

- dust

1шт.

18

L45481

- 12-1/2" (318 mm) long x 3/4" (19 mm) ID

1шт.

19

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

20

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM FITTING - 90 degree

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting

1шт.

22

L70813

HYDRAULIC STEERING

PUMP - auxiliary steering, parts list figure 198

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

26

218-5460

FITTING

ELBOW - 90 degree, Includes: Ref. 27

1шт.

28

L70819

VALVE

- check

1шт.

29

L59315

HOSE

- auxiliary pump to flow divider

1шт.

30

L110745

MANIFOLD

- pump inlet, used on tractor SN 914898 - SN 9152628, not shown

1шт.

31

L113018

MANIFOLD

- pump inlet, used on tractor SN 9152629 and after

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
