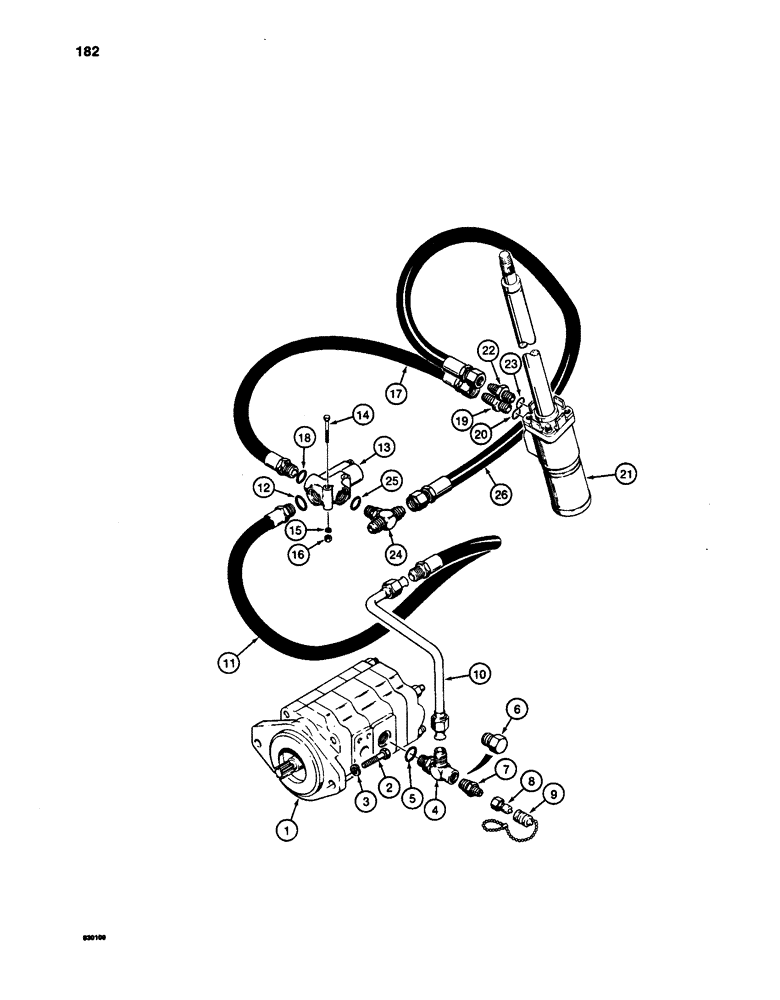

Запчасти Case W24C (182) - STEERING HYDRAULIC CIRCUIT - PUMP TO CONTROL VALVE, MODELS WITHOUT AUXILIARY STEERING (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
L71667
PUMP
- hydraulic, parts list figure 204
1шт.
2
113-604
BOLT,Hex, 5/8" - 11 x 2", Gr 5
2шт.
4
L53012
TEE
- check, steering, Includes: Ref. 5
1шт.
5
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- tee
1шт.
6
221-665
PLUG,Hex Hd, 3/4"-14
- hex head, 3/4", if used
1шт.
7
217-1092
HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF
CONNECTOR - straight, if used
1шт.
8
S206607
DISC
COUPLING - male, if used
1шт.
9
S206608
CAP
- dust, if used
1шт.
10
L52011
TUBE,0.75" OD
- hydraulic pump to flow contol valve
1шт.
11
L51827
HOSE
- pump to flow contol valve, 29-1/2" (749 mm) long
1шт.
12
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- hose to flow control valve
1шт.
13
L48888
FLOW DIVIDER
VALVE - flow control, parts list figure 194
1шт.
14
113-110
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Hex, 5/16"-18 x 2 1/4", G5
2шт.
15
92-5
LOCK WASHER,5/16"
2шт.
16
9635082
NUT,5/16" - 18, Gr 5
2шт.
17
L51826
HOSE
- flow control valve to steering valve, 26-1/2" (673 mm) long
1шт.
18
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- hose to flow control valve
1шт.
19
218-5066
HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB
CONNECTOR, HYD., , straight, Incl. Ref. 20 7/8"-14, 37º x 3/4"-16, O-Ring
1шт.
21
REF
INSTRUCTION
VALVE - steering, see figure 174 or 176 for the correct assembly and components
1шт.
22
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR - straight, Incl. Ref 23
1шт.
24
218-5503
TEE,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring Br
- return, Includes: Ref. 25
1шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- tee
1шт.
26
L109618
HOSE - return, steering
1шт.
20
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- connector
1шт.
23
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- connector
1шт.
Выбрано товаров: 26
