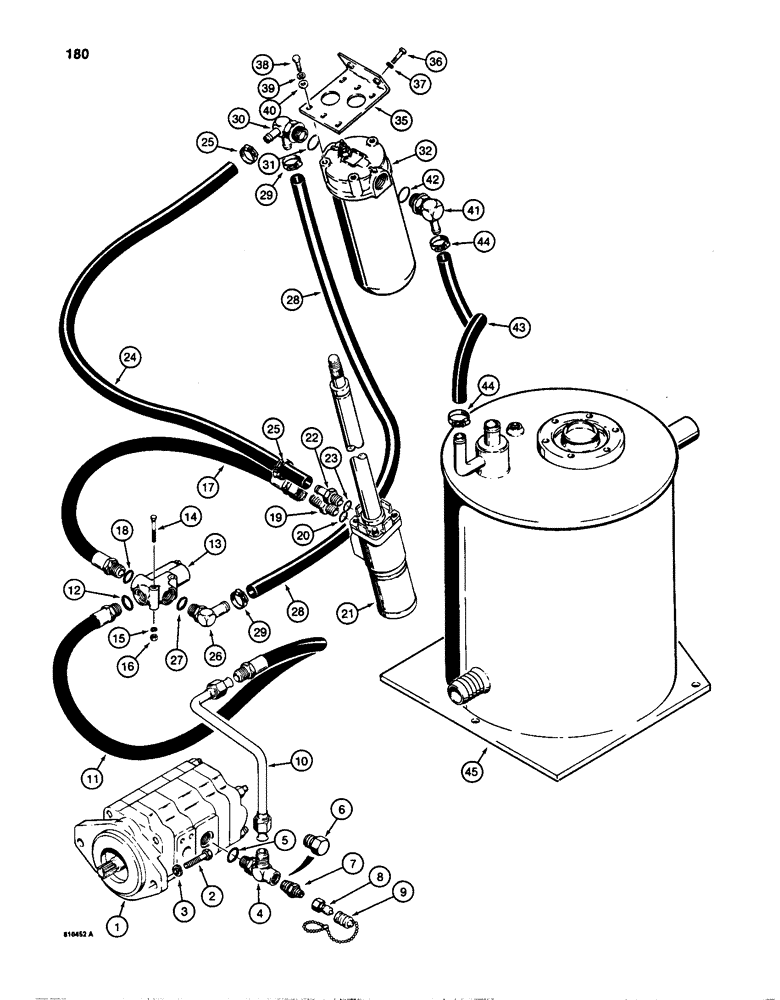

Запчасти Case W24C (180) - STEERING HYDRAULIC CIRCUITS - PUMP TO RESERVOIR, MODELS WITHOUT AUXILIARY STEERING (05) - STEERING

1

L71667

PUMP

- hydraulic, parts list figure 204

1шт.

2

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

L53012

TEE

- check, steering, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

6

221-665

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4", if used

1шт.

7

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight, if used

1шт.

8

S206607

DISC

COUPLING - male, if used

1шт.

9

S206608

CAP

- dust, if used

1шт.

10

L52011

TUBE,0.75" OD

- hydraulic pump to flow control valve

1шт.

11

L51827

HOSE

- pump to flow control valve, 29-1/2" (749 mm) long

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose to flow control valve

1шт.

13

L48888

FLOW DIVIDER

VALVE - flow control, parts list figure 182

1шт.

14

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

L51826

HOSE

- flow control valve to steering valve, 26-1/2" (673 mm) long

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose to flow control valve

1шт.

19

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 20 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

21

REF

INSTRUCTION

VALVE - steering, see figure 174 or 176 for the correct assembly and components

1шт.

22

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, Includes: Ref. 23

1шт.

24

L53571

HOSE ASSY.

HOSE - steering valve to filter, 3/4" (19 mm) ID x 16" (406 mm) long

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

26

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

STEM FITTING - elbow, 90 degree, Includes: Ref. 27

1шт.

28

D65487

HOSE,0.75" ID x 30.00"

Return, Steering 0.75" ID x 30.00"

1шт.

29

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

30

L106644

FITTING

TEE - special, Includes: Ref. 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

32

L114122

FILTER

- return, parts list figure 196

1шт.

35

L106445

BRACKET

- filter

1шт.

36

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

39

92-6

LOCK WASHER,3/8"

3шт.

40

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

41

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - elbow, 90 degree, Includes: Ref. 42

1шт.

42

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

43

D36798

HOSE

- filter to hydraulic reservoir

1шт.

44

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

45

L106705

RESERVOIR - hydraulic, parts list figure 354

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- stem fitting

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- stem fitting

1шт.
