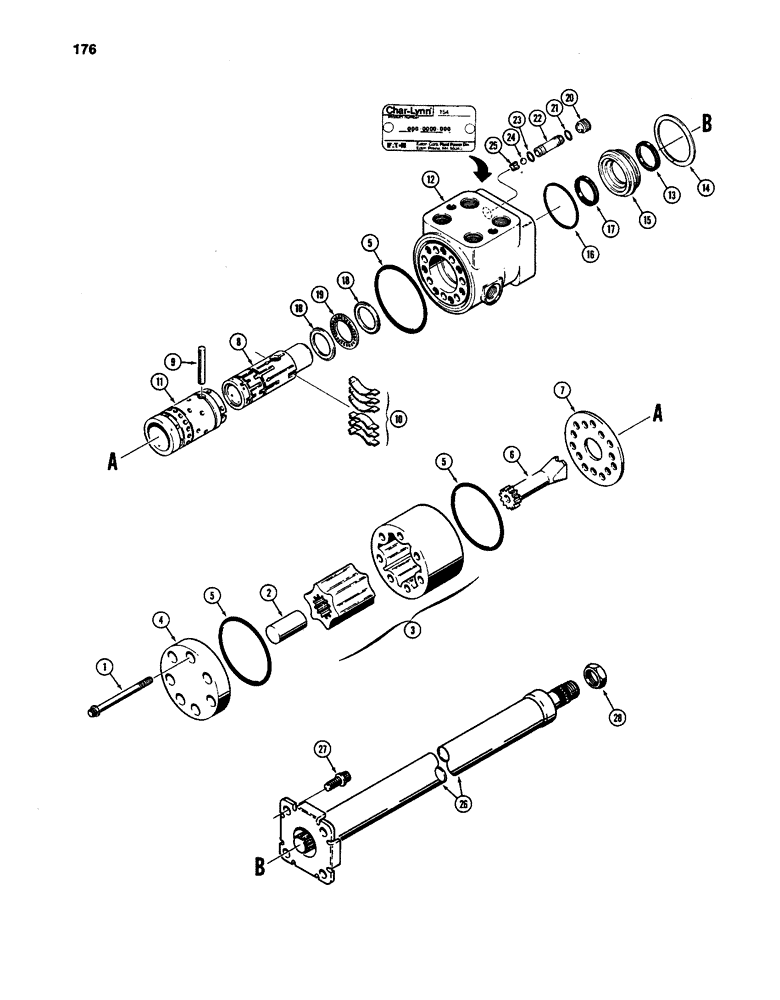

Запчасти Case W24C (176) - L79644 STEERING CONTROL VALVE AND COLUMN (05) - STEERING

L79644

GEAR WHEEL

VALVE AND COLUMN - steering, Char-Lynn No. 214-1087-001, Includes: Ref. 1 - 27

1шт.

D83214

CONTROL

VALVE ASSEMBLY, 30 cu. in. displacement, used as a service replacement in L79425 steering control valve only, see Figure 174, Includes: Ref. 1 - 25

1шт.

D83214 valve assembly is a service item to replace original production valve assembly L35547 described on Figure 174.

1шт.

D83218

GEAR

VALVE ASSEMBLY, 48 cu. in. displacement, used with L79644 steering control valve, Includes: Ref. 1 - 25

1шт.

1

166-537

12 PT SCREW,Flg, 5/16" - 24 x 3 1/2", Gr 8

BOLT - 12 pt. head, 5/16" - 24 NF x 3-1/2", used with D83214

7шт.

1

D51217

BOLT,5/16" x 3 1/2"

- 12 pt. head, 5/16" - 24 NF x 3", used with D83218

7шт.

2

D83217

SPACER

- used with D83214

1шт.

2

D83220

SPACER

- used with D83218

1шт.

3

D83216

WHEEL GEAR

GEROTOR SET - used with D83214

1шт.

3

D83219

ROTOR

GEROTOR SET - used with D83218

1шт.

4

D82809

COVER

CAP - end

1шт.

5

C13965

SEAL

O-RING - order S5633

3шт.

Part of Seal Kit P/N D82802

1шт.

6

L30878

DRIVE SHAFT

SHAFT - drive

1шт.

7

S113037

PLATE

- spacer

1шт.

D83215

BODY

CONTOL ASSEMBLY - valve, Includes: Ref. 8 - 25

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

9

L30888

PIN

- centering

1шт.

10

L30889

SPRING

- centering

6шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

13

A28211

OIL SEAL

OIL SEAL - valve

1шт.

Part of Seal Kit P/N D82802

1шт.

14

S110169

WASHER

RETAINING RING - bushing

1шт.

15

S110170

BUSHING

- seal

1шт.

16

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - O-ring

1шт.

Part of Seal Kit P/N D82802

1шт.

17

A72029

RING

SEAL - quad ring

1шт.

Part of Seal Kit P/N D82802

1шт.

18

D82804

RACE

THRUST WASHER - bearing

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

20

D82805

SET SCREW

SET SCREW - special

1шт.

21

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

SEAL - 0-ring

1шт.

Part of Seal Kit P/N D82802

1шт.

22

D82806

VALVE SEAT

SPOOL - valve

1шт.

23

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - O-ring, 7/16 x 5/16 x 1/16 in

1шт.

Part of Seal Kit P/N D82802

1шт.

24

211-9

BALL,5/16" Dia

-check

1шт.

25

L35368

RETAINER

- ball

1шт.

26

D80622

STEERING COLUMN

COLUMN ASSEMBLY - steering

1шт.

26

S237336

STEERING COLUMN

COLUMN ASSEMBLY - order D80622

1шт.

27

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3/4/"

2шт.

28

L33715

JAM NUT

- steering wheel

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Refs. 5, 13, 16, 17, 21 and 23

1шт.
