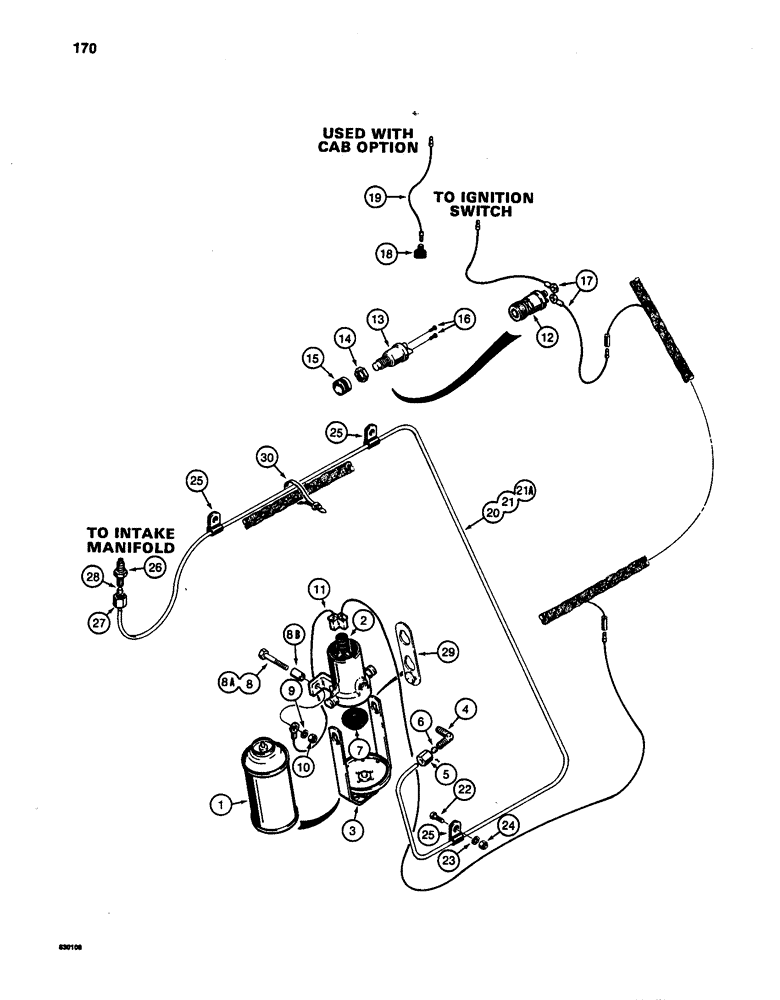

Запчасти Case W24C (170) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

B17072

START SPRAY FLUID

CONTAINER - ether

1шт.

L73025

STARTING MOTOR

SOLENOID ASSEMBLY - 24V, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

3

D77648

BAIL

- container

1шт.

A44809

FITTING

- 90 degree, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

11шт.

5

222-110

TUBE NUT,3/8"-24

NUT - COMPRESSION

1шт.

6

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

7

R30786

GASKET

- solenoid

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used when solenoid is mounted to front left-hand hood post Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

8a

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4", used when solenoid is mounted on left-hand side of hood

1шт.

8b

D36040

BUSHING

SPACER - used with 13-528 bolt

1шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

11

L73023

ELECTRICAL WIRE

WIRE - jumper

1шт.

12

L72776

SWITCH

- push button, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

14

D73741

NUT

- hex, special

1шт.

15

H275784

JAM NUT

- special

1шт.

16

173-93

BOLT,Sl Rnd Hd, #10 - 24 x 1/4"

SCREW - round head, No.10 - 32 NF x 1/4"

2шт.

17

A18112

ELECTRICAL WIRE

WIRE - jumper

2шт.

18

A8210

CONNECTOR, ELEC

CONNECTOR - electrical, 3-way, if used

1шт.

19

L58674

ELECTRICAL WIRE

WIRE - jumper, if used

1шт.

20

D35090

TUBE

- nylon, 57" (1448 mm) long, uses P-clamp and hardware, used when solenoid is mounted to front left-hand hood post

1шт.

21

L16688

TUBE,0.078" ID x 0.125" OD x 32" L

- nylon, 32" (813 mm) long used whed solenoid is mounted to front left-hand hood post

1шт.

21a

D41644

TUBE

- nylon, 12" (305 mm) long, used when solenoid is mounted to left-hand side of hood

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex 3/8" - 16 NC

2шт.

25

49853

TOOL

- P-style, used with D35090 tube

3шт.

L73024

NOZZLE CAP

NOZZLE ASSEMBLY - cold start, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

27

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

28

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

29

R30812

LINK

- bail

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.
