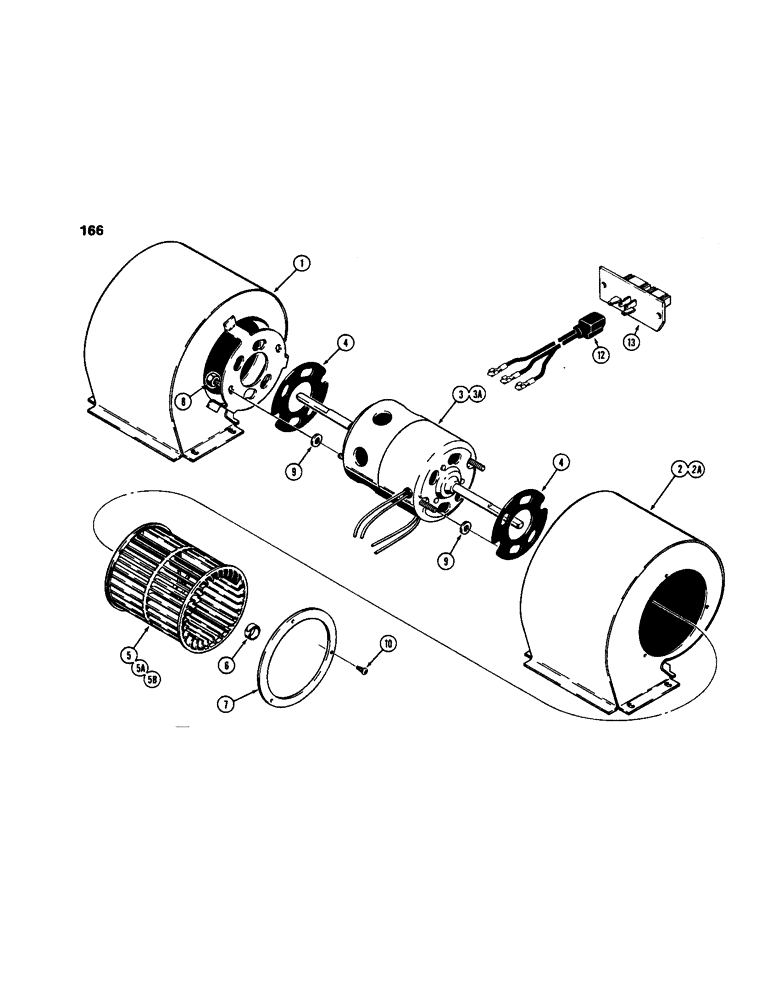

Запчасти Case W24C (166) - BLOWER AND FRONT WIPER MOTOR, D71529 BLOWER (04) - ELECTRICAL SYSTEMS

N8623

HEATER

BLOWER ASSEMBLY - cab, SGM 6009-24V-LP, Includes: Ref. 1 - 11

1шт.

D71529

HEATER

BLOWER ASSEMBLY - cab, identified as Hupp No. 63462-G4, Includes: Ref. 1 - 11

1шт.

D87193

BLOWER ASSEMBLY - cab, no identification, uses Leece-Neville motor No.F001-7411-FB-date, order N8923, not shown, Includes: Ref. 1 - 11

1шт.

1

D72757

HOUSING

- D1529 blower, left-hand

1шт.

2

D72758

HOUSING

- D71529 blower, right-hand

1шт.

2a

NSS

NOT SOLD SEPARAT

HOUSING - D87193 blower, not shown

1шт.

3

D72759

MOTOR, ELECTRIC

MOTOR - D71529 blower, 24V

1шт.

3a

D87192

MOTOR

- D87193 blower, 24V, identified as Leece-Neville No. F001-7411-FB-date

1шт.

4

D72760

GASKET

- motor

2шт.

5

D72761

FAN

- D71529 blower

2шт.

5a

D87190

BLOWER,Fan, clockwise rotation

FAN - D87193 and N8623 blower, clockwise rotation

1шт.

5b

D87191

WHEEL

FAN - D87193 and N8623 blower, counterclockwise rotation

1шт.

6

D72762

HOSE CLAMP

CLIP - ring, fan retaining

2шт.

7

D72763

RING

- inlet

2шт.

8

129-37

NUT,#10-32

4шт.

9

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

10

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- self-tapping, No. 6

6шт.

11

N8624

MOTOR

- N8623 blower, not shown

1шт.

12

N8625

RESISTOR

- motor, N8623 blower

1шт.

Ref. 12 and 13 - In the Artwork, these numbers should be reversed. The resistor should be No.12, The harness should be No.13

1шт.

13

N8626

HARNESS

- motor, N8623 blower

1шт.

L35259

WIPER MOTOR

MOTOR - wiper, front, bullet connectors, use F93654 motor and N7016 jumper wire

1шт.

F93654

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, Includes: Ref. 1 - 3

1шт.
