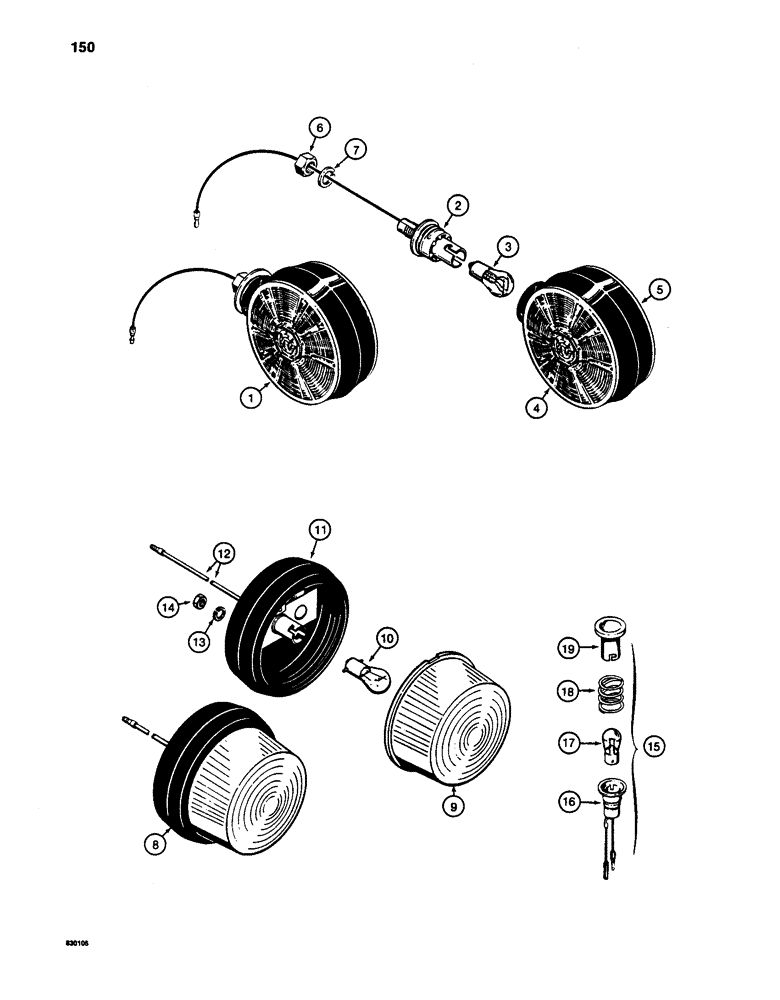

Запчасти Case W24C (150) - LAMPS, STOP AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

1

L59897

LAMP

- stop and tail, Hobbs, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp

1шт.

3

A15084

LAMP

BULB - 24V, No. 1683

1шт.

4

D82778

LENS

- red

1шт.

5

D82779

LENS

- black

1шт.

6

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

L13304

LAMP BASE

LAMP - stop and tail, used on early models, mounted outside of rear chassis, Includes: Ref. 9 - 14

2шт.

9

L31185

LIGHT FAIRING

LENS - lamp

1шт.

10

A15084

LAMP

BULB - 24V, No. 1683

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - lamp

1шт.

12

L31186

ELECTRICAL WIRE

WIRE - lamp

1шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

15

L55349

LAMP

ASSEMBLY - water temperature indicator, if used, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

SOCKET - lamp, water temperature indicator

1шт.

17

L36001

BULB

- lamp, No. 303R, water temperature indicator

1шт.

18

L30505

VALVE SPRING

SPRING - lamp, water temperature indicator

1шт.

19

L36002

LENS

AND HOUSING - lamp, water temperature indicator

1шт.
