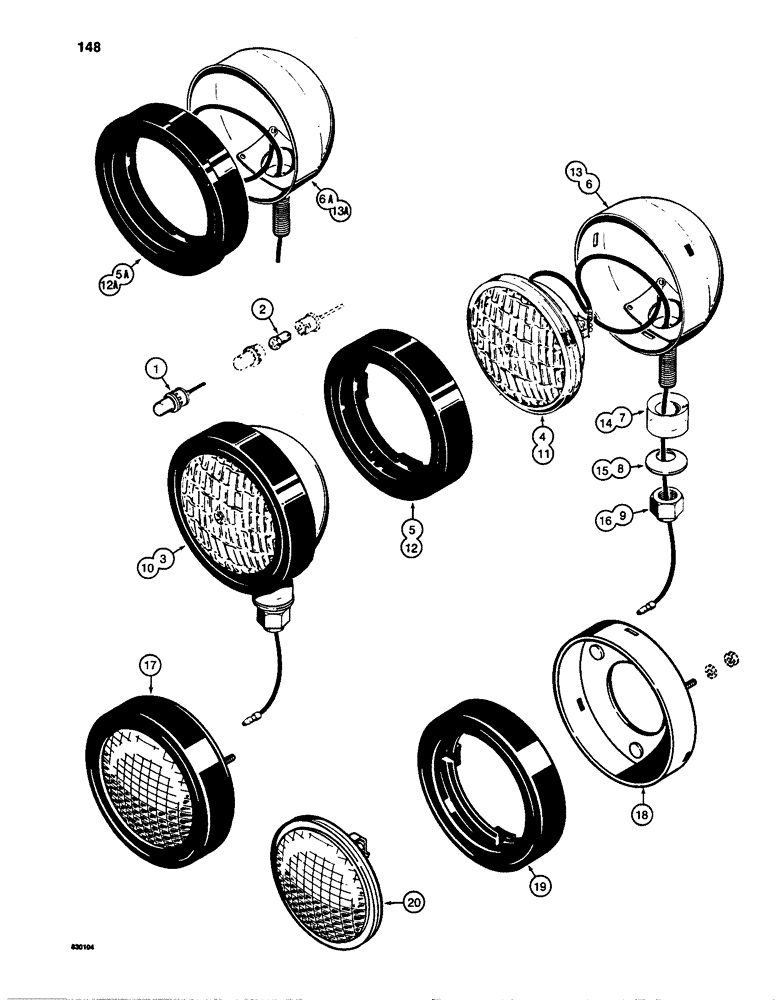

Запчасти Case W24C (148) - LAMPS, INSTRUMENT PANEL LAMP (04) - ELECTRICAL SYSTEMS

1

L105210

LIGHT

LAMP ASSEMBLY - instrument panel, 12 volt, if used

2шт.

2

A22349

BULB

- 12V, No. 363

1шт.

3

L105757

LAMP

ASSEMBLY - front, 24 volt, see Ref. 5A for identification, Includes: Ref. 4 - 9

2шт.

3

L71729

LAMP

ASSEMBLY - front, 24 volt, interchangeable with L105757, see Ref. 5 for identification, Includes: Ref. 4 - 9

2шт.

4

A25209

LAMP

- sealed beam, No. 4880

1шт.

5

A25210

MOUNTING PARTS

RETAINER - lamp, used on L71729, locks to shell with three rubber tabs

1шт.

5a

N7473

RETAINER

- lamp, used on L105757, locks over shell flange

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL - lamp, with three rubber tab slots

1шт.

6a

NSS

NOT SOLD SEPARAT

SHELL - lamp, with flange

1шт.

7

D37048

BUSHING

- lamp pivot

1шт.

8

D37049

WASHER

- special

1шт.

9

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self-locking, 1/2" - 20 NF

1шт.

10

L105756

HEADLIGHT

LAMP ASSEMBLY - front and rear flood, 24 volt, see Ref. 12A for identification, Includes: Ref. 11 - 16

3-4шт.

10

L71730

INTERIOR LIGHT

LAMP ASSEMBLY - front and rear flood, 24 volt, interchangeable with L105756, see Ref. 12 for identification, Includes: Ref. 11 - 16

3-4шт.

11

D37920

LAMP

- sealed beam, No.4578, front and rear flood

1шт.

12

A25210

MOUNTING PARTS

RETAINER - lamp, used on L71730, locks to shell with three rubber tabs, front and rear flood

1шт.

12a

N7473

RETAINER

- lamp, used on L105756, locks over shell flange, front and rear flood

1шт.

13

NSS

NOT SOLD SEPARAT

SHELL - lamp, with three rubber tab slots, front and rear flood

1шт.

13a

NSS

NOT SOLD SEPARAT

SHELL - lamp, with flange, front and rear flood

1шт.

14

D37048

BUSHING

- lamp, front and rear flood

1шт.

15

D37049

WASHER

- special, front and rear flood lamp

1шт.

16

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self-locking, 1/2" - 20 NF, front and rear flood lamp

1шт.

17

D35909

LAMP

ASSEMBLY - rear flood, used on early models, mounted on outside of rear chassis, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

SHELL - lamp, rear flood

1шт.

19

D37966

RETAINER

- lamp, Guide Lamp, if used, rear flood

1шт.

19

A25210

MOUNTING PARTS

RETAINER - lamp, Hobbs, if used, rear flood

1шт.

20

D37920

LAMP

- sealed beam, No. 4578, rear flood

1шт.

Rectangular Halogen Lights for Cab mounted, Chassis mounted, or Rear Chassis mounted is 229487A1

1шт.
