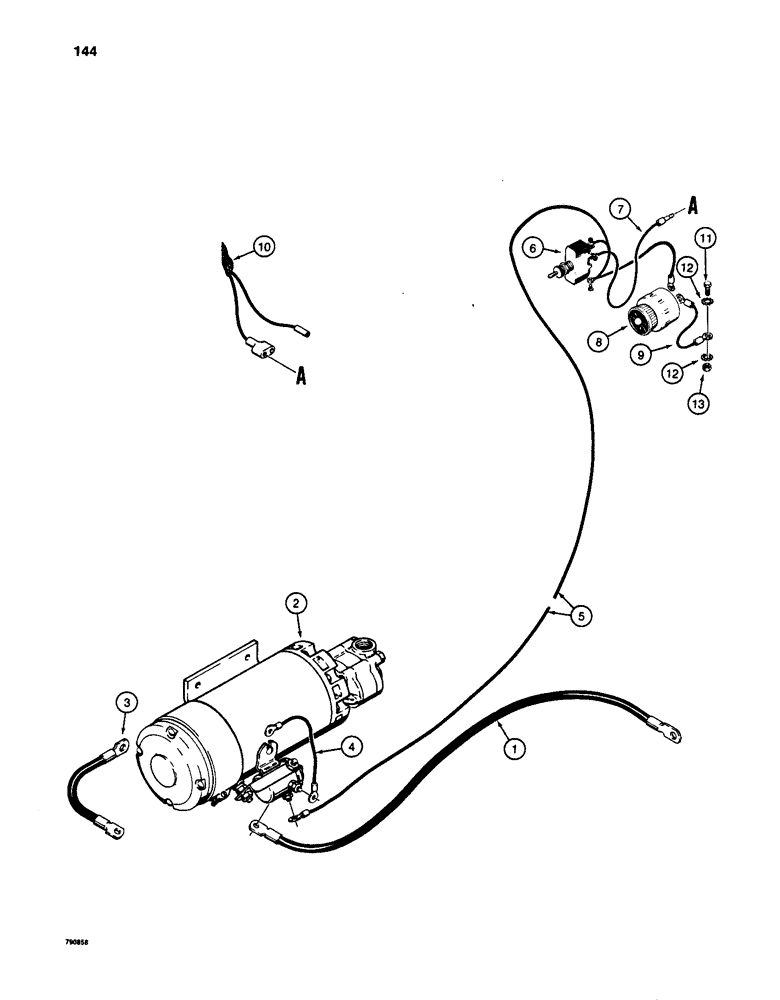

Запчасти Case W24C (144) - ELECTRICAL SYSTEM, MANUAL AUXILIARY STEERING (04) - ELECTRICAL SYSTEMS

1

L57534

CABLE

- power supply

1шт.

2

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - auxiliary steering, parts list figure 198

1шт.

3

L57536

CABLE

WIRE - ground, pump and motor

1шт.

4

A18457

ELECTRICAL WIRE

WIRE - ground, 13" (320 mm) long, services 5" (127 mm) production wire

1шт.

5

L79559

ELECTRICAL WIRE

WIRE - steering, Serial Range: motor-switch

1шт.

6

F22295

SWITCH

- steering motor

1шт.

7

L79558

ELECTRICAL WIRE

WIRE - to front harness

1шт.

8

L79560

BUZZER

LAMP AND BUZZER - auxiliary steering

1шт.

9

L59537

ELECTRICAL WIRE

WIRE - ground, lamp and buzzer

1шт.

10

REF

INSTRUCTION

HARNESS - front, see Figures 111 and 113

1шт.

11

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

1шт.
