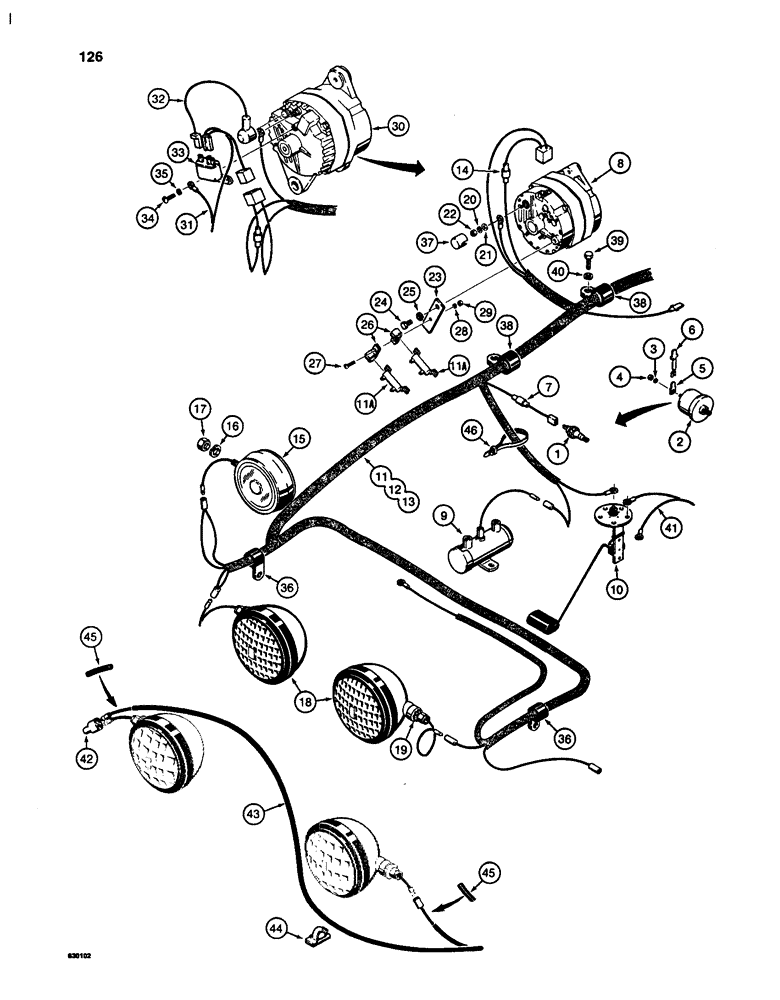

Запчасти Case W24C (126) - ELECTRICAL SYSTEM, REAR HARNESS (04) - ELECTRICAL SYSTEMS

1

A66737

SWITCH, PRESSURE

SENDER - engine oil pressure, used with L77870 harness and after

1шт.

2

A35031

SENDER UNIT

SENDER - engine oil pressure, used with L71735

1шт.

3

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

4

129-6

NUT,#8-32

1шт.

5

L59682

TERMINAL CONNECTOR

TERMINAL - flat, used with L58497 resistor

1шт.

6

L58497

RESISTOR

- 40 ohm, used with L71735 harness

1шт.

7

L73576

RESISTOR

- harness used with L77870 harness and after, Includes: Ref. 8

1шт.

8

REF

INSTRUCTION

ALTERNATOR - 40 amp, see figure 134 for related parts, see Ref. 30 for 65 amp altrnator

1шт.

9

L52634

PUMP

- fuel, parts list figure 74

1шт.

10

L110128

TRANSMITTER

SENDER - fuel gauge

1шт.

11

L71735

HARNESS

- rear, used before tractor SN 9126930, Includes: Ref. 11A

1шт.

11a

L57052

RESISTOR

- 25 ohm

2шт.

12

L77870

HARNESS

- rear, used with flood lamps on rear chassis, no longer available, order L79815 harness and (2) A55974 connectors

1шт.

12

L79815

HARNESS

- rear, used with flood lamps inside of grille and with backup alarm switch with screw type trminals, no longer available, order L110799 harness and L36238 kit listed below

1шт.

13

L110799

HARNESS

- rear, used with backup alarm switch with blade type terminals

1шт.

14

L73576

RESISTOR

- 40 ohms

1шт.

15

L59897

LAMP

- stop and tail, parts list figure 150

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-118

NUT,1/2"-20, G5

- hex, 1/2" -20 NF

1шт.

18

REF

INSTRUCTION

FLOOD LAMP - see figure 148 for correct assembly snd components

1-2шт.

19

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1-2шт.

20

492-11012

LOCK WASHER,#12

WASHER, LOCK, , If used #12

1шт.

20

892-1106

LOCK WASHER,M6

if used M6

1шт.

21

195-16

WASHER,#12

- flat, No. 12

1шт.

22

225-14112

NUT,#12-24

- hex, No. 12 - 24 NC, if used

1шт.

22

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm x 1, if used

1шт.

L36184

HARNESS

KIT - service option before tractor SN 9126945

1шт.

L79234

KIT

- receptacle, rear harness

1шт.

L79235

KIT

- plug, front harness

1шт.

L78403

BRACKET

- harness

1шт.

L36238

KIT

- electrical, includes terminals ot adapt harness ot switches

1шт.

23

L70299

BRACKET

- resistor mount

1шт.

24

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

L73415

CLAMP

- resistor

2шт.

27

173-80

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

- round head, slotted, No.8 - 32 NC x 3/4"

1шт.

28

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

29

129-6

NUT,#8-32

1шт.

30

REF

INSTRUCTION

ALTERNATOR - 65 amp, see figure 132 for related parts, see Ref. 8 for 40 amp alternator

1шт.

31

L72960

ELECTRICAL WIRE

WIRE - L72955 alternator, Serial Range: harness-relay

1шт.

32

L72959

ELECTRICAL WIRE

WIRE - L72955 alternator, Serial Range: alternator-relay

1шт.

33

L73433

RELAY

- L72955 alternator

1шт.

34

71-510

SCREW - round head, slotted, 5/16" - 18 NC x 5/8"

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

49836

CLAMP

- harness

2шт.

37

L106774

CAP

- 40 amp alternator

1шт.

38

49838

CLAMP

- harness

2шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

A31060

ELECTRICAL WIRE

WIRE - ground, fuel level sender

1шт.

42

A55974

PLUG

CONNECTOR - used with two rear flood lamps, used with L77870 harness

1шт.

43

L77065

ELECTRICAL WIRE

WIRE - right-hand flood lamp, used with L77870 harness

1шт.

44

L100659

CLIP

CLAMP - wire, used with L77870 harness and before

2шт.

45

A12458

SLEEVE

LOOM - wire used L77870 harness and before

2шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
