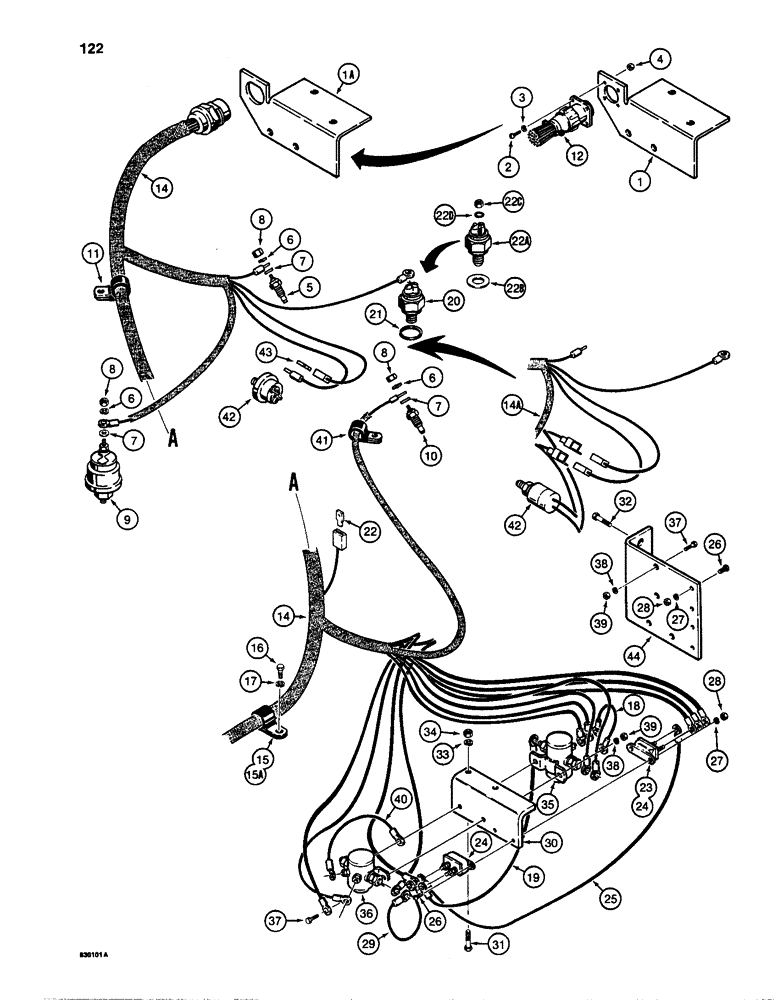

Запчасти Case W24C (122) - ELECTRICAL SYSTEM, REAR HARNESS (04) - ELECTRICAL SYSTEMS

1

L73819

BRACKET

- harness, before tractor SN 9126945

1шт.

1a

L78403

BRACKET

- harness, tractor SN 9126945 and after

1шт.

2

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- round head, No. 6 - 32 NC x 1/2", used with L73819 bracket

4шт.

3

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, , Used with L73819 bracket #6

4шт.

4

129-15

NUT,#6-32

Used with L73819 bracket #6-32

4шт.

5

L56217

UNIT

SENDER - torque converter oil temperature

1шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

7

195-12

WASHER,#10

- flat, No. 10

3шт.

8

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 24 NC

3шт.

9

L109945

TRANSMITTER

SENDER - air pressure

1шт.

10

L56217

UNIT

SENDER - water temperature

1шт.

11

49838

CLAMP

- harness

1шт.

12

L71735

HARNESS

- rear, used before tractor SN 9126930, Includes: Ref. 13

1шт.

13

L57052

RESISTOR

- 25 ohm, not shown

1шт.

14

L77870

HARNESS

- rear, used with flood lamps on rear chassis, no longer available, order L79815 harness and (2) A55974 connectors

1шт.

14

L79815

HARNESS

- rear, used with flood lamps inside of grille and with backup alarm switch with screw type terminals, no longer available, order L110799 harness and L36238 kit below

1шт.

14a

L110799

HARNESS

- rear, used with backup alarm switch with blade type terminals

1шт.

15

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- wire, used with solenoid at front of engine

1шт.

15a

49838

CLAMP

- harness, used with soleniod at center of engine

4шт.

16

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

A31060

ELECTRICAL WIRE

WIRE - solenoid to ground, if used

1шт.

19

L70955

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

20

L77962

SWITCH

- neutral start, no longer available, order Refs. 22A - 22D, Includes: Ref. 21

1шт.

21

D80515

WASHER

GASKET - aluminum

1шт.

22

L59682

TERMINAL CONNECTOR

TERMINAL - flat, used with L110799 harness

1шт.

22a

A160237

SWITCH

- neutral start

1шт.

22b

L112595

WASHER

- spacer

1шт.

22c

129-6

NUT,#8-32

2шт.

22d

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - external tooth lock, No. 8

2шт.

L36184

HARNESS

KIT - service option before tractor SN 9126945

1шт.

L79234

KIT

- receptacle, rear harness

1шт.

L79235

KIT

- plug, front harness

1шт.

L78403

BRACKET

- harness

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.

23

L104329

BREAKER

CIRCUIT BREAKER - 15 amp, before tractor SN 9135859

1шт.

24

L104330

BREAKER

CIRCUIT BREAKER - 30 amp, used on tractor SN 9135859 and after when used in Ref. 23 location

2шт.

25

L70057

ELECTRICAL WIRE

WIRE - circuit breaker to circuit breaker

1шт.

25

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, No. 8 - 32 NC x 1/2"

2-4шт.

27

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - lock, No. 8

2-4шт.

28

129-6

NUT,#8-32

2-4шт.

29

L70058

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker

1шт.

30

L18684

BRACKET

- solenoid mount, at front of engine

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

35

S240588

SOLENOID SWITCH

SOLENOID - relay, cab

1шт.

36

L109871

SOLENOID

- relay, starter

1шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2-4шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2-4шт.

39

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2-4шт.

40

A31060

ELECTRICAL WIRE

WIRE - ground

1шт.

41

80049853

YOKE

- wire

1шт.

42

REF

INSTRUCTION

SWITCH - backup alarm, see figure 168

1шт.

43

L59682

TERMINAL CONNECTOR

TERMINAL - flat, used with L79815 harness

1шт.

44

L112914

BRACKET

- solenoid mount, at center of engine

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.
