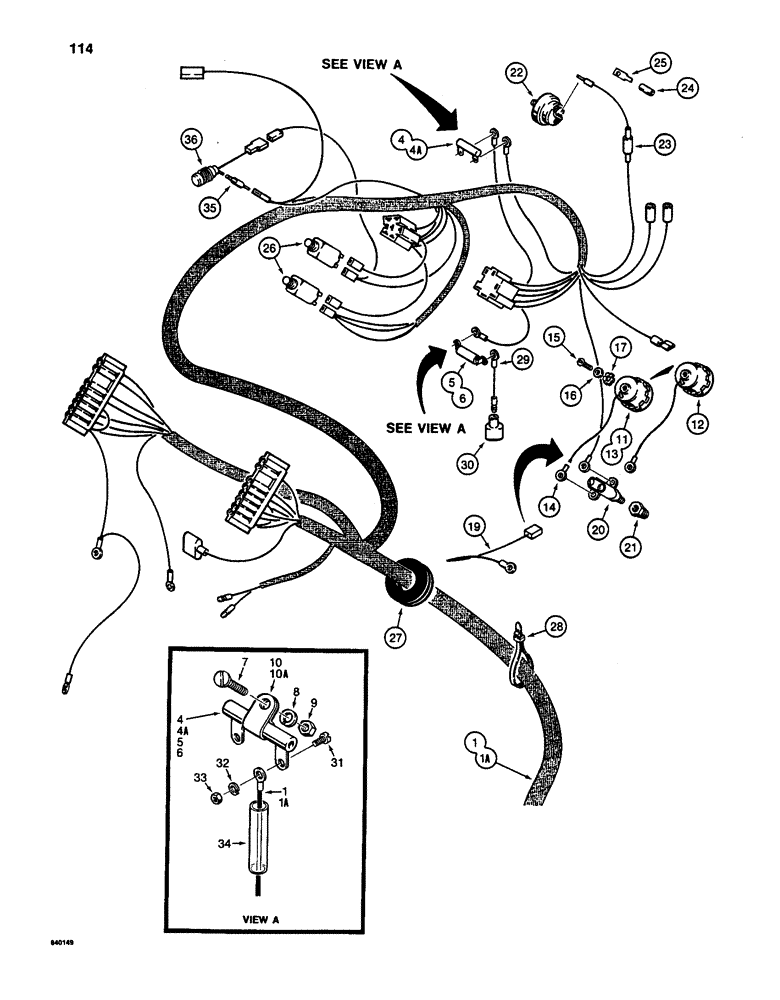

Запчасти Case W24C (114) - ELECTRICAL SYSTEM, FRONT HARNESS TO INSTRUMENT PANELS (04) - ELECTRICAL SYSTEMS

1

L59407

HARNESS

- front, before tractor SN 9126930

1шт.

1

L77873

HARNESS

- front, tractor SN 9126930 thru SN 9130713, use L79361 harness and L36185 ignition switch kit, parts list figure 108

1шт.

1

L79361

HARNESS

- front, tractor SN 9130714 thru SN 9148988,. includes Refs. 4 and 5, use L113780 harness and Refs. 4, 6, 29, 30, 32, 33, and L36238 kit

1шт.

1a

L113780

HARNESS

- front, used on tractor SN 9148989 and after, used without panel lamps, has blade type terminals for clutch pressure switch has conduit for clamping, Includes: Ref. 2 and 3

1шт.

2

N7517

CONNECTOR, ELEC

CONNECTOR - 2 plug, included in all the above harnesses, not shown, see figure 118

1шт.

3

N7518

CONNECTOR, ELEC

CONNECTOR - 3 plug, included in all the above harnesses, not shown, see figure 118

1шт.

4

L59799

RESISTOR

- 15 ohm, 12 watt, used with all harnesses, without optional gauges, order L113617 resistor and (1) L70217 clamp

1шт.

4a

L113617

RESISTOR

- 15 ohm, 25 watt, used with optional gauges

1шт.

5

L57178

RESISTOR

- 39 ohm, used with L79361 harness

1шт.

6

L103985

RESISTOR

- 39 ohm, used with L113780 harness

1шт.

7

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

- flat head, No. 6 - 32 NC x 1/2"

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

9

129-15

NUT,#6-32

2шт.

10

L73415

CLAMP

- resistor, used L59799, and L57178, resistors

2шт.

10a

L70217

CLAMP

- resistor, used with L113617 resistor

1шт.

11

L15056

BUZZER

ALARM - warning, air pressure, order repair Ref. L103524 alarm through tractor SN 9134799

1шт.

12

L104033

ALARM

- warning, air pressure, includes terminal, used with L49793 wire, tractor SN 9134800 and after, order L107890 alarm

1шт.

13

L107890

BUZZER

ALARM - warning, air pressure, used with 223-48 terminal

1шт.

14

223-48

FITTING

TERMINAL - straight

1шт.

15

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- No. 8 x 3/8 "

1шт.

16

195-10

WASHER,#8

1шт.

17

193-5

LOCK WASHER,Ext Tooth, #8

WASHER- external tooth lock, No.8

1шт.

18

A18457

ELECTRICAL WIRE

WIRE - alarm to ground, used with L15056 alarm, not shown

1шт.

19

A31060

ELECTRICAL WIRE

WIRE - alarm to switch, used with L15056 alarm

1шт.

19

L49793

ELECTRICAL WIRE

WIRE - alarm to switch, used with L104033 alarm

1шт.

20

S213102

INDICATOR

SWITCH - air pressure, interchangeable with L48480 switch, when replacing original production switch, also order Ref. 21

1шт.

21

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

L36184

HARNESS

KIT - service option, before tractor SN 9126945

1шт.

L79234

KIT

- receptacle, rear harness

1шт.

L79235

KIT

- plug, front harness

1шт.

L78403

BRACKET

- harness

1шт.

L36238

KIT

- electrical, includes terminals to adapt, Serial Range: harness-switches

1шт.

22

L57937

SWITCH

- air parking brake

1шт.

23

L58497

RESISTOR

- 40 ohm, used with L59407 harness

2шт.

24

L73576

RESISTOR

- 40 ohm, used with L77873 and L79361 harness

1шт.

25

L59682

TERMINAL CONNECTOR

TERMINAL - resistor to wire harness, used with L59407

1шт.

26

L59970

BREAKER

CIRCUIT BREAKER - 5 amp

2шт.

27

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- split

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

A14734

ELECTRICAL WIRE

WIRE - to instrument panel lamp

1шт.

30

A8210

CONNECTOR, ELEC

CONNECTOR - three way

1шт.

31

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- pan head, No. 8 - 32 NC x 1/4"

4шт.

32

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

33

129-6

NUT,#8-32

4шт.

34

223-125

TUBE

SHRINK TUBING - resistor

4шт.

35

L58497

RESISTOR

- 40 ohm

1шт.

36

H371849

INDICATOR

LAMP - hydraulic filter warning

1шт.
