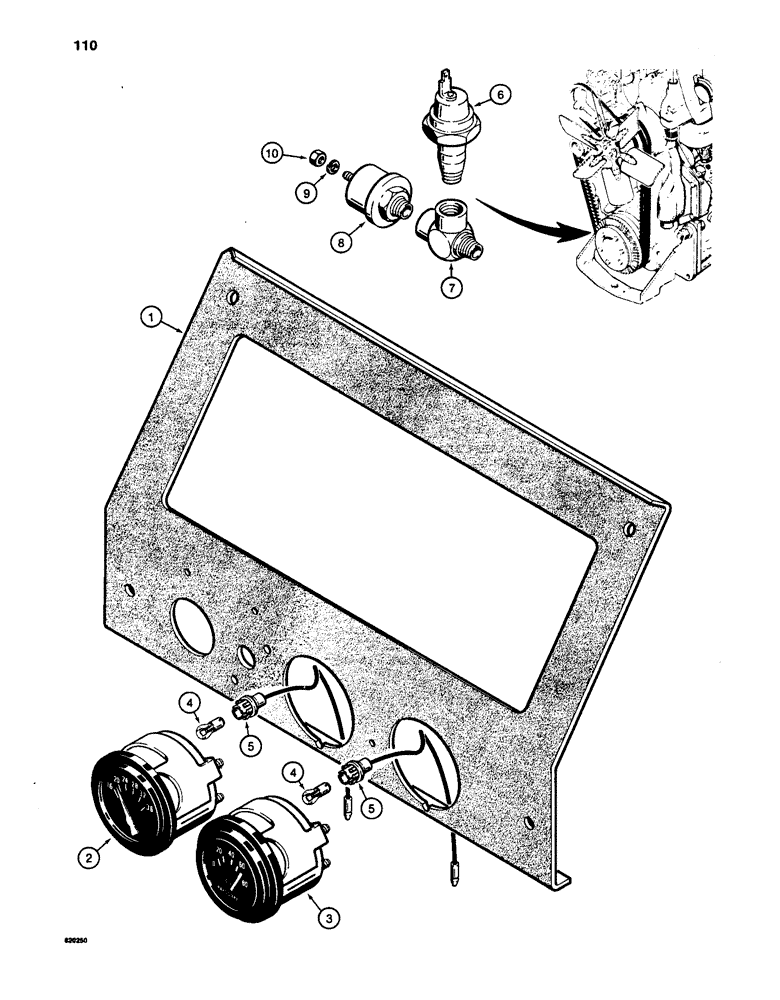

Запчасти Case W24C (110) - ELECTRICAL SYSTEM, INSTRUMENT PANEL WITH OPTIONAL GAUGES (04) - ELECTRICAL SYSTEMS

1

L103975

PANEL

INSTRUMENT PANEL - left-hand, optional gauges, for other instrument panels see figure 108

1шт.

2

L111876

GAUGE

- voltmeter

1шт.

3

L111875

DIPSTICK

GAUGE - oil pressure

1шт.

4

B50213

BULB

- gauge

2шт.

5

L107438

SOCKET

- lamp

2шт.

6

REF

INSTRUCTION

SENDER - engine oil pressure, see figure 32

1шт.

Ref. 6 - (For the Light)

1шт.

7

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- engine oil pressure sender

1шт.

8

W10140

TRANSMITTER

SENDER - engine oil pressure

1шт.

Ref. 8 - (For the Gauge)

1шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

10

129-27

NUT,Hex, #10 - 32

- hex, No.10 - 32 NF

1шт.
