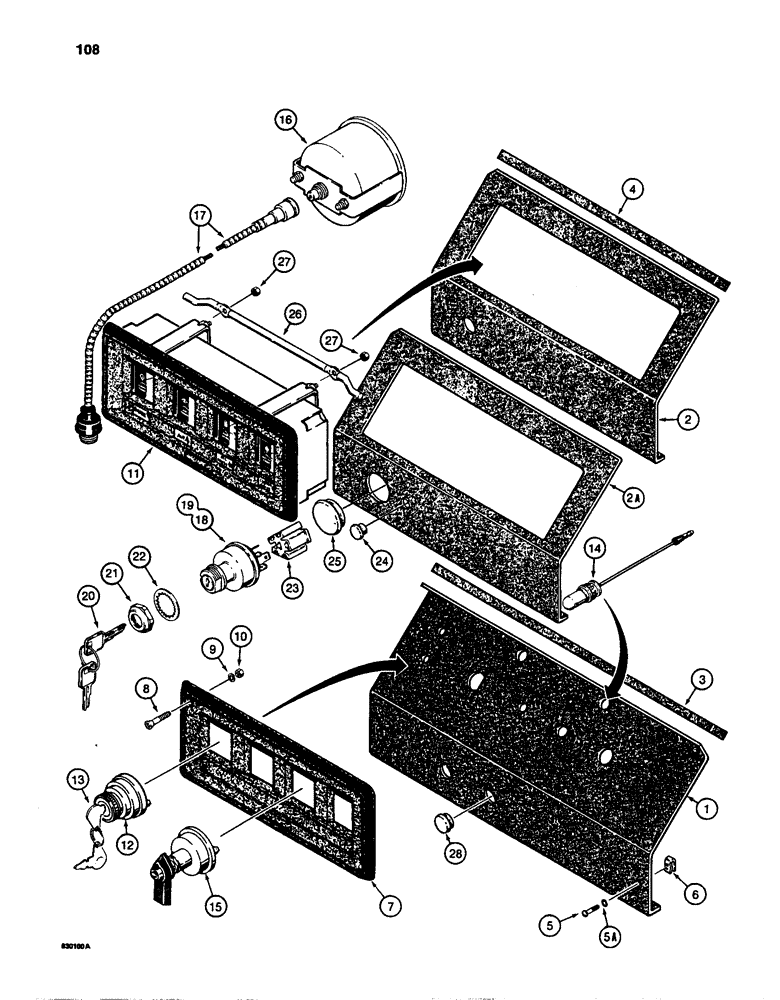

Запчасти Case W24C (108) - ELECTRICAL SYSTEM, INSTRUMENT PANELS AND TACHOMETOR (04) - ELECTRICAL SYSTEMS

1

L107400

PANEL

INSTRUMENT PANEL - right-hand

1шт.

2

L57001

PANEL

INSTRUMENT PANEL - left-hand, used with auxiliary steering warining lamp only

1шт.

2a

L106318

PANEL

INSTRUMENT PANEL - left-hand, used with auxiliary steering warining lamp and buzzer

1шт.

3

L57916

STRIP

- filler, right-hand

1шт.

4

L57917

STRIP

- filler, left-hand

1шт.

5

175-473

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- truss head, 1/4" - 20 NC x 3/4"

8шт.

5a

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

8шт.

6

131-630

SPRING NUT,Tinn, U, 1/4"-20

- clip

8шт.

7

L55774

PANEL

COVER - instrument, right-hand

1шт.

8

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW- -flat head, hex socket, No. 6-32 NC x 3/4", stainless

4шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

10

129-15

NUT,#6-32

4шт.

11

L55650

CLUSTER

- left-hand, parts list figure 112

1шт.

12

L55655

SWITCH

- ignition, use L36185 switch kit, Includes: Ref. 13

1шт.

13

R30074

SET

KEYS - ignition, set of two

1шт.

14

L105210

LIGHT

- instrument panel, parts list figure 148

2шт.

15

L55654

SWITCH

- light

1шт.

16

A11190

TACHOMETER

GAUGE - tachometer and hourmeter

1шт.

17

A24101

CABLE

- tachometer

1шт.

L36185

SWITCH

KIT - ignition switch, Includes: Ref. 18 - 23

1шт.

18

L61053

IGNITION SWITCH

KEY SWITCH ASSEMBLY - includes keys, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

SWITCH - less keys

1шт.

20

A77313

SET OF 2 KEYS

KEY - set of 2

1шт.

21

A77314

NUT

- hex

1шт.

22

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

23

L79667

CONNECTOR, ELEC

CONNECTOR - 6 pole electrical

1шт.

24

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

25

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

26

L100085

ROD

- cluster retaining

1шт.

27

129-27

NUT,Hex, #10 - 32

- hex, No. 10 - 32 NF

2шт.

28

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16"

1шт.

29

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8 ", not shown, use when L105210 lamp is removed

1шт.
