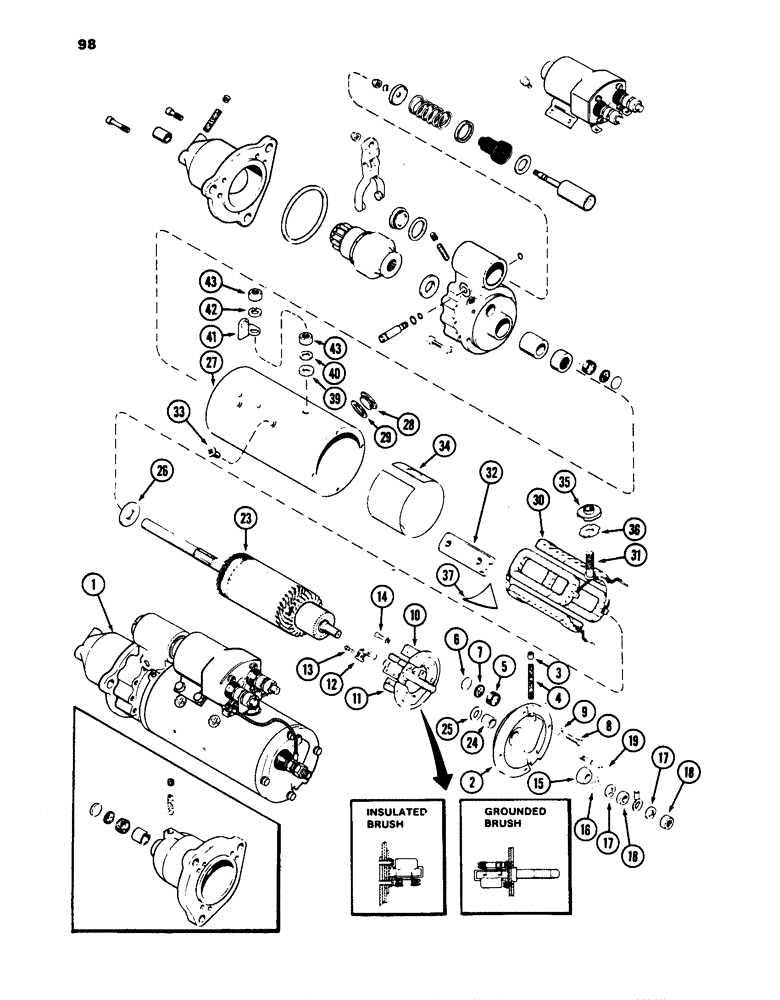

Запчасти Case W24C (098) - R26137 STARTER (04) - ELECTRICAL SYSTEMS

A47500

REMAN-STARTER

STARTER ASSEMBLY - remanufactured, Includes: Ref. 2 - 43

1шт.

A47501

CORE-STARTER

RETURN NUMBER - use this part No. to return starter core for credit

1шт.

1

R26137

STARTER MOTOR

STARTER ASSEMBLY - new, Delco-Remy No. 1113998, Includes: Ref. 2 - 43

1шт.

2

A47887

FRAME

ASSEMBLY - commutator end (Replaces A40897), Includes: Ref. 3 - 7

1шт.

3

221-1041

PLUG

- oil wick hole

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- oil reservoir (felt)

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- expansion, oil reservoir hole

1шт.

7

A41973

GASKET

- expansion plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A42373

PLATE

ASSEMBLY - brush holder and terminal stud, Includes: Ref. 11

1шт.

11

A25393

SPRING

- brush tension

8шт.

12

A41456

BRUSH, COMMUTATOR

BRUSH - starter

8шт.

13

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush attaching, round head, No. 8-32 x 5/16 inch

8шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

ASSEMBLY - mounting plate

3шт.

15

A43701

BUSHING

- terminal stud insulating

1шт.

16

D30006

WASHER

- terminal stud, 1/2 x 7/8 x 1/32 inch (13 x 22 x 1 mm)

1шт.

17

192-113

LOCK WASHER,1/2"

WASHER - terminal stud, lock, 1/2 inch

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal stud 1/2"-13, G5

2шт.

19

A41978

ELECTRICAL WIRE

WIRE - terminal, Serial Range: stud-solenoid

1шт.

23

A41458

ARMATURE

- starter

1шт.

24

A42323

BUSHING

- armature pilot (in commutator end)

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust, armature (at commutator end)

1шт.

26

A40892

WASHER

- thrust, armature (at lever housing)

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - starter housing

1шт.

28

R21587

PLUG

- brush inspection

2шт.

29

A41924

GASKET

- inspection plug

2шт.

30

A47847

COIL

ASSEMBLY - field (Replaces A1590), Includes: Ref. 31

1шт.

31

A40896

STUD

- field terminal

1шт.

32

R15115

SHOE

- pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes, phillips head, 3/8 NC x 5/8 inch

8шт.

34

A44169

INSULATOR

INSULATION - field coil

1шт.

A41925

BUSHING

ASSEMBLY - field coil stud insulation, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud (inner)

1шт.

36

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

37

A41977

RUBBER INSULATOR

INSULATOR - field coil

2шт.

39

D30005

INSULATOR

- field coil stud (outer)

2шт.

40

D30006

WASHER

- field coil stud, 1/2 x 7/8/ x 1/32 inch (13 x 22 x 1 mm)

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR - coil, Serial Range: stud-solenoid

1шт.

42

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.
