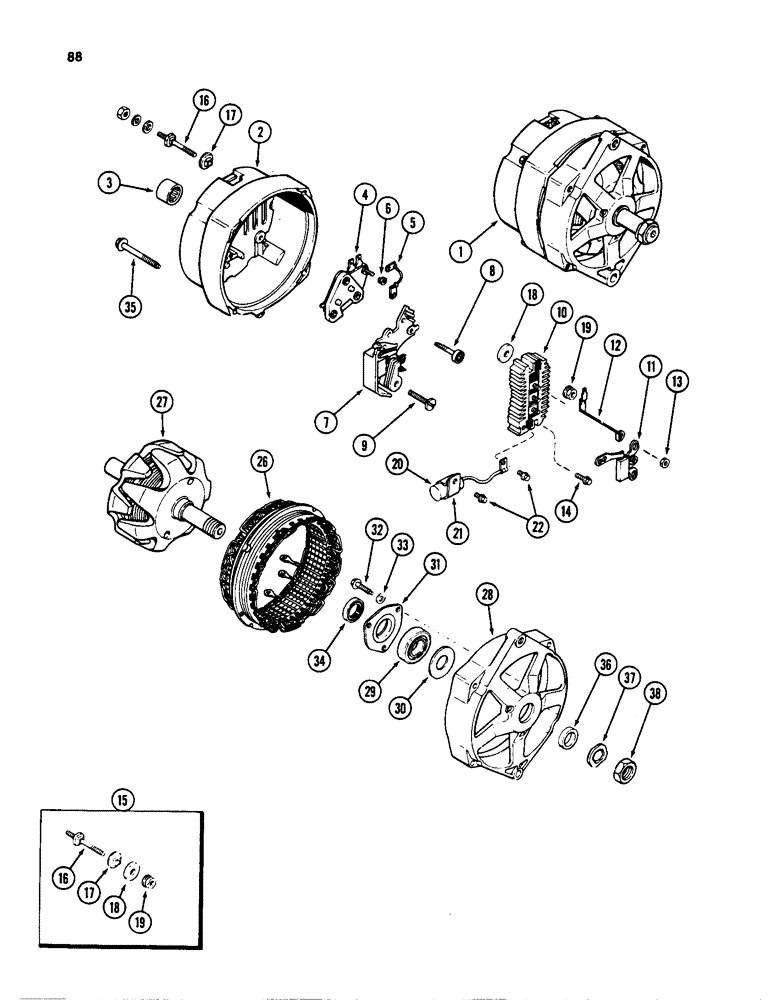

Запчасти Case W24C (088) - L78103 ALTERNATOR, 40 AMPERE - 24 VOLT (04) - ELECTRICAL SYSTEMS

A47484

ALTERNATOR

ASSEMBLY - Includes: Ref. 2 - 38

1шт.

A47485

CORE-ALTERNATOR

RETURN NUMBER - use this part No. to return alternator core for credit

1шт.

1

L78103

ALTERNATOR

ASSEMBLY - new, Delco-Remy No. 1102918, without fan and pulley (Order L101465), Includes: Ref. 2 - 38

1шт.

2

A47595

FRAME

- slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - roller (Replaces A47046)

1шт.

4

A46890

REGULATOR

- voltage (Replaces A45372)

1шт.

5

A45369

ELECTRICAL WIRE

LEAD - regulator

1шт.

6

A45368

NUT

- lead to regulator stud

1шт.

7

A47042

HOLDER

ASSEMBLY - brush, with brushes

1шт.

8

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

- brush holder, insulated

2шт.

9

A47043

SCREW,#8 - 32 x 21"

- brush holder, grounded

1шт.

10

A45394

RECTIFIER

BRIDGE ASSEMBLY - rectifier

1шт.

11

A48339

DIODE

- trio (Replaces A45219)

1шт.

12

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

13

129-16

NUT,#8-32

Diode trio to rectifier bridge #8-32

3шт.

14

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

- rectifier bridge

1шт.

15

A45225

MULTIPOLE CONNECTOR

TERMIMNAL PACKAGE - battery

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - terminal, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud, outer

1шт.

18

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud, inner

1шт.

19

NSS

NOT SOLD SEPARAT

NUT - terminal stud

1шт.

20

A47734

CAPACITOR

- alternator

1шт.

21

A45227

CLAMP

BRACKET - capacitor

1шт.

22

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor mounting and lead

2шт.

26

A47048

ARMATURE

STATOR ASSEMBLY - alternator

1шт.

27

A47050

TORQ CONV IMPELLER

ROTOR ASSEMBLY - alternator

1шт.

28

A49473

FRAME

- drive end ( Replaces A47839)

1шт.

29

A49389

BEARING ASSY

BEARING - ball ( Replaces A47579)

1шт.

30

A45232

WASHER

SLINGER - grease

1шт.

31

A44433

PLATE

- ball bearing retainer

1шт.

32

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- retainer plate, No. 10-24 x 3/8 inch

3шт.

33

195-512

WASHER,#10

- retainer plate screw

3шт.

34

A43693

SEAL

- oil bearing

1шт.

35

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT- through

4шт.

36

A72047

COLLAR

- rotor shaft (outside)

1шт.

37

R16171

SPRING WASHER

- lock, drive, pulley and fan

1шт.

38

A25546

NUT

- pulley and fan retaining

1шт.
