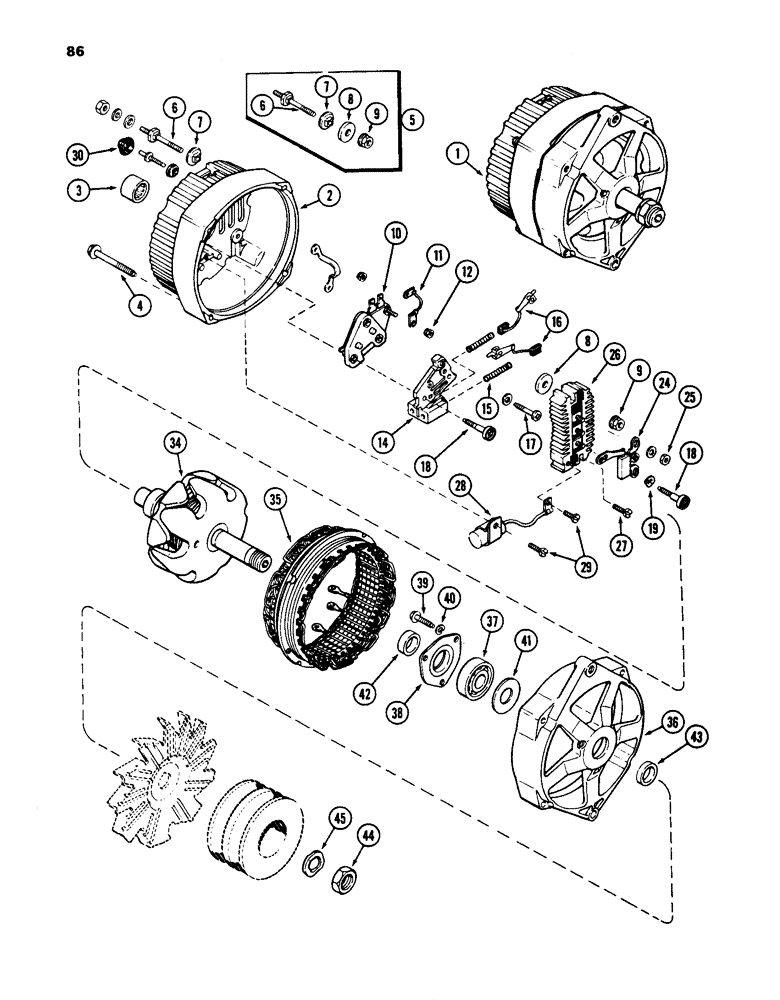

Запчасти Case W24C (086) - L59901 ALTERNATOR, L59901 ALTERNATOR, 40 AMPERE - 24 VOLT (04) - ELECTRICAL SYSTEMS

A47484

ALTERNATOR

ASSEMBLY - remanufactured, Includes: Ref. 2 - 45

1шт.

A47485

CORE-ALTERNATOR

RETURN NUMBER - use this part No. to return alternator core for credit

1шт.

1

L59901

ALTERNATOR

ASSEMBLY - new, Delco-Remy No. 1102348, without fan and pulley (Order L101465 from figure 90), Includes: Ref. 2 - 45

1шт.

2

A47988

FUNNEL

FRAME ASSEMBLY - slip ring end (Replaces A45217), Includes: Ref. 3

1шт.

3

A45218

BEARING ASSY

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through, hex washer head, No.10-24 x 1-3/4 inch

4шт.

5

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR - ternminal stud, outer

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud, inner

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - terminal stud

1шт.

10

A46890

REGULATOR

ASSEMBLY - voltage (Replaces A45372 )

1шт.

11

A45369

ELECTRICAL WIRE

LEAD - regulator stud to brush holder screw

1шт.

12

A45368

NUT

- lead to regulator stud

1шт.

A45222

BRUSH, COMMUTATOR

HOLDER ASSEMBLY - brush (with brushes), Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

15

A47989

SPRING

- brush tension (Replaces A43678)

2шт.

16

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY - alternator

2шт.

17

A45224

SCREW,0.164" - 32 x 1 7/64"

-brush holder (grounded)

2шт.

18

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

- brush holder (insulator)

2шт.

19

A45367

WASHER

- insulated screw (spring type)

2шт.

24

A48339

DIODE

- trio (Replaces A45219)

1шт.

25

129-16

NUT,#8-32

3шт.

26

A45394

RECTIFIER

RECITIFIER ASSEMBLY - bridge

1шт.

27

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

- rectifier bridge, No. 8-32 x 1 inch

1шт.

28

A47734

CAPACITOR

ASSEMBLY - with mounting bracket (Replaces A45017

1шт.

29

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket and lead

2шт.

30

A45537

INSULATOR

BOOT - voltage terminal

1шт.

34

A47050

TORQ CONV IMPELLER

ROTOR ASSEMBLY - includes slip ring

1шт.

35

A45233

STATOR

ASSEMBLY - alernator

1шт.

36

A49473

FRAME

- DRIVE END (Replaces A47839)

1шт.

37

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

38

A44433

PLATE

- BEARING RETAINER

1шт.

39

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- bearing plate, round head, No.10-24 x3/8 inch

3шт.

40

A45367

WASHER

- 3/16 x 7/16 x 1/16 inch (5 x 11 x 2 mm)

3шт.

41

A45232

WASHER

- grease slinger, bearing

1шт.

42

A44522

COLLAR

- rotor shaft, inside, 11/16 x 15/16 x 3/8 inch (17 x 24 x 10 mm)

1шт.

43

A72047

COLLAR

- rotor shaft, outer, 11/16 x 7/8 x 3/16 inch (17 x 22 x 5 mm)

1шт.

44

A25546

NUT

- pulley and fan retaining

1шт.

45

R16171

SPRING WASHER

- lock

1шт.
