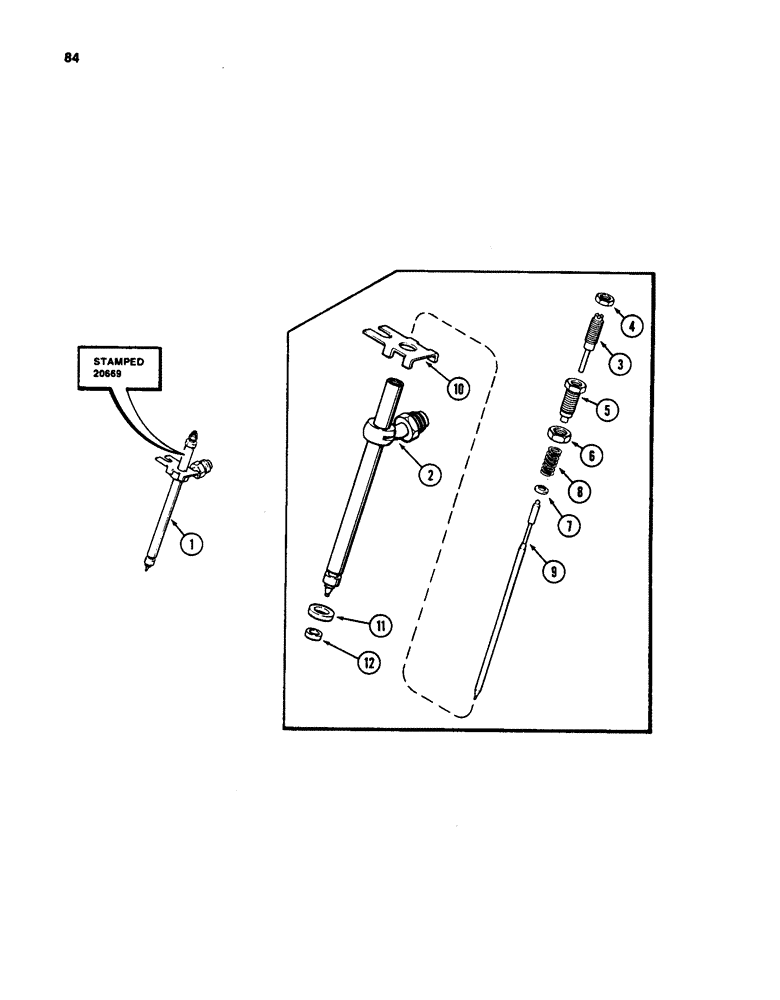

Запчасти Case W24C (084) - INJECTOR NOZZLES (03) - FUEL SYSTEM

1

A140830

INJECTOR ASSY.

NOZZLE ASSEMBLY - injector, Stamped 20669 on body, blue and yellow color code, Includes: Ref. 2 - 12

6шт.

WHENEVER A NOZZLE IS REMOVED FROM THE HEAD, A41403 WASHER AND A41402 SEAL MUST BE REPLACED BEFORE THE NOZZLE IS INSTALLED BACK INTO THE HEAD.

1шт.

A140830R

REMAN-INJECT NOZZLE

W24C

6шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- pressure adjusting spring

1шт.

8

A43733

SPRING

- pressure adjusting 9/16 inch (14 mm) free length (red color code)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
