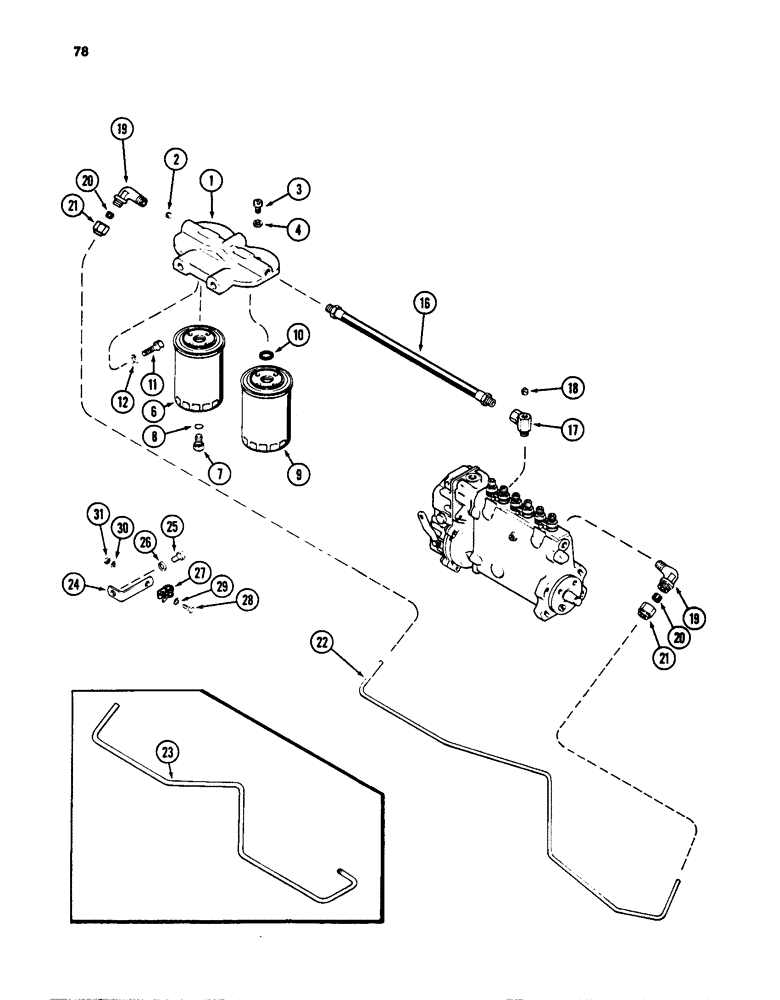

Запчасти Case W24C (078) - FUEL FILTER SYSTEM, 504BD AND 504BDT DIESEL ENGINES (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - filter (Replaces A62239), Includes: Ref. 2

1шт.

2

221-1849

PLUG

- socket hex head, 1/8 inch PT

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed, slotted round head, No. 10-32 x 5/16 inch

2шт.

4

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, 3/16 x 5/16 x 3/64 inch aluminum (5 x 8 x 1 mm)

2шт.

A44068

FUEL FILTER

ELEMENT KIT - filters (Replaces A41745), Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage (Reference No. A58712), Includes: Ref. 7 and 8

1шт.

7

G49080

PLUG

-filter drain, 3/8 inch, 12 point head

1шт.

8

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage (Reference No. A77220), Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - filter to head (Ref. No. A42315)

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Filter mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

16

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump, 16 inch (406 mm) long

1шт.

17

A20539

FITTING

UNION - hose (at pump)

1шт.

18

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, square head, 1/8 inch PT

1шт.

19

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - filter tube, Includes: Ref. 20 and 21

2шт.

20

222-103

SLEEVE,5/16" Tube

(8 mm) tube 5/16" Tube

1шт.

21

222-113

TUBE NUT,9/16"-24

NUT - For 5/16 inch (8 mm) tube

1шт.

22

A157329

TUBE

- pump to first stage filter (Engine Serial No. 10339083 and after)

1шт.

23

A62342

TUBE

- pump to first stage filter (Prior to Engine Serial No. 10339083)

1шт.

24

A64856

BRACKET

- tube support

1шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Bracket to block Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube retaining

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip to bracket Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

29

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER - internal-external Shakeproof, 1/4 inch

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

25-104

NUT,1/4"-20, G5

1шт.
