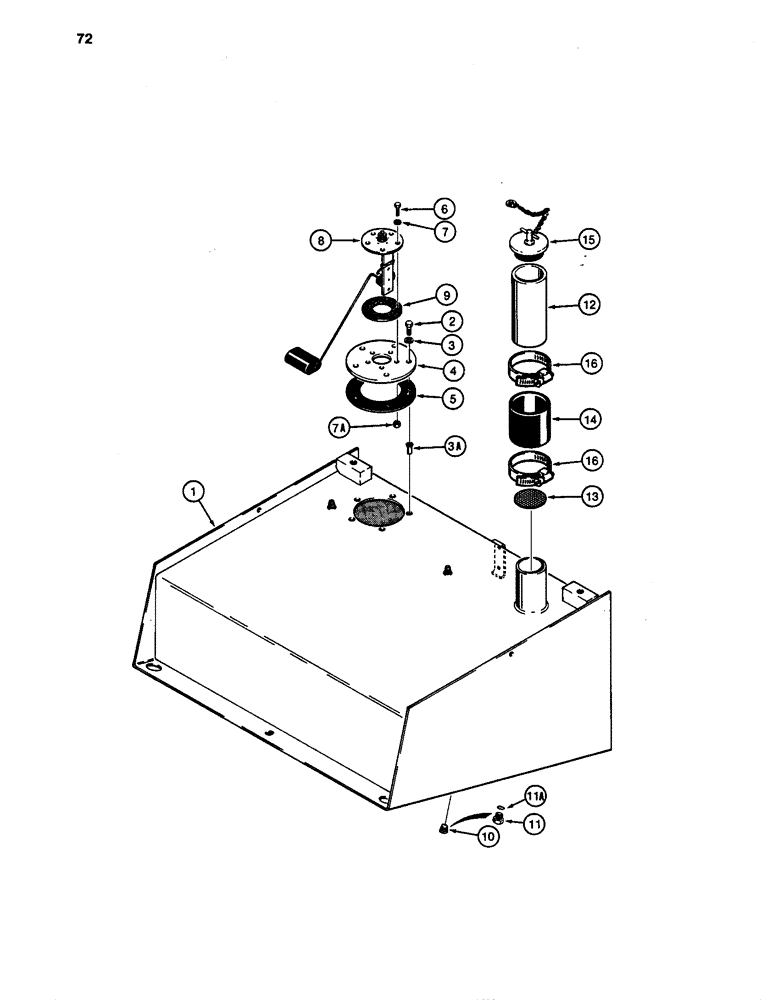

Запчасти Case W24C (072) - FUEL TANK AND SENDING UNIT (03) - FUEL SYSTEM

L77661

TANK

FUEL TANK ASSEMBLY - male fittings, use L79149 tank, 222-638 fitting, 222-639 fitting, L79245 tube,L79150 hose, 214-102 clamp, Includes: Ref. 1 - 11A

1шт.

L79149

RESERVOIR

FUEL TANK ASSEMBLY - female fittings

1шт.

1

NSS

NOT SOLD SEPARAT

FUEL TANK - tractor

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

3a

L13176

NUT

- special, 1/4"- 20 NC

5шт.

4

L77441

PLATE

- hand hole cover

1шт.

5

L79876

GASKET,4.57mm Thk

- hand hole cover

1шт.

6

163-15

SCREW,Hex, #10 - 24 x 5/8"

BOLT - hex head, No. 10 -24 NC x 5/8"

5шт.

7

L77590

WASHER

- special

5шт.

7a

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

8

L110128

TRANSMITTER

SENDER - fuel level

1шт.

9

A11822

GASKET

- fuel sender, if used

1шт.

10

221-844

PLUG,Hex Soc, 1/2"-14

- square socket head, 1/2" NPT, if used

1шт.

11

L113422

PLUG

- hex head, special, Includes: Ref. 11A

1шт.

11a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

12

L77663

PIPE

- filler extension

1шт.

13

L77059

STRAINER ASSY.

STRAINER - fuel

1шт.

14

L71051

HOSE,76.2 mm ID x 88.90 mm

1шт.

15

L74383

CYLINDER END CAP

CAP - fuel tank

1шт.

16

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - worm screw

2шт.
