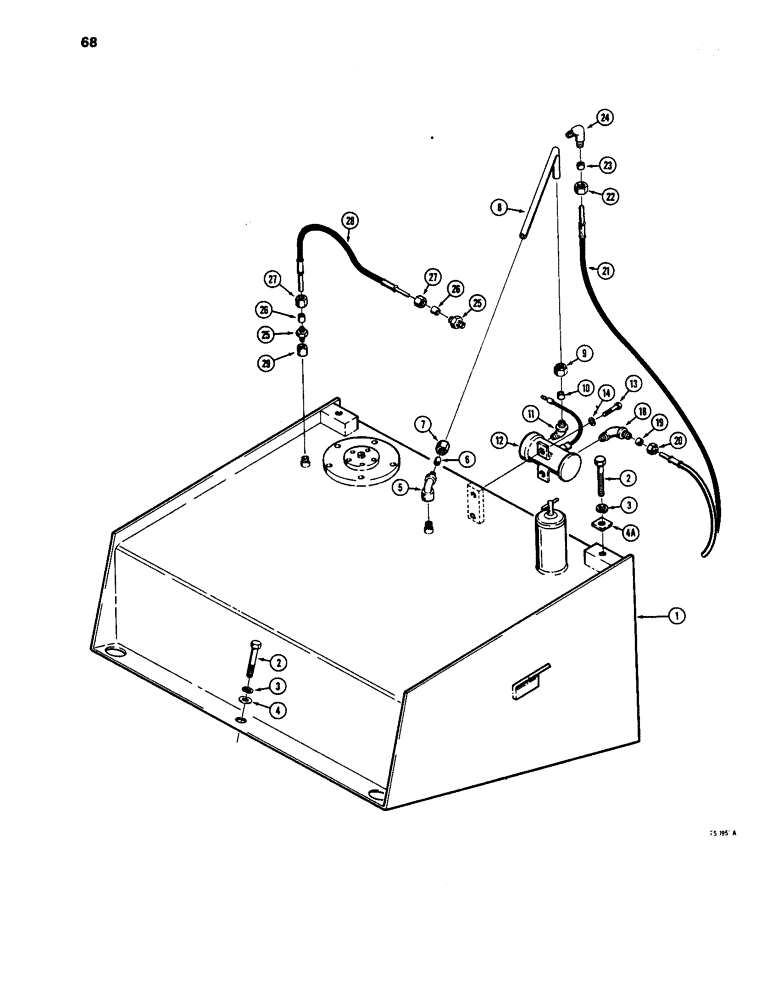

Запчасти Case W24C (068) - FUEL TANK AND RELATED PARTS, MALE FITTINGS IN TANK (03) - FUEL SYSTEM

1

REF

INSTRUCTION

TANK ASSEMBLY - fuel, parts list figure 72

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

3шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

4a

L44022

WASHER

- fuel tank mounting

2шт.

222-57

ELBOW,5/8"-24 x 1/4 NPTF

FITTING ASSEMBLY - 90 degree, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

6

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

7

222-114

NUT,5/8"-24

NUT - fitting

1шт.

8

L51752

TUBE,0.375" OD x 10.25, 2.8" L

- fuel tank suction, Includes: Ref. 9 - 11

1шт.

9

222-104

SLEEVE,3/8" Tube

NUT - fitting

1шт.

10

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

12

L52634

PUMP

- fuel, parts list figure 74

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

FITTING ASSEMBLY - MALE, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - FITTING

1шт.

19

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

20

222-114

NUT,5/8"-24

NUT - FITTING

1шт.

21

L47879

HOSE

- 22" (559mm) long

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING ASSEMBLY - tube, Includes: Ref. 22 - 24

1шт.

22

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

NUT -fitting

1шт.

23

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ASSEMBLY - tube, Includes: Ref. 25 - 27

2шт.

25

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

28

L71056

HOSE ASSY.

HOSE - 45" (1143 mm) long

1шт.

29

221-336

COUPLING,Pipe, 1/4" NPT

Fitting - female Pipe, 1/4" NPT

1шт.
