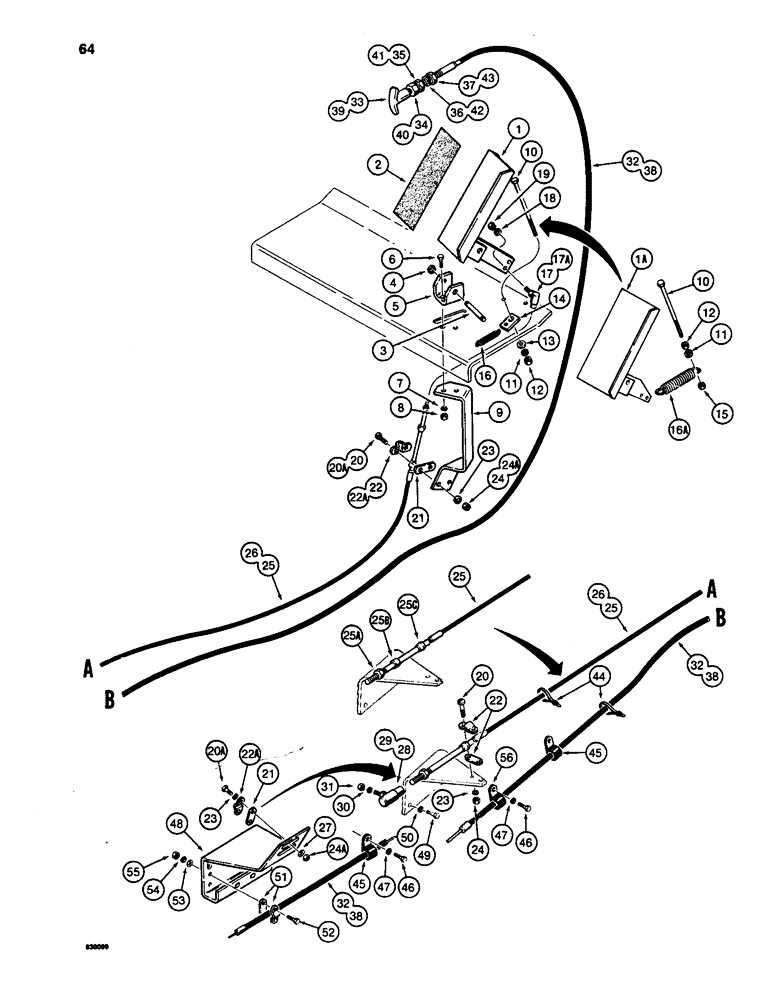

Запчасти Case W24C (064) - ACCELERATOR AND LINKAGE (03) - FUEL SYSTEM

1

L104058

PEDAL

- accelerator, used with L51684 plate, Ref. 14, and L48104 service, Ref. 16

1шт.

1a

L110297

PEDAL

- accelerator, used with L79116 spring, Ref. 16A

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

D66055

PIN,9.53mm OD x 79.25mm L

- pedal pivot

1шт.

4

A27795

RING

SNAP RING - pedal pivot

2шт.

5

L48002

BRACKET

BLOCK - accelerator pedal mounting

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

1шт.

9

L101056

BRACKET

- cable - mounting, accelerator

1шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

10

113-256

BOLT

BOLT - hex head, 3/8" - 16 NC x 5-1/2"

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

13

95-6

WASHER,3/8"

- flat 3/8"

1шт.

14

L51684

PLATE

- accelerator and cable return, used with L48104 spring

1шт.

15

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

16

L48104

SPRING

- return, accelerator, 2-1/4" long

1шт.

16a

L79116

SPRING

- return, accelerator, 4" long

1шт.

17

L12437

BALL JOINT,#10 - 32 x 7/8"

- accelerator linkage, used with L51686 cable

1шт.

17a

L101057

JOINT

BALL JOINT - accelerator linkage, used with L101033 cable

1шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

129-37

NUT,#10-32

1шт.

20

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- slotted fillister head, No. 10 - 32 NF x 3/4 ", used with L12441 clamp

4шт.

20a

163-12

SCREW,Hex, #10 - 24 x 3/4"

- slotted hex head, No. 10 - 24 NC x 3/4", used with L40314 clamp

4шт.

21

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

SPACER - clamp

2шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

22

L12441

CLAMP

- accelerator cable, used with L51586 cable, includes spacer

2шт.

22a

L40314

CLAMP

- accelerator cable, used with L112448 cable

2шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

23

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

24

129-37

NUT,#10-32

4шт.

24a

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

4шт.

L51686

CABLE

- accelerator, has No. 10 - 32 NF ends, order L36203 accelerator cable kit

1шт.

25

NSS

NOT SOLD SEPARAT

CABLE - accelerator

1шт.

25a

129-660

NUT,#10-32, Brass

2шт.

25b

L32849

SEAL ASSY.

SEAL - small, near nut end

2шт.

25c

L32690

SEAL

SEAL - large, near sheath end

2шт.

26

L112448

CABLE

- accelerator, has 1/4" - NF ends

1шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

L36203

CABLE

KIT - accelerator cable, Includes: Ref. 9, 17A, 21, 22A and 26

1шт.

27

95-3

WASHER,#12

- flat, No. 10

2шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

28

L101057

JOINT

BALL JOINT - at fuel injection pump, used with L112448 cable

1шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

29

L12437

BALL JOINT,#10 - 32 x 7/8"

- at fuel injection pump, used with L51686 cable

1шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

31

129-37

NUT,#10-32

1шт.

L44335

CABLE

ASSEMBLY - fuel shutoff, has smooth tube on lower end, order L105314 cable assembly, and Refs. 48, and 51- 55, Includes: Ref. 32 - 37

1шт.

32

NSS

NOT SOLD SEPARAT

CABLE - shutoff

1шт.

33

L32679

HANDLE

- cable

1шт.

34

129-37

NUT,#10-32

JAM NUT - 1/4" - 20 NC, plated

1шт.

35

L32866

SEAL

NUT - hex, special 3/8" - 24 NF, plated

1шт.

36

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

37

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - 3/8" - 24 NF plated

1шт.

L105314

CABLE

ASSEMBLY - fuel shutoff, has grooved tube on lower end, Includes: Ref. 38 - 43

1шт.

38

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

39

NSS

NOT SOLD SEPARAT

HANDLE - fee, L32679 handle used for service

1шт.

40

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

41

L32866

SEAL

NUT - hex, special, 3/8" - 24 NF

1шт.

42

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

43

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, 3/8" - 24 NF, plated

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

45

49859

CLAMP

- cable, shutoff

1шт.

46

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

L105287

BRACKET

- cable, rear, repair, Ref. - may appear diffrent from production bracket

1шт.

Part of Accelerator Cable Kit P/N L36203

1шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3/4"

2шт.

50

92-6

LOCK WASHER,3/8"

1шт.

51

L12441

CLAMP

- cable, fuel shutoff

1шт.

52

163-12

SCREW,Hex, #10 - 24 x 3/4"

- slotted hex head, No. 10 - 24 NC x 3/4"

2шт.

53

95-3

WASHER,#12

- flat, No. 10

2шт.

54

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

55

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

2шт.

56

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- cable No. 10 - 24 NC

2шт.

L36203

CABLE

KIT - accelerator cable, Includes: Ref. 9, 17A, 21, 22A, 26, 27, 28 and 48

1шт.
