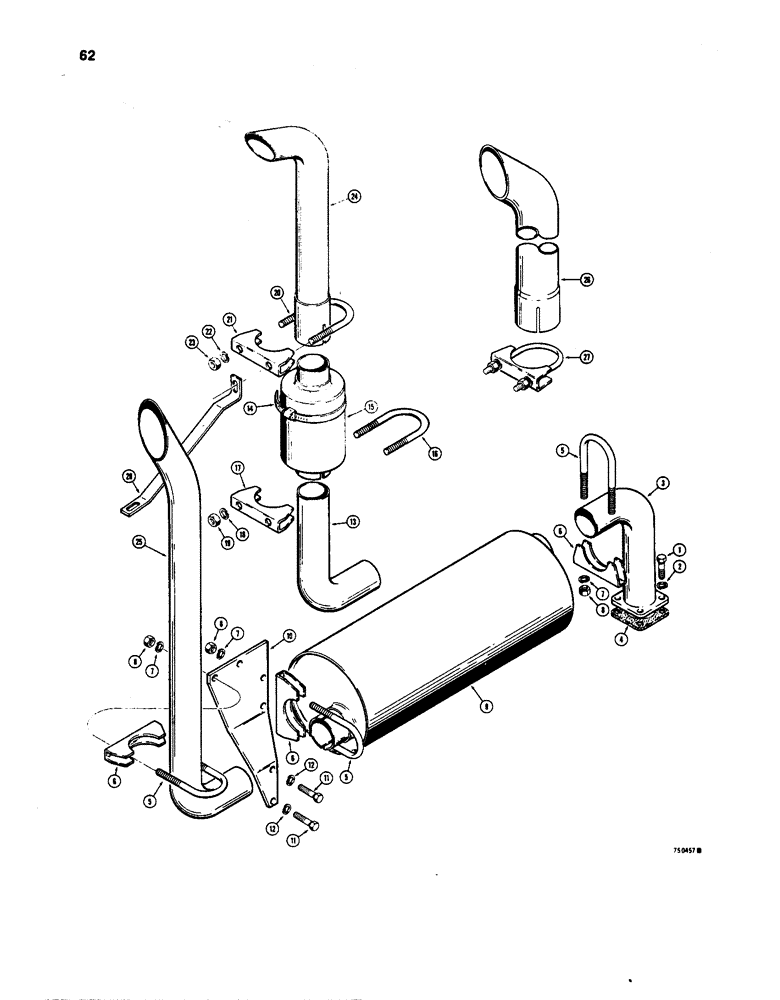

Запчасти Case W24C (062) - EXHAUST SYSTEM (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L14207

ADAPTER

- exhaust, Serial Range: manifold-muffler

1шт.

4

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

L73711

CLAMP

ASSEMBLY - exhaust pipe, Includes: Ref. 5 - 8

3шт.

5

NSS

NOT SOLD SEPARAT

U-BOLT - muffler clamp

1шт.

6

NSS

NOT SOLD SEPARAT

CLAMP - muffler

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

9

L14219

MUFFLER

- engine exhaust

1шт.

10

L48021

SUPPORT

BRACKET - muffler mounting

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

NLS

NO LONGER SERVICED

EXHAUST PIPE - used on models with sparks arrester

1шт.

L41692

ARRESTER

SPARK ARRESTER ASSEMBLY - exhaust system, Includes: Ref. 14 - 19

1шт.

14

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - muffler

1шт.

15

NSS

NOT SOLD SEPARAT

SPARK ARRESTER - exhaust system

1шт.

L73711

CLAMP

ASSEMBLY - exhaust pipe, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

U-BOLT - muffler clamp

1шт.

17

NSS

NOT SOLD SEPARAT

CLAMP - muffler

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

L73711

CLAMP

ASSEMBLY - exhaust pipe, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

U-BOLT - muffler clamp

1шт.

21

NSS

NOT SOLD SEPARAT

CLAMP - muffler

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

L78955

MUFFLER

EXHAUST PIPE - extension, used on models with spark arrester

1шт.

25

L17152

TUBE,2.975" OD

EXHAUST PIPE - 19" (483 mm) high, standard on models without spark arrester

1шт.

25

L47988

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - 41" (1041 mm) high, service options on models without sparker arrester

1шт.

26

L57758

MUFFLER

EXHAUST PIPE - turbocharged models

1шт.

27

A17851

CLAMP

ASSEMBLY - exhaust pipe, includes hardeware

1шт.

28

L41696

BRACE - spark arrester

1шт.
