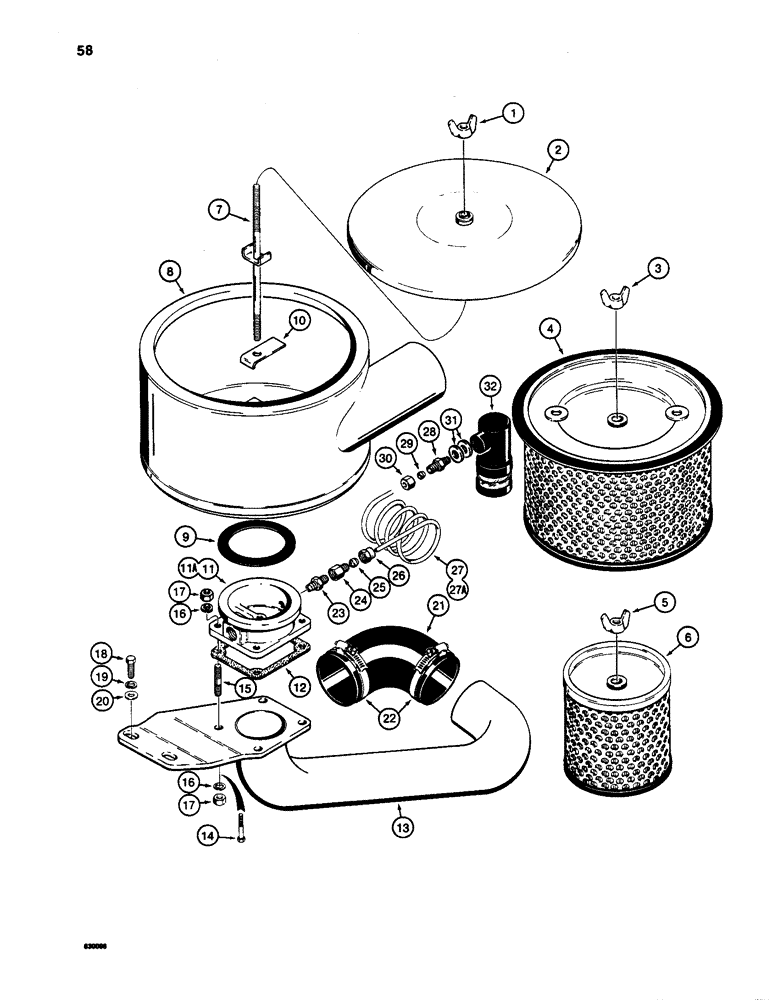

Запчасти Case W24C (058) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

L79863

CLEANER

AIR CLEANER ASSEMBLY - engine with cover, Includes: Ref. 1 - 9

1шт.

1

129-549

WING NUT,Locking, 3/8"-16

- cover retainer

1шт.

2

L35985

COVER ASSY

COVER - air cleaner

1шт.

3

129-549

WING NUT,Locking, 3/8"-16

- element retainer

1шт.

4

A43734

AIR CLEANER

ELEMENT - filter, inner

1шт.

5

129-549

WING NUT,Locking, 3/8"-16

- element retainer

1шт.

6

A43735

AIR CLEANER

ELEMENT - filter, inner

1шт.

7

D76943

ROD

STUD - special, 11-7/16" long

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

9

A43736

GASKET

- air cleaner

1шт.

10

L53836

LOCK - tab

1шт.

11

L53209

ADAPTER

- with tapped holes, air cleaner to intake manifold, no longer available, order L108308 adapter

1шт.

11a

L108308

ADAPTER

- air cleaner to intake manifold, used with 13-624 mounting bolts

1шт.

12

A58910

GASKET

- adapter to intake manifold

1шт.

13

L70187

TUBE,12.3" L

- air intake - turbocharger, if used

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, head, 3/8" - 16 NC 1-1/2", L108308 adapter

4шт.

15

L13023

STUD

- 3/8" 16 NC x 1-1/2", use nut washer on one end only, use with L53209 adapter

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

95-6

WASHER,3/8"

- flat - 3/8"

2шт.

21

D36262

LARGE HOSE

HOSE - air intake turbocharger, if used

1шт.

22

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, turbocharger if used

2шт.

23

D36264

FITTING

- special

1шт.

222-5131

COUPLING, BREAK AWAY

FITTING - compression tube, Includes: Ref. 24 - 26

1-2шт.

24

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - tube

1шт.

26

NSS

NOT SOLD SEPARAT

NUT - fitting

1шт.

27

D35278

GUARD

TUBE - air cleaner indicator, no turbocharger

1шт.

27a

D36946

TUBE

- air cleaner indicator, turbocharger

1шт.

222-5104

FITTING,5/16"-24 x 1/8" NPT

- commpression, tube, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

29

NSS

NOT SOLD SEPARAT

SLEEVE - fitting

1шт.

30

NSS

NOT SOLD SEPARAT

NUT - fitting

1шт.

31

95-6

WASHER,3/8"

- flat, , used with 222-5104 3/8"

1шт.

32

A17652

ELECTRICAL GAUGE

INDICATOR - air cleaner filter restriction

1шт.
