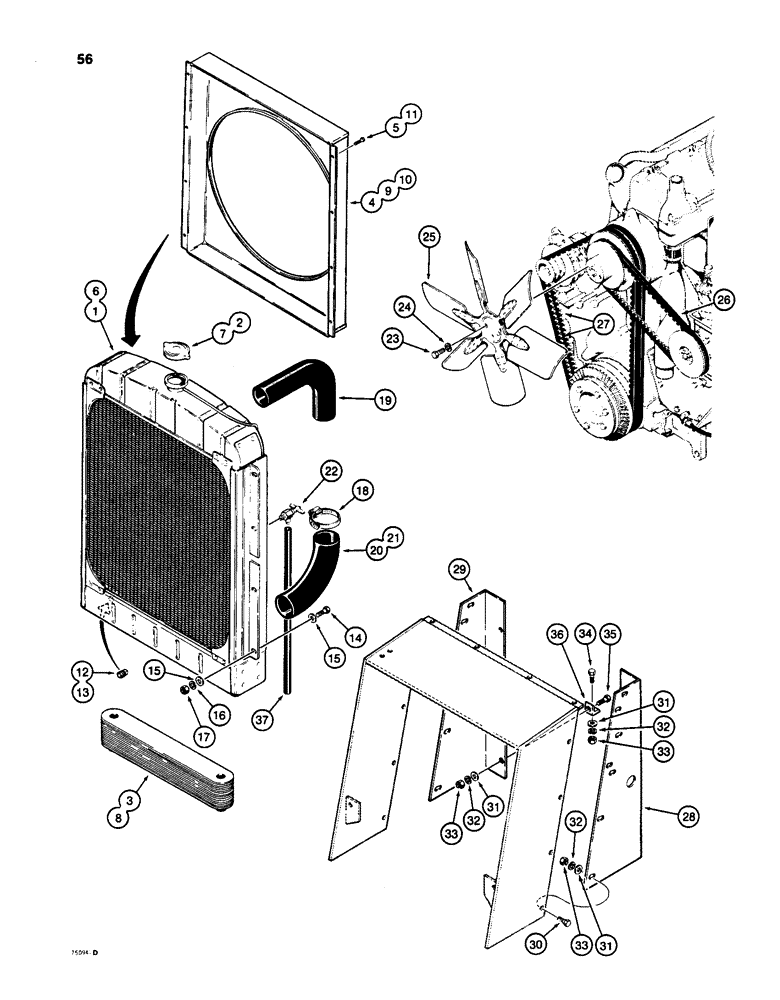

Запчасти Case W24C (056) - RADIATOR, FAN, AND FAN BELTS (02) - ENGINE

L61032

RADIATOR

- cooling has formed tank, bent lower tube and welded on shroud, Young part No. E299000, Includes: Ref. 1 - 5

1шт.

L61032

RADIATOR

- cooling, has formed tank, bent lower tube, and bolt on shroud General part No. 22-4173, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling

1шт.

2

D25826

CAP

- radiator

1шт.

3

D83221

TANK

OIL COOLER - transmission

1шт.

Ref. 3A - (10 Plates)

1шт.

Ref. 3 - (14 Plates)

1шт.

4

N7898

SHROUD

- general radiator only

1шт.

5

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

- self tapping, No. 10 - 24 NC x 1/2"

8шт.

L109500

RADIATOR

- cooling has formed tank and straight lower tube, General part No. 22-4065, Includes: Ref. 6 - 11

1шт.

L15781

RADIATOR

- cooling, has welded tank, General parts No. RHD 2352, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling

1шт.

7

D25826

CAP

- radiator

1шт.

8

D83221

TANK

OIL COOLER - transmission

1шт.

9

N7898

SHROUD

- radiator, used on L109500 radiator

1шт.

10

N6188

SHROUD - radiator, used on L15781

1шт.

11

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

SREW - self-tapping, No. 10 - 24 NC x 1/2

8шт.

12

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT, if used

1шт.

13

221-1015

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head, 3/4" NPT, if used

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

15

195-26

WASHER

WASHER - flat, 3/8"

16шт.

16

92-6

LOCK WASHER,3/8"

8шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose

4шт.

19

L15867

RADIATOR HOSE,2.50" ID x 10.50", SAE 20R4 Class SC

Upper 2.50" ID x 10.50", SAE 20R4 Class SC

4шт.

20

L15866

RADIATOR HOSE,2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

Lower, Used with L15781 and L109500 radiator 2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

1шт.

21

L111931

RADIATOR HOSE

Lower, Used with L61032 Radiator

1шт.

22

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

A15520

FAN

- radiator cooling

1шт.

26

L57802

V-BELT,12.70" W

- Compressor

1шт.

27

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt, Alternator drive 0.69" W x 65.75" L

1шт.

28

L16230

BRACKET

- radiator mounting, right-hand

1шт.

29

L74230

BRACKET

- radiator mounting, left-hand

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

31

195-26

WASHER

WASHER - flat,3/8" - 16 NC x 1-1/4"

12шт.

32

92-6

LOCK WASHER,3/8"

12шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

12шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

36

L19662

ANGLE

BRACKET - angle type

2шт.

37

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.
