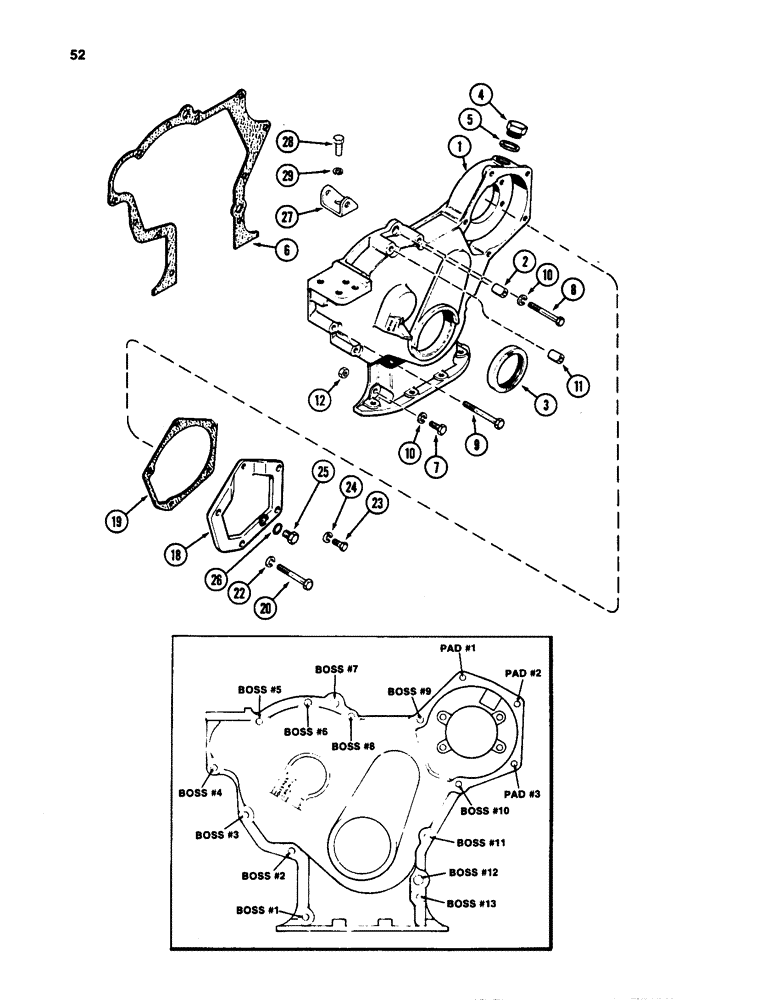

Запчасти Case W24C (052) - TIMING GEAR COVER, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A166141

HOUSING

COVER ASSEMBLY - timing gears, (Replaces A58609), Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating, 3/8 x 5/8 x inch

2шт.

3

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front, (Replaces A62049)

1шт.

4

A21140

PLUG

- timimg hole

1шт.

5

A58613

SEALING WASHER

GASKET - timing hole plug

1шт.

6

A58612

GASKET

- timing cover block

1шт.

7

A13-616

BOLT - hex, 3/8 NC x 1 inch (Boss 1, 2, 11, and 13)

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Boss 3, 6, and 8)

3шт.

9

A13-656

BOLT - hex, 3/8 NC x 3-1/2 inch (Boss 4 and 5)

2шт.

10

92-6

LOCK WASHER,3/8"

(Boss 1, 2, 3, 4, 5, 6, 8, 11, and 13) 3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point, 3/8 inch pipe x 1 inch (if equipped)

1шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC (Boss 4 and 5)

1шт.

18

A62832

COVER

- injection pump gears

1шт.

19

A58615

GASKET

- cover

1шт.

20

A151921

BOLT

- hex, 3/8 NC x 1-3/4 inch (head drilled for anti- tamper wire) (Pad 2 and 3)

2шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9672438

PLUG,7/16" - 20 ORB

Assy, Incl. Ref. 26 Hex Hd, 7/16"-20 ORB

1шт.

26

216-5003

O-RING - 3/8 x 1/2 1/16 inch 10 x 13 x 2 mm)

1шт.

27

A160391

BRACKET

- alternator mounting

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.
