(050) - ENGINE GASKET KITS, 504BD AND 504BDT DIESEL ENGINES, CYLNDER BLOCK KIT

Запчасти Case W24C (050) - ENGINE GASKET KITS, 504BD AND 504BDT DIESEL ENGINES, CYLNDER BLOCK KIT (02) - ENGINE

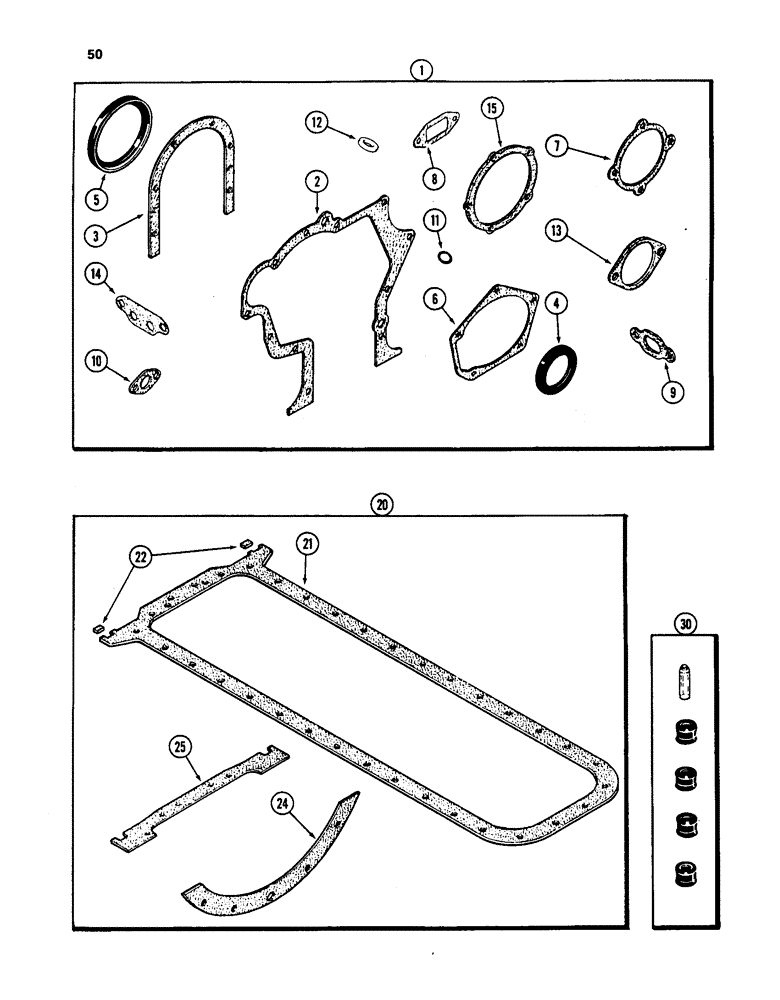

Схема запчастей Case W24C - (050) - ENGINE GASKET KITS, 504BD AND 504BDT DIESEL ENGINES, CYLNDER BLOCK KIT (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A44075

GASKET KIT

- cylinder block, Includes: Ref. 2 - 15

1шт.

FOR COMPLETE ENGINE OVERHAUL WITH 5.189 INCH TO 5.194 INCH FIRE DAM DIAMETER SLEEVES ORDER A157300, A44075 AND A152479 NOTE: FOR COMPLETE ENGINE OVERHAUL WITH 5.092 INCH TO 5.097 INCH FIRE DAM DIAMETER SLEEVES ORDER A157301, A44075 AND A152479

1шт.

2

A58612

GASKET

- timing gear cover

1шт.

3

A32830

GASKET

- rear seal retainer

1шт.

4

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

5

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

6

A58615

GASKET

- fuel pump cover

1шт.

7

A58646

GASKET

- water pump

1шт.

8

A58649

GASKET

- water pump body

1шт.

9

A58670

GASKET

- oil cooler, Serial Range: tube-block

1шт.

10

A58680

OIL PAN GASKET SET

- oil filter base

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base

3шт.

12

A58613

SEALING WASHER

GASKET - timing gear cover plug

1шт.

13

A58617

GASKET

- auxilliary drive cover (Not used this application)

1шт.

14

A58756

OIL PAN GASKET SET

- oil filter boss (Not used this application)

1шт.

15

A76656

GASKET

- water pump body (Not used this application)

1шт.

20

A152479

GASKET KIT

- oil pan, Includes: Ref. 21 - 25

1шт.

FOR COMPLETE ENGINE OVERHAUL WITH 5.189 INCH TO 5.194 INCH FIRE DAM DIAMETER SLEEVES ORDER A157300, A44075 AND A152479 NOTE: FOR COMPLETE ENGINE OVERHAUL WITH 5.092 INCH TO 5.097 INCH FIRE DAM DIAMETER SLEEVES ORDER A157301, A44075 AND A152479

1шт.

21

A150688

GASKET

- pan to block, oil kit

1шт.

22

A150690

OIL PAN GASKET SET

- corner, pan, to housing, oil kit

2шт.

23

A27968

RING

- drain plug (copper), oil pan kit

1шт.

24

A57966

GASKET

- pan to transmission (Not used this application), oil kit

1шт.

25

A150689

GASKET

- flywheel housing (Not used this application), oil pan kit

1шт.

30

M20614

SEAL KIT

SEAL KIT - valve (Includes four seals ans installation sleeve), oil pan kit

1шт.
