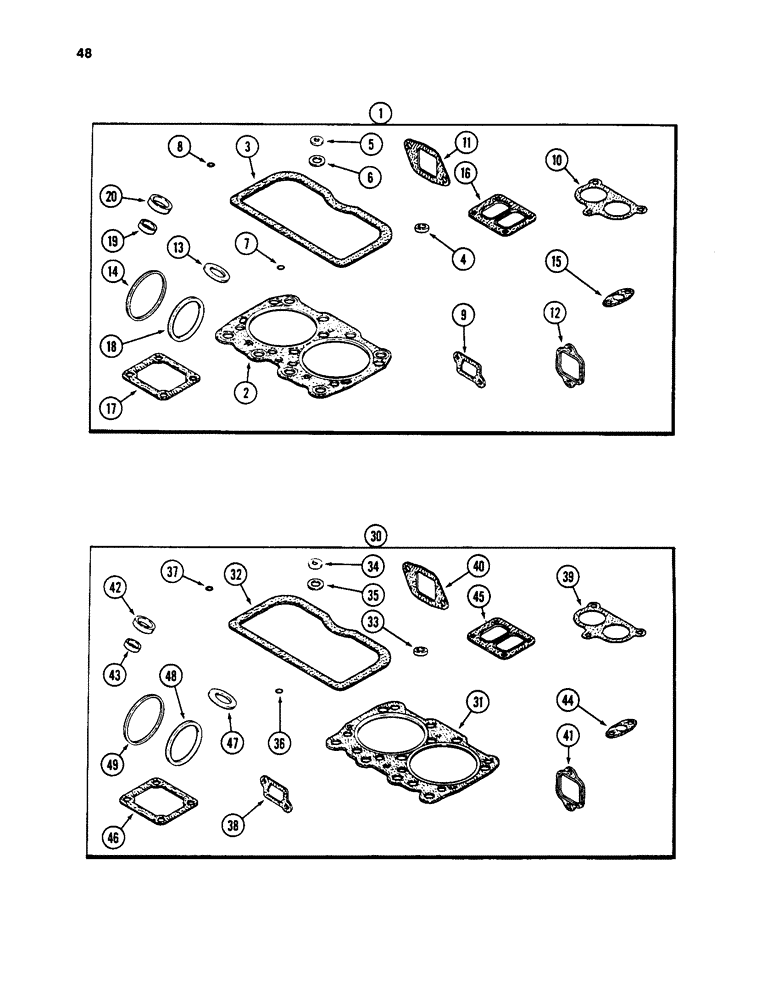

Запчасти Case W24C (048) - ENGINE GASKET KITS, 504BD AND 504BDT DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A157300

GASKET

KIT - valve grind (Replaces A151404), Includes: Ref. 2 - 20

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A157300, 1-A44075 AND A152479

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover (Replaces A65734)

3шт.

4

A142098

GROMMET

- cover studs (Replaces A65734)

3шт.

5

A34133

GASKET

- breather tube bolt

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

9

A166147

GASKET

- water manifold

3шт.

10

A166148

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58895

GASKET

- ehxaust manifold

6шт.

13

1342829C1

GASKET

- injection nozzle; Replaces A76640

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

- air intake valve

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

19

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injection nozzel

6шт.

20

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzel

6шт.

30

A157301

GASKET KIT

- valve grind (Replaces A151406), Includes: Ref. 31 - 49, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A157301, 1-A44075 AND A152479

1шт.

31

A142481

GASKET

- cylinder head, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

3шт.

32

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

3шт.

33

A142098

GROMMET

- cover studs (rubber), valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

6шт.

34

A34133

GASKET

- breather tube (fiber), valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

3шт.

35

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

3шт.

36

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

3шт.

37

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake and exhaust valve stems, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

12шт.

38

A166147

GASKET

- water manifold, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

3шт.

39

A166148

GASKET

- thermostat housing, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

40

A58662

MANIFOLD GASKET

GASEKT - intake manifold, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

6шт.

41

A140252

MANIFOLD GASKET

- exhaust manifold (metal faced) (Replaces A58895), valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

6шт.

42

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

6шт.

43

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injection nozzle, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

6шт.

44

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

45

A58899

GASKET,0.45mm Thk

- turbocharger, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

2шт.

46

A58910

GASKET

- air intake elbow, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

47

1342829C1

GASKET

- injection nozzle, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve; Replaces A76640

6шт.

48

A138817

RING,2.64mm Thk

SEAL - turbocharger, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.

49

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust, valve grind kit, use with 5.092 inch to 5.097 inch fire dam diameter sleeve

1шт.
