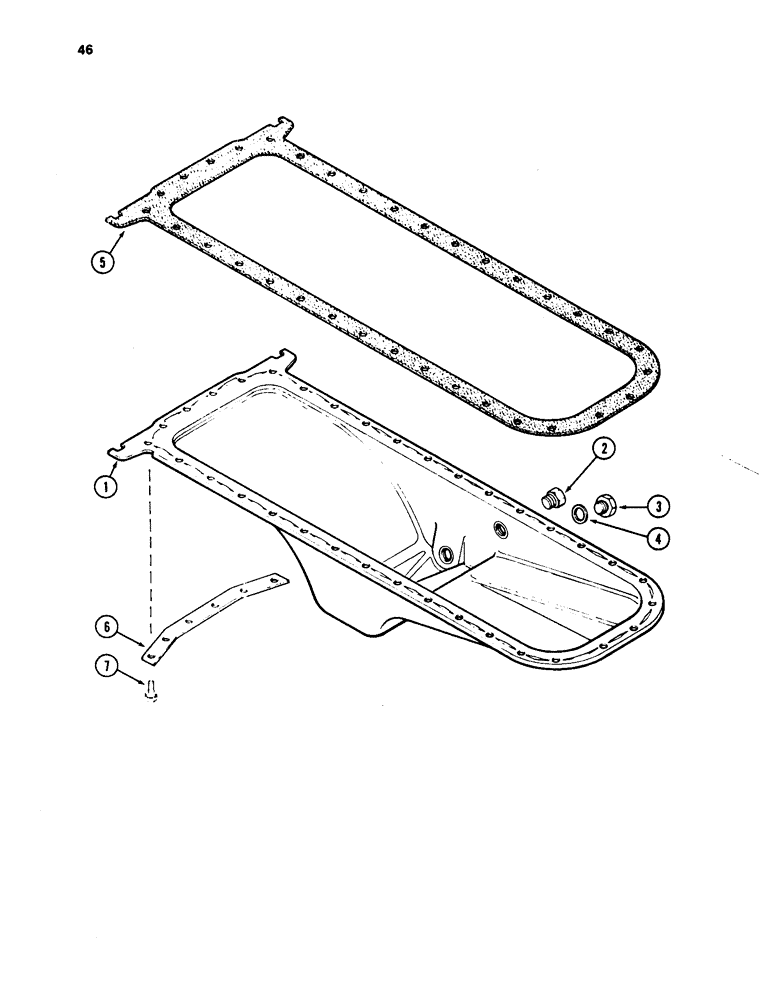

Запчасти Case W24C (046) - OIL PAN, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A62410

PAN

ASSEMBLY - oil, Includes: Ref. 2

1шт.

2

221-664

PLUG,Hex Hd, 1/2"-14

- hex, 1/2 inch PT

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug, 7/8 x 1-1/8 x 1/16 inch (22 x 26 x 2 mm) copper

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See figure 50)

1шт.

6

A58932

STRAP

- pan reinforcement

1шт.

7

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - pan, hex, Sems, 3/8 NC x 7/8 inch

32шт.
