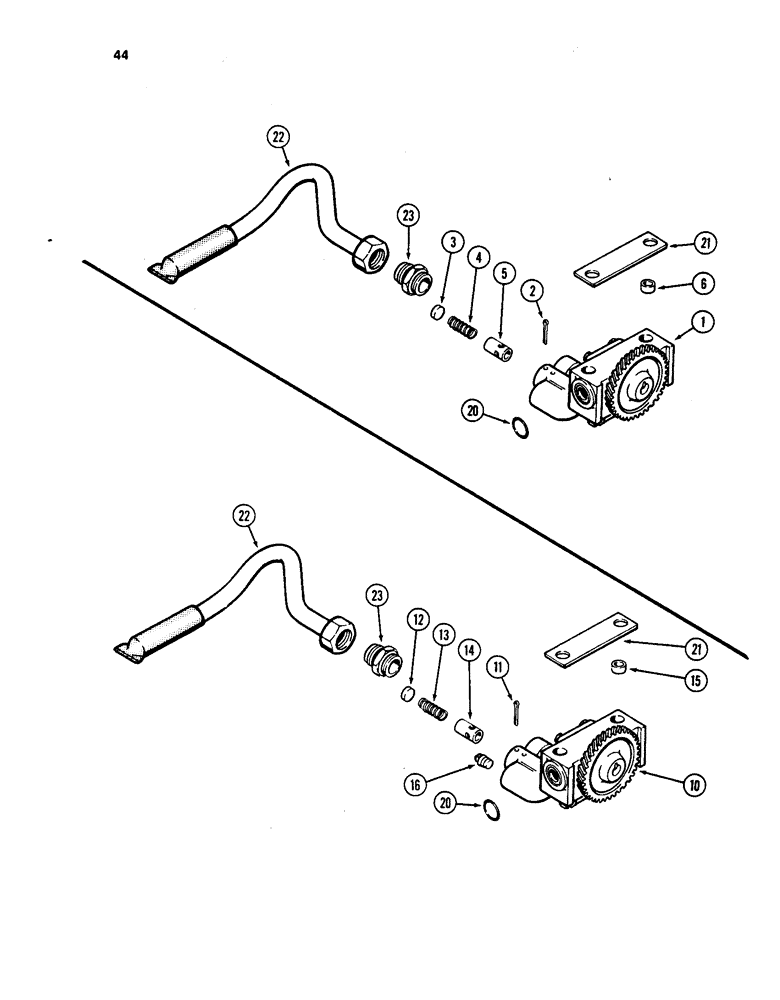

Запчасти Case W24C (044) - OIL PUMP, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, naturally aspirated, Includes: Ref. 2 - 6

1шт.

2

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), , Relief valve 3/32" x 1 1/2"

1шт.

3

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16 inch (17 mm) cup type

1шт.

4

A155980

SPRING

- relief valve

1шт.

5

A65083

VALVE

- oil pressure regulating

1шт.

6

A58915

SLEEVE

- pump locating

1шт.

10

A151665

PUMP

ASSEMBLY - oil, altitude compesating turbocharged, Includes: Ref. 11 - 16

1шт.

11

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

12

41-1011

PLUG,Cup, 11/16"

- 11/16 inch (17 mm) cup type

1шт.

13

A155980

SPRING

- relief valve

1шт.

14

A65083

VALVE

- relief

1шт.

15

A58915

SLEEVE

- locating

1шт.

16

221-844

PLUG,Hex Soc, 1/2"-14

- socket head, 1/2 inch PT

1шт.

20

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, 15/16 x 1-1/8 x 3/32 inch (24 x 29 x 2 mm)

1шт.

21

A58859

SHIM,.005" Thk

Oil pump to front brg. cap (0.13 mm) .005" Thk

1шт.

22

A139711

TUBE

- oil suction

1шт.

23

A142004

CONNECTOR, ELEC

CONNECTOR -, Serial Range: tube-pump

1шт.
