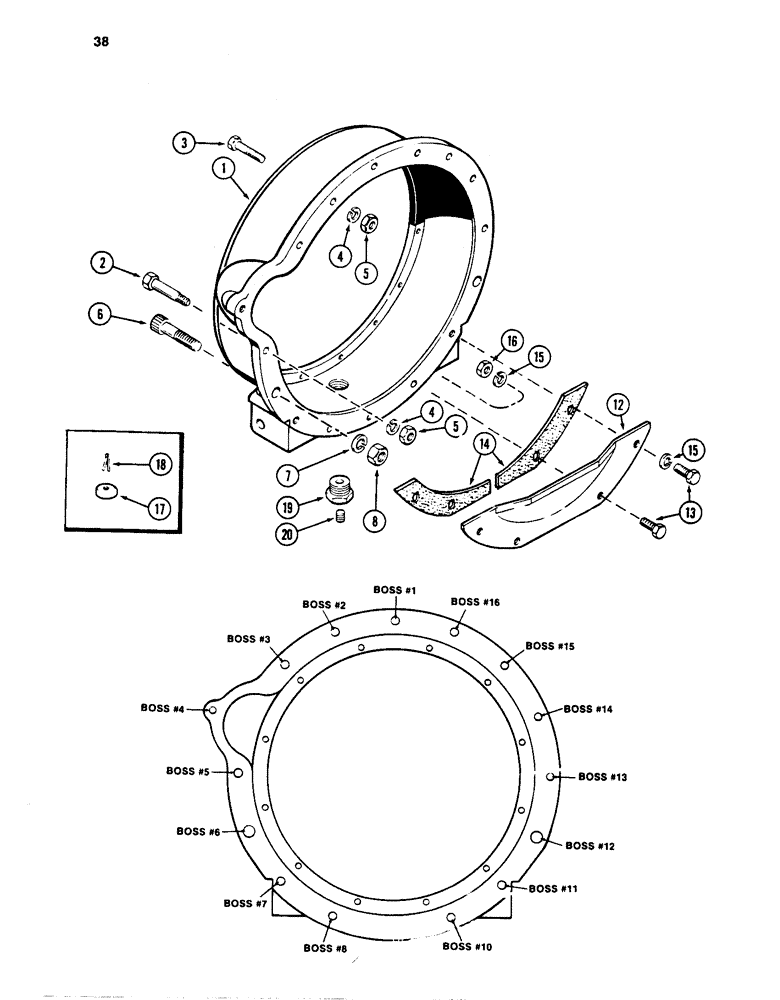

Запчасти Case W24C (038) - FLYWHEEL HOUSING, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A166156

HOUSING

- flywheel (Replaces A153185) Includes Ref. 19 and 20)

1шт.

2

A61041

STEP BOLT

BOLT - dowel, 1/2 NC x 2-7/16 inch (Boss 13) (Order A149765)

1шт.

2

A61040

STEP BOLT

BOLT - dowel, 1/2 NC x 3 inch (Boss 13 (Order A149764)

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Boss 1, 2 and 16) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, (Boss 3, 14 and 15) 1/2 NC x 2-1/2 inch

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - 12 point socket head, 3/4 NC x 3 inch Grade 8 (Boss 6 and 12)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

(Boss 6 and 12) 3/4"-10, G5

2шт.

12

A58931

GUARD

SHIELD - dust, flywheel

1шт.

13

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- shield, hex, 1/2 NC x 3/4 inch (Boss 7 and 11)

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Shield (Boss 8 and 10) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

14

L111430

GASKET

- flywheel housing

2шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

17

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4 inch (32 mm) diameter cup type (if equipped)

1шт.

18

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), , If equipped 1/8" x 5/8"

1шт.

19

221-1062

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - Reducer, hex

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.
