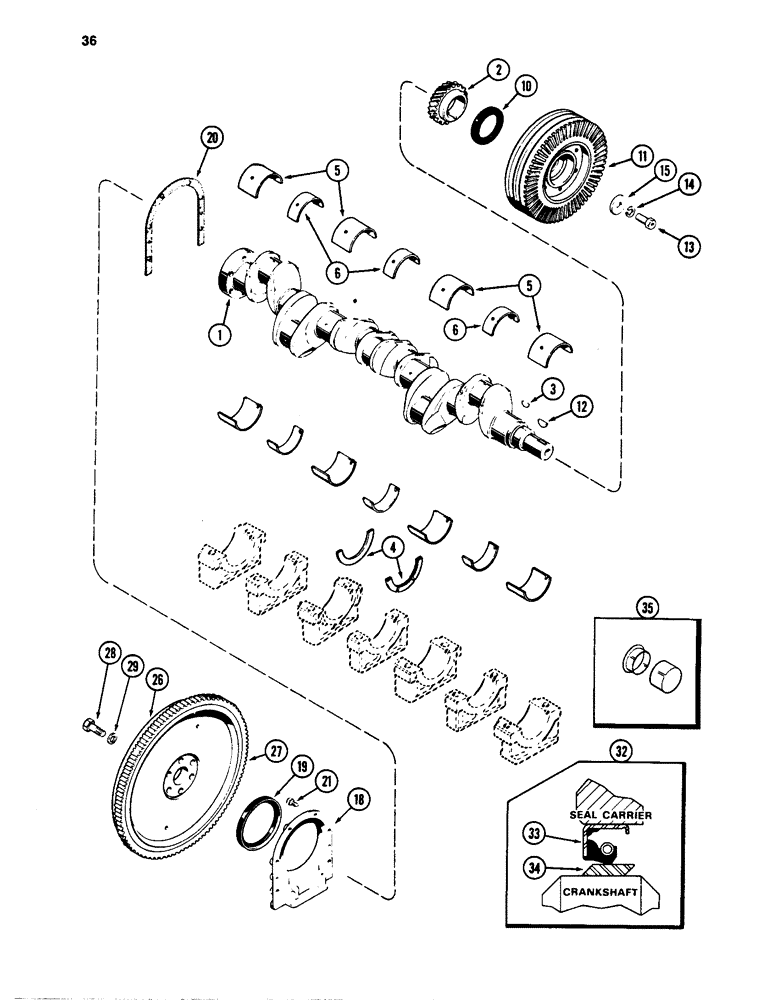

Запчасти Case W24C (036) - CRANKSHAFT AND FLYWHEEL, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A154305

CRANKSHAFT

ASSEMBLY - engine (Includes Ref. 2 and 3)

1шт.

1

A166117

CRANKSHAFT

ASSEMBLY - engine, 0.010 inch undersize 90.254 mm), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft timing

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Timing gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - Thrust, Standard, 0.156 inch (3.97 mm)

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - Thrust Oversize 0.162 inch (4.12 mm)

2шт.

5

A43163

BEARING LINER

INSERT SET - main bearing, wide, standard (Set of 2)

4шт.

5

A43164

BEARING LINER

INSERT SET - main bearing, wide, 0.002 inch undersize (0.06 mm) (Set of 2)

4шт.

5

A43165

BEARING LINER

INSERT SET - main bearing wide, 0.010 inch undersize (0.26 mm) (Set of 2)

4шт.

5

A43166

BEARING LINER

INSERT SET - main bearing, wide, 0.020 inch undersize (0.52 mm ) (Set of 2)

4шт.

5

A43167

BEARING LINER

INSERT SET - main bearing, wide, 0.030 inch undersize (0.78 mm) (Set of 2)

4шт.

6

A43158

BEARING LINER

INSERT SET - main bearing, narrow, standard (Set of 2)

3шт.

6

A43159

BEARING LINER

INSERT SET - main bearing, narrow, 0.002 inch undersize (0.06 mm) (Set of 2)

3шт.

6

A43160

BEARING LINER

INSERT SET - main bearing, narrow, 0.010 inch undersize (0.26 mm) (set of 2)

3шт.

6

A43161

BEARING SET

INSERT SET - main bearing, narrow, 0.020 inch (0.52 mm) (Set of 2

3шт.

6

A43162

BEARING LINER

INSERT SET - main bearing, narrow, 0.030 inch (0.78 mm) (Set of 2)

3шт.

10

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front (Replaces A62049)

1шт.

11

A65125

PULLEY

- fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

13

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- pulley, hex, 5/8 NF x 1-1/2 inch (replaces A28028)

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A156428

WASHER

- pulley, 21/32 x 2-1/8 x 23/64 inch (17 x 54 x 9 mm)

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear, 4-3/4 x 1/2 inch (121 x 146 x 13 mm) (See Ref. 32)

1шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - retainer, hex, with lockwasher, 3/8 NC x 1-1/4 inch

6шт.

26

A154190

FLYWHEEL

ASSEMBLY - engine (Replaces A65049), Includes: Ref. 27

1шт.

27

A27920

GEAR

- starter ring

1шт.

28

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel, 5/8 NF x 1-1/2 inch (Grade 8)

6шт.

29

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - hardened, 21/32 x 1 x 1/8 inch (17 x 25 x 3 mm)

6шт.

32

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, 4-7/8 x 5-3/4 x 1 x 1/2 inch (124 x !46 x 13 mm) (Reference No. A65871, wear kit

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4 x 4-7/8 x 9/16 inch (121 x 124 x 14 mm) (Reference No. A65872), wear seal kit

1шт.

35

A154684

SLEEVE

KIT - wear, pulley sleeve, seal

1шт.
