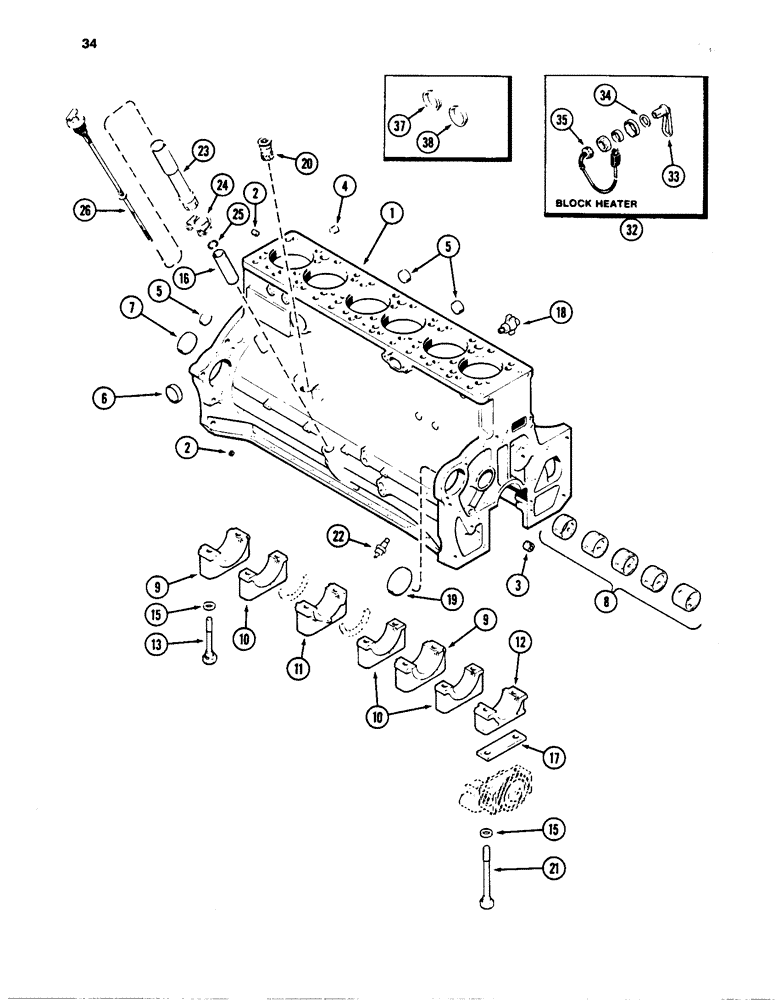

Запчасти Case W24C (034) - CYLINDER BLOCK, ENGINE SERIAL NO. 10187283 AND AFTER, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

A152986

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, camshaft, crankshaft and bearings, piston assembly, connecting rods and bearings and timing gears), Includes: Ref. 1 - 19

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66526), Includes: Ref. 2 - 19

1шт.

2

221-1849

PLUG

- oil passage, socket head, 1/8 inch PT

6шт.

3

221-1843

PLUG

- oil passage, socket head, 3/8 inch PT

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- water passage, socket head, 3/4 inch PT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water passage, 1-3/8 inch (35 mm) cup type

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2 inch (51 mm) cup type

1шт.

7

A24361

PLUG

- camshaft hole, 2-3/8 inch (62 mm) cup type

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (See figure 30)

1шт.

9

A154398

BEARING CAP

CAP - main bearing, wide (rear and intermediate) Replaces A154391)

2шт.

Ref. 9 - Replaced by A185063

1шт.

10

A154397

BEARING CAP

CAP - main bearing, narrow (intermediate) (Replaces A154390)

3шт.

Ref. 10 - Replaced by A154390

1шт.

11

A154392

CAP

- main bearing, wide (thrust)

1шт.

12

A154389

CAP

- main bearing, wide (front)

1шт.

13

A66948

STEP BOLT

BOLT - bearing caps, 5/8 NC x 5 inch

12шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts, 5/8 x 1 x 1/8 inch (16 x 25 x 3 mm)

14шт.

16

A34540

TUBE

- oil filler and dipstick

1шт.

17

A58859

SHIM,.005" Thk

Oil pump (0.13 mm) .005" Thk

1шт.

18

A23656

COCK, DRAIN

DRAIN - water

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

- auxiliary pump opening, 3-1/4 inch (83 mm) cup type

1шт.

20

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

21

A66949

STEP BOLT

BOLT - front bearing cap, 5/8 NC x 7-1/4 inch

2шт.

22

A66737

SWITCH, PRESSURE

UNIT - sending, engine oil pressure

1шт.

23

A153835

TUBE

- extension, dipstick and oil filler

1шт.

24

L47766

CLAMP

- tube

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- tube, 1-1/8 x 1-3/8 x 1/8 inch (29 x 35 x 31 mm)

1шт.

26

A154242

DIPSTICK

ASSEMBLY - oil level

1шт.

32

A155436

RESISTOR

HEATER ASSEMBLY, block, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Reference No. A155435), block

1шт.

34

A45114

GASKET

- element, block heater

1шт.

35

A44813

CABLE EXTENSION

CORD ASSEMBLY - 12 inch long (305 mm), block heater

1шт.

A44006

SLEEVE

KIT - block heater, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - use in block with 2-1/16 inch (52 mm) diameter hole (Reference No. A44007), heater

1шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE - use in block with 2-1/8 inch (54 mm) diameter hole (Reference No. A44008), heater

1шт.
