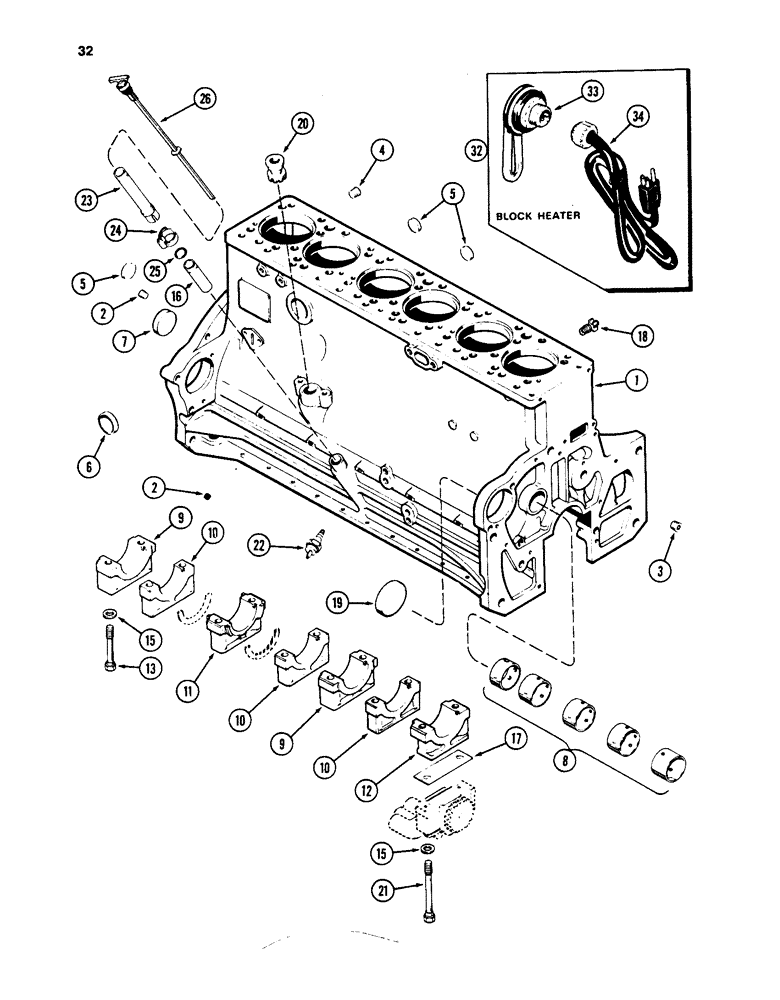

Запчасти Case W24C (032) - CYLINDER BLOCK, PRIOR TO ENGINE SERIAL NO. 10187283, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

A152986

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block, camshaft, crankshaft and bearings, piston assembly, connecting rods and bearing and timing gears), Includes: Ref. 1 - 19

1шт.

1

A46002

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66526), Includes: Ref. 2 - 19

1шт.

1

AR77835

REMAN-BASIC ENGINE

Remanufactured, Engine Basic - replacement for engines with block casting number of A66526

1шт.

1

AC77835

CORE-BASIC ENGINE

Return Number, Engine Basic - replacement for engines with block casting number of A66526

1шт.

2

221-1849

PLUG

PLUG - oil passage, socket head, 1/8 inch PT

6шт.

3

221-1843

PLUG

PLUG - oil passage, socket head, 3/8 inch PT

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

PLUG - water passage, socket head, 3/4 inch PT

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - water passage, 1-3/8 inch (35 mm) cup type

3шт.

6

A58569

PLUG,Cup, 2", Stainless

PLUG - heater hole, 2 inch (51 mm) cup type

1шт.

7

A24361

PLUG

PLUG - camshaft hole, 2-3/8 inch (61 mm) cup type

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (See figure 30)

1шт.

9

A154398

BEARING CAP

CAP - main bearing, wide rear and intermediate (Replaces A154391)

2шт.

Ref. 9 - Replaced by A185063

1шт.

10

A154397

BEARING CAP

CAP - main bearing, narrow, intermediate (Replaces A154390)

3шт.

Ref. 10 - Replaced by A154390

1шт.

11

A154392

CAP

CAP - main bearing, wide (thrust) (Replaces A58785)

1шт.

12

A154389

CAP

CAP - main bearing, wide (front) (Replaces A58782)

1шт.

13

A66948

STEP BOLT

BOLT - bearing caps, 5/8 NC x 5 inch

12шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts, 5/8 x 1 x 1/8 inch (16 x 25 x 3 mm)

14шт.

16

A34540

TUBE

TUBE - oil filler and dipstick

1шт.

17

A58859

SHIM,.005" Thk

SHIM, , Oil pump (0.14 mm) .005" Thk

1шт.

18

A23656

COCK, DRAIN

DRAIN - water

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - auxiliary pump opening, 3-1/4 inch (83 mm) cup type

1шт.

20

A34266

DRIVE

DRIVE ASSEMBLY - tachometer

1шт.

21

A66949

STEP BOLT

BOLT - front bearing cap, 5/8 NC x 7-1/4 inch

2шт.

Ref. 22A - W10140 Unit, sending (For the Oil Pressure Gauge)

1шт.

Ref. 22 - (Is for the Oil Pressure Light)

1шт.

22

A66737

SWITCH, PRESSURE

PRESSURE SWITCH UNIT - sending, engine oil pressure

1шт.

23

A65778

TUBE

TUBE - extension, dipstick and oil filler

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube, 1-3/16 to 1-3/4 inch (30 to 44 mm)

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O RING - tube, 1-1/8 x 1-3/8 x 1/8 inch (29 x 35 x 31 mm)

1шт.

26

A67028

DIPSTICK

DIPSTICK ASSEMBLY - oil level

1шт.

32

A44812

HEATER

HEATER ASSEMBLY - block (Order A155436, See figure 35), Includes: Ref. 33 and 34

1шт.

33

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING - heater element, 1-3/4 x 2 x 1/8 inch (44 x 51 x 3 mm), block heater

1шт.

34

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, 12 inch (305 mm) long, block

1шт.
