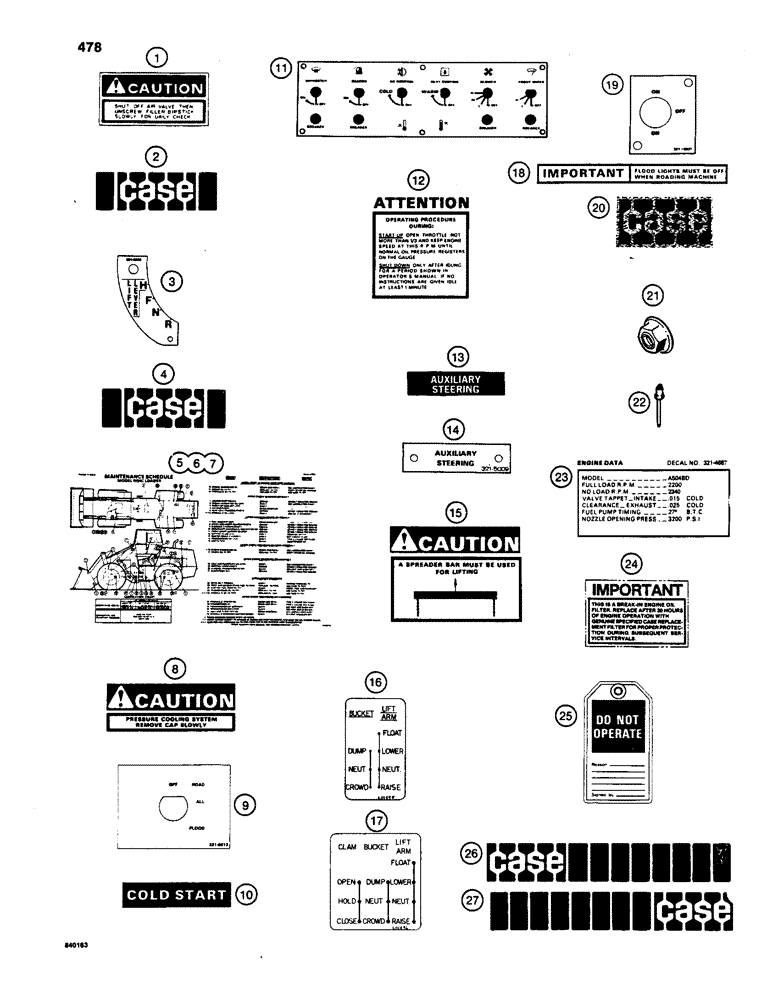

Запчасти Case W24C (478) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-3207

DECAL

- hydraulic tank, daily check

1шт.

2

321-2428

DECAL

- CASE rear, no longer available, order Ref. 6 on figure 474

1шт.

3

321-6243

DECAL

- transmission control, if used

1шт.

4

321-3126

DECAL

- CASE front, if used, order Ref. 8 on figure 474

1шт.

5

321-4473

BOARD

DECAL - maintenance chart, for models with reservoir filter

1шт.

6

321-6409

DECAL

- maintenance chart, for models with return filter and before tractor SN 9148989

1шт.

7

L110753

BOARD

DECAL - maintenance chart, after tractor SN 9148989

1шт.

8

321-3061

DECAL

- caution, pressure cap, no longer availiable, order Ref. 16 on figure 474

1шт.

9

321-5913

DECAL

- Off-Road-All-Flood

1шт.

10

321-4425

DECAL

- cold start

1шт.

11

321-4137

DECAL

- switches, cab

1шт.

12

321-3766

DECAL

- turbocharger protection

1шт.

13

321-4479

DECAL

- auxiliary steering, if used

1шт.

14

321-5009

DECAL

- auxiliary steering, if used

1шт.

15

321-3574

DECAL

- tie down and lift instructions

1шт.

16

L111495

DECAL

- loader control, 2 spool, brown

1шт.

17

L111496

DECAL

- loader control, 3 spool, brown

1шт.

18

321-4632

DECAL

- Important, floodlights

1шт.

19

321-6037

DECAL

- On-Off-On

1шт.

20

321-4739

EMBLEM

MEDALLION - Case

1шт.

21

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - clip

2шт.

22

151-525

RIVET,Pop, 1/8" x .275"

- pop, used on Refs. 3, 7, 14, 15, and 26

1шт.

23

321-4687

DECAL

- engine data

1шт.

24

321-3863

DECAL

- oil filter

1шт.

25

321-4614

TAG

- do not operate

1шт.

26

321-3129

DECAL

- hood, right-hand, no longer available, order Ref. 13 on figure 474

1шт.

27

321-3072

DECAL

- hood, left-hand, no longer available, order Ref. 14 on figure 474

1шт.

S61339

DECAL

- clam bucket position indicator, adhesive-backed

1шт.

L114181

DECAL

- clam bucket position indicator, bolt-on version

1шт.
