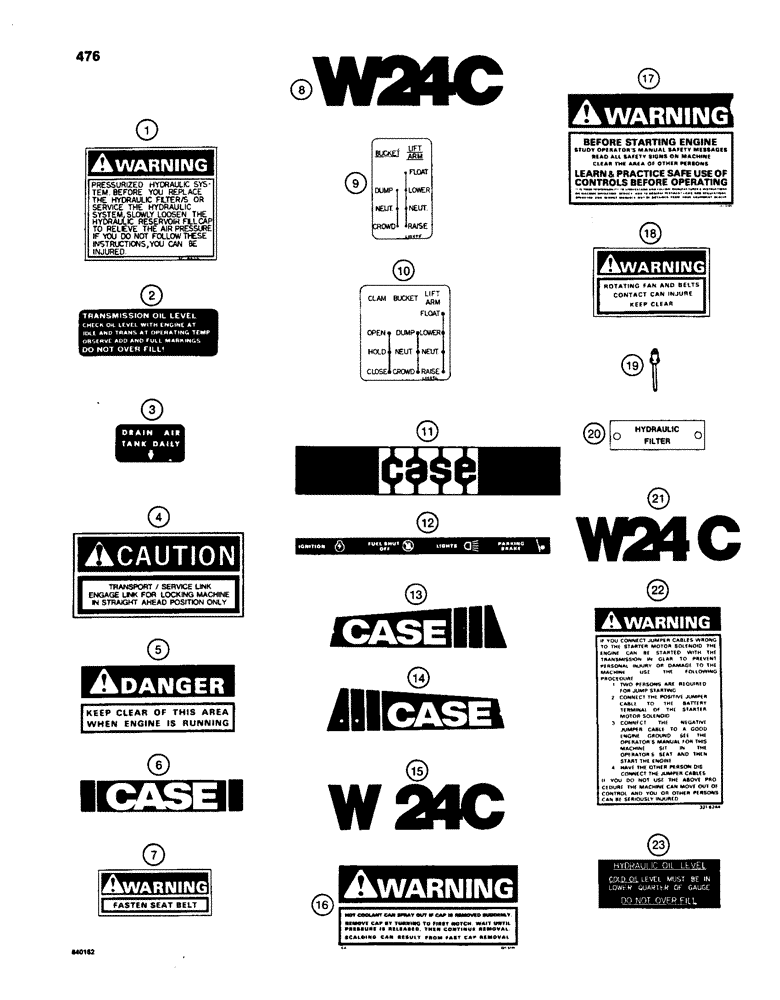

Запчасти Case W24C (476) - DECAL KIT, FOR TAN TRACTORS (09) - CHASSIS/ATTACHMENTS

L36269

DECAL

KIT - decal, Includes: Ref. 1 - 23

1шт.

1

321-6666

DECAL

- hydraulic reservoir

1шт.

2

321-1980

DECAL

- transmission oil level

1шт.

3

321-1077

DECAL

- air tank drain, lower right-hand front and rear frame

2шт.

4

321-3206

DECAL

- caution, transport/service

1шт.

5

321-3205

DECAL

- danger

1шт.

6

L111858

DECAL

- CASE, rear

1шт.

7

321-3060

DECAL

- seat belt

1шт.

8

L112336

DECAL

- W24C, model number

1шт.

9

L111496

DECAL

- loader control, 2 spool, cab model

1шт.

10

L111495

DECAL

- loader control, 3 spool, cab model

1шт.

11

L57685

DECAL

- CASE, instrument cluster

1шт.

12

321-2613

DECAL

- instrument cluster

1шт.

13

L112560

DECAL

- CASE, hood, right-hand, if used

1шт.

14

L112559

DECAL

- CASE, hood, left-hand, if used

1шт.

15

L112531

DECAL

- W24C, left-hand

1шт.

16

321-6672

DECAL

- warning, pressure cap

1шт.

17

321-3705

DECAL

- warning, before operation of machine

1шт.

18

321-3596

DECAL

- warning, fan

2шт.

19

151-525

RIVET,Pop, 1/8" x .275"

- pop

2шт.

20

321-6313

DECAL

- hydraulic filter

1шт.

21

L112530

DECAL

- W24C, right-hand

1шт.

22

321-6244

DECAL

- jump start

1шт.

23

L113157

DECAL

- hydraulic oil level

1шт.
