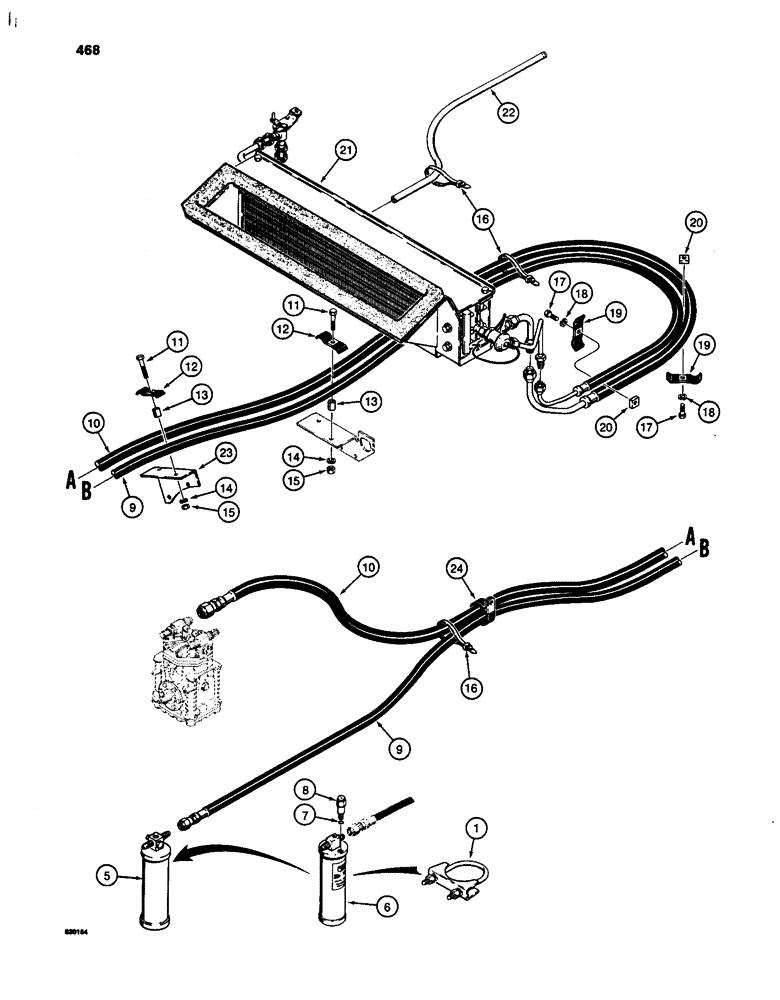

Запчасти Case W24C (468) - AIR CONDITIONING LINES, DRYER TO PLENUM (09) - CHASSIS/ATTACHMENTS

1

L72884

CLAMP

ASSEMBLY - includes hardware if used

1шт.

5

L109036

EVAPORATOR

DRYER - includes relief valve

1шт.

6

L77169

CLEANER ASSY.

DRYER - with relief valve, order L109036

1шт.

7

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- used with L77169, if used

1шт.

8

L77168

LOCK VALVE

RELIEF VALVE - used with L77169, if used

1шт.

9

L59937

HOSE

- high pressure, 165" (4191 mm) long

1шт.

10

L59938

HOSE

- low pressure, 149" (3785 mm) long

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.

12

L79797

CLAMP

- hose

2шт.

13

33126

BUSHING

SPACER - clamp

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

L79797

CLAMP

- hose

2шт.

20

25-286

NUT,Sq, 3/8"-16, G2, Hvy

SQUARE NUT - 3/8" - 16 NC

2шт.

21

REF

INSTRUCTION

PLENUM - see figure 462

1шт.

22

L71740

TUBE,0.5" ID x 29" L

- drain

2шт.

23

L73911

BRACKET

- hose support

1шт.
