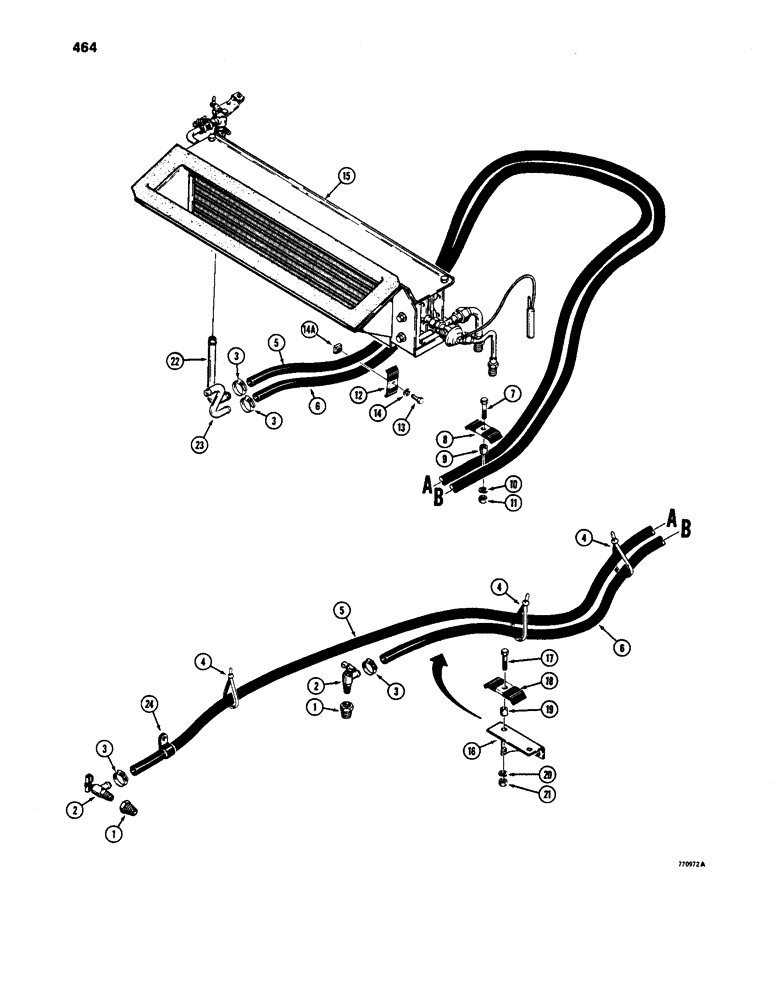

Запчасти Case W24C (464) - HEATER LINES (09) - CHASSIS/ATTACHMENTS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer

2шт.

2

A16764

VALVE

- shutoff

2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

L52721

HOSE,3124.00 mm, SAE 20R3

- 5/8" (16 mm) ID x 158" (4013 mm) long, use A42610 hose

1шт.

6

A19943

HOSE

- 5/8" (16 mm) ID x 123" (3124 mm) long, use A42610 hose

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

1шт.

8

D40236

CLAMP

- hose

2шт.

9

33126

BUSHING

SPACER - clamp

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

12

D40236

CLAMP

- hose

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

14a

25-286

NUT,Sq, 3/8"-16, G2, Hvy

SQUARE NUT - 3/8"

1шт.

15

REF

INSTRUCTION

PLENUM - see figure 462

1шт.

16

L73911

BRACKET

- hose support

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

18

D40236

CLAMP

- hose

1шт.

19

33126

BUSHING

SPACER - clamp

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

22

L100842

HEATER TUBE,147.5, 63.5 mm L

TUBE - inlet

1шт.

23

L100843

HEATER TUBE,127, 95 mm L

TUBE - outlet

1шт.

24

NLS

NO LONGER SERVICED

- hose

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, not shown, 5/8" (16 mm) ID x 50 ft. (15.2 m) long

1шт.
