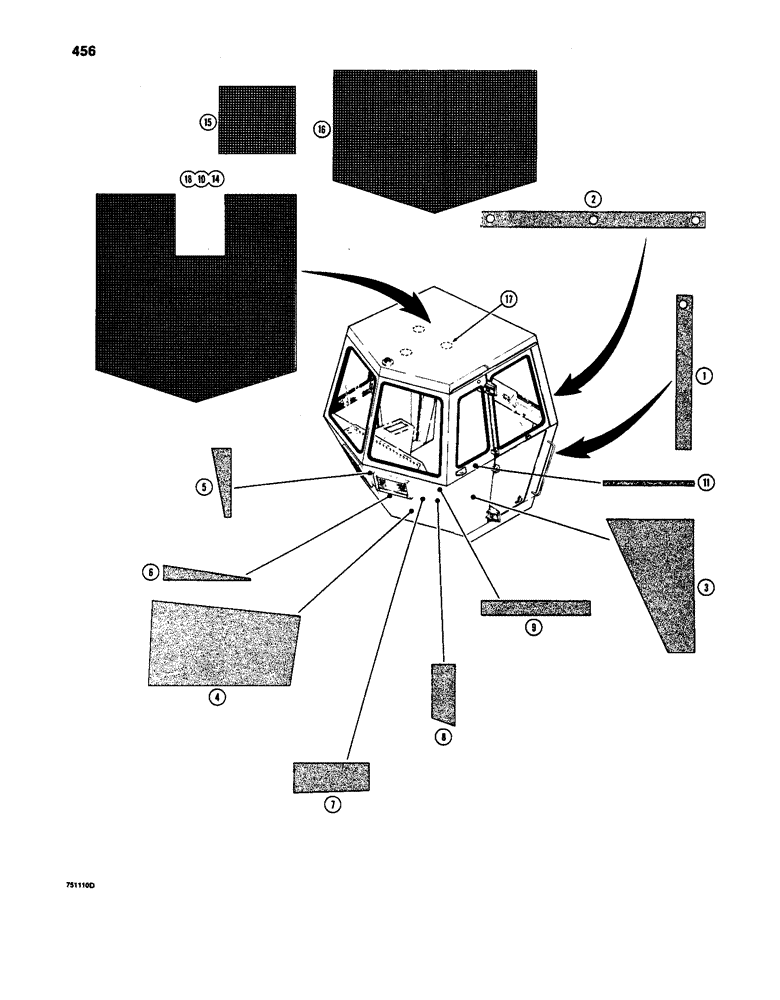

Запчасти Case W24C (456) - NOISE REDUCTION PADS, USED BEFORE CAB SN 27750 (09) - CHASSIS/ATTACHMENTS

1

D87127

FOAM

- cowl

2шт.

2

N9062

INSULATOR

STRIP - rubber, windshield

1шт.

3

D71526

FOAM

- side panel compartment

2шт.

4

D72726

FOAM

- rear lower panel

2шт.

5

D71531

FOAM

- lower panel, center

2шт.

6

D71532

FOAM

- lower rear panel

2шт.

7

D78387

FOAM

- end, lower rear panel, cut to desired width

2шт.

8

D71534

FOAM

- side, lower rear panel

2шт.

9

D70706

FOAM

- top, lower rear panel, cut to desired width

2шт.

10

D71508

HEADLINER - cab, if used, order N8644, Ref. 18

2шт.

11

REF

INSTRUCTION

FOAM - 17" (432 mm) long, at window hold back, latch, cut from L35756 bulk

4шт.

12

L35756

SEALING STRIP

FOAM - bulk, 3/8" x 1" x 50 ft. (10 mm x 25 mm x 15.2 metres) not shown

1шт.

13

A55582

PAD

- non-skid, door, not shown

2шт.

14

D83140

ROOF

HEADLINER - if used, yellow, 2" thick, no longer available, order N8644

1шт.

15

D76961

ROOF

HEADLINER - front, if used, order N8644

2шт.

16

D76960

ROOF

HEADLINER - rear, if used, order N8644

1шт.

17

R37161

RETAINER

BUTTON - headliner

3шт.

18

N8644

FOAM

HEADLINER - yellow, 1" thick, if used

1шт.
