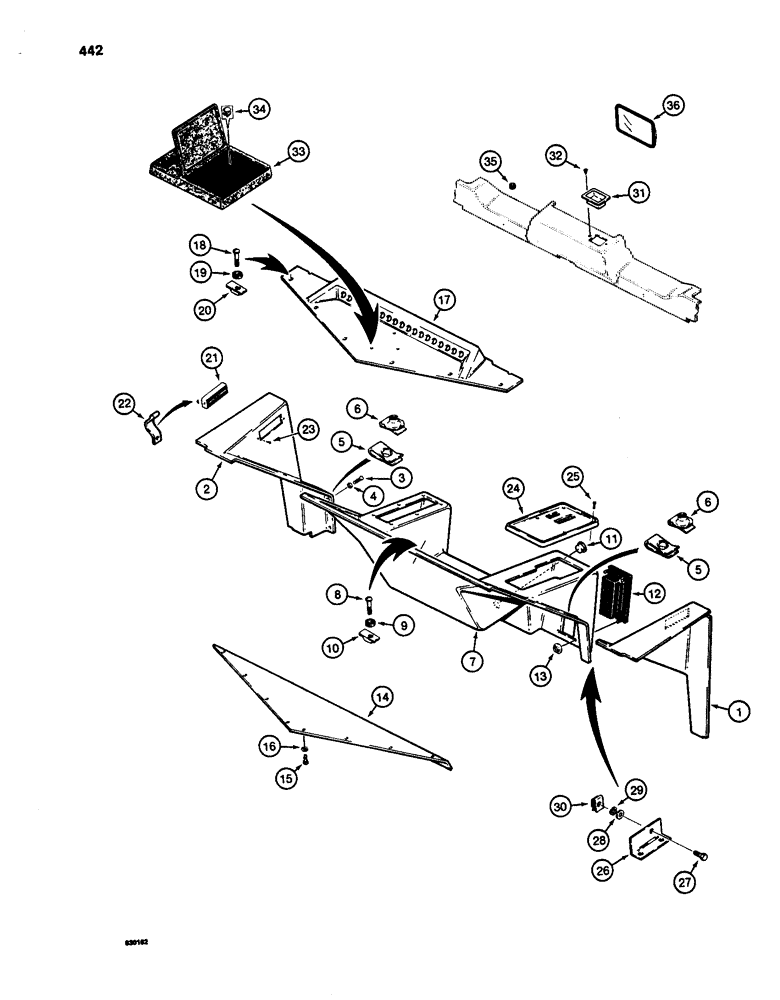

Запчасти Case W24C (442) - CAB CLOSURE PARTS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - operators, machinery item, see figure 2 for ordering

1шт.

1

L74567

PANEL

- right-hand side, cab, black

1шт.

1

L111763

PANEL

- right-hand side, cab, brown

1шт.

2

L74562

PANEL

- left-hand side, cab, black

1шт.

2

L111762

PANEL

- left-hand side, cab, brown

1шт.

3

187-1906

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

SCREW - oval head, No. 10 - 16 NC x 1"

14шт.

4

F43576

WASHER

- special, black, nylon

14шт.

5

131-642

SPRING NUT,Tinn, U, #10

- U-type, No. 10

8шт.

6

131-645

NUT,Tinn, U, #10

- U-type, No. 10

4-1шт.

7

F43500

PANEL

- center, black

1шт.

7

L111749

PANEL

- center, brown

1шт.

8

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - oval head, No. 10 - 16 NC x 1-1/4"

5шт.

9

F43576

WASHER

- counersunk, black, nylon

5шт.

10

131-642

SPRING NUT,Tinn, U, #10

- U-type, No. 10

5шт.

11

353-416

PLUG,Dome, 1.750" hole, Nylon

- nylon, 1-3/4" diameter

1шт.

12

F43507

PLATE

LOUVER - outlet

2шт.

13

131-436

LOCK NUT,Push, 3/16"

NUT - special, 3/16"

8шт.

14

D78392

PANEL

- floor plate, cab SN 27750 and after

1шт.

14

D71520

ASH TRAY

PANEL - floor plate, before cab SN 27750, not shown

1шт.

15

187-528

SCREW - hex head, self-tapping, No. 10 - 32 NF x 1/2"

6шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

17

L77017

PANEL

- rear shelf, black

1шт.

17

L111761

PANEL

- rear shelf, brown

1шт.

18

187-1906

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

SCREW - oval head, No. 10 - 16 NC x 1"

6шт.

19

F43576

WASHER

- special, black , nylon

6шт.

20

131-642

SPRING NUT,Tinn, U, #10

- U-type, No. 10

6шт.

21

F89673

GUARD

LOUVER - square type

2шт.

22

A42575

CLIP

- louver

4шт.

23

151-502

RIVET,Pop, 1/8" x 5/16"

- dome head, 1/8" x 13/32"

4шт.

24

L106382

PANEL

- control cover, 2 spool

1шт.

24

L106381

PANEL

- control cover, 3 spool, not shown

1шт.

25

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, No. 10 - 16 NC x 3/4"

6шт.

26

L102827

BRACKET

- panel, side, if used

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", if used

1шт.

29

92-5

LOCK WASHER,5/16"

if used 5/16"

1шт.

30

131-641

NUT

- U-TYPE, 5/16" - 18 NC , if used

1шт.

31

D83138

ASH TRAY

ASHTRAY ASSEMBLY - 3-1/8" long

1шт.

31

D71520

ASH TRAY

ASHTRAY ASSEMBLY - 4-5/8" long, not shown

1шт.

32

187-1040

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - flat head, self-tapping, No. 6 - 32 NC x 3/8", if used

2шт.

33

A141933

BOX

- operators manual

1шт.

34

A162364

FASTENER

- box

3шт.

35

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- 1/4" x 5/16"

1шт.

36

L74714

MIRROR

- rear view, includes hardware

1шт.
