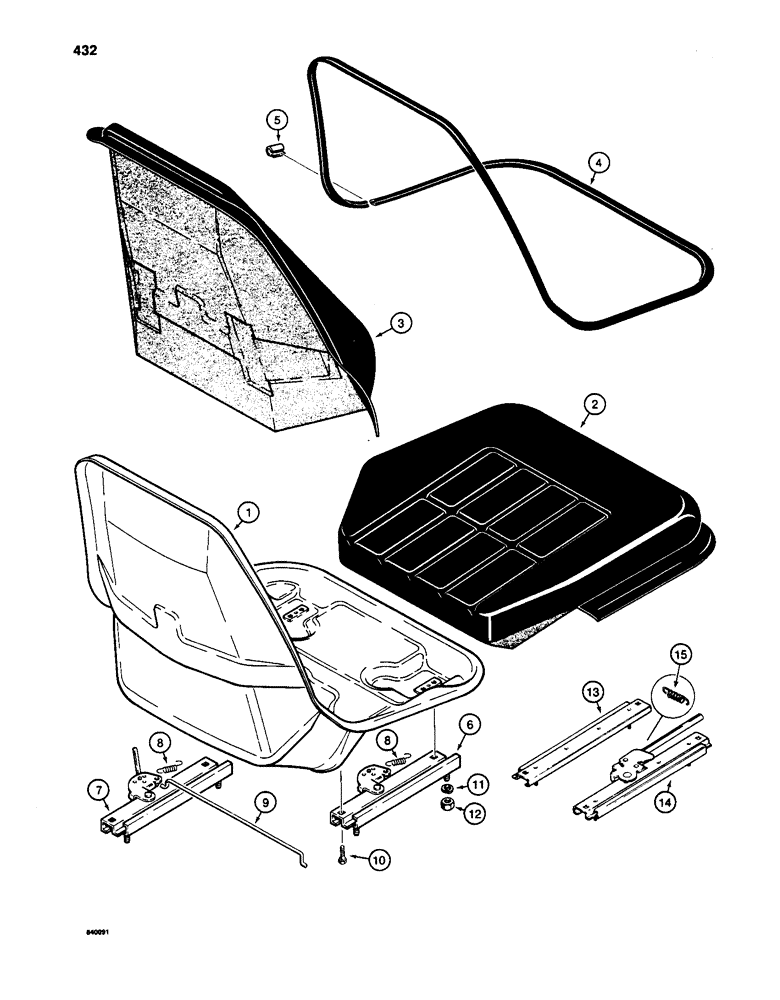

Запчасти Case W24C (432) - SEAT WITH CLIP ON CUSHIONS (09) - CHASSIS/ATTACHMENTS

L108783

SEAT

ASSEMBLY - operators, brown, with 5" slides, Includes: Ref. 1 - 15

1шт.

L111748

SEAT

ASSEMBLY - operators, black, with 5" slides, Includes: Ref. 1 - 15

1шт.

L109872

SEAT

ASSEMBLY - operators, black, with 6" slides, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N7675

CUSHION

- seat, includes N7802 clip kit, see below, L109872 and L111748

1шт.

3

N7674

BACKREST

CUSHION - backrest, includes N7802 clip kit, see below, L109872 and L111748

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - strip, cushion and shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

N7844

ADJUSTER

SLIDE - seat, right-hand, 6", used with L109872 seat only

1шт.

7

N7843

ADJUSTER

SLIDE - seat, left-hand, 6", used with L109872 seat only, Includes: Ref. 8

1шт.

8

N7928

SPRING

- adjustment lever, used with L109872 seat only

1шт.

9

L35492

ROD

- connecting

1шт.

10

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

4шт.

13

A64818

ADJUSTER

SLIDE - seat, left-hand, 5", used with L111748 and L108783 seats

1шт.

14

D59688

SLIDE

- seat, right-hand, 5", used with L111748 and L108783 seats, Includes: Ref. 15

1шт.

15

L35503

SPRING

- adjusting, used with L111748 and L108783 seats

1шт.

345-44

ADHESIVE

- pad retaining, in a can, 23 fl. ounces (880 ml), not shown

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 and six additional narrow clips

1шт.

Ref. 16 - 135603A1 Retainer Strip cushion and shell (Black)

1шт.
