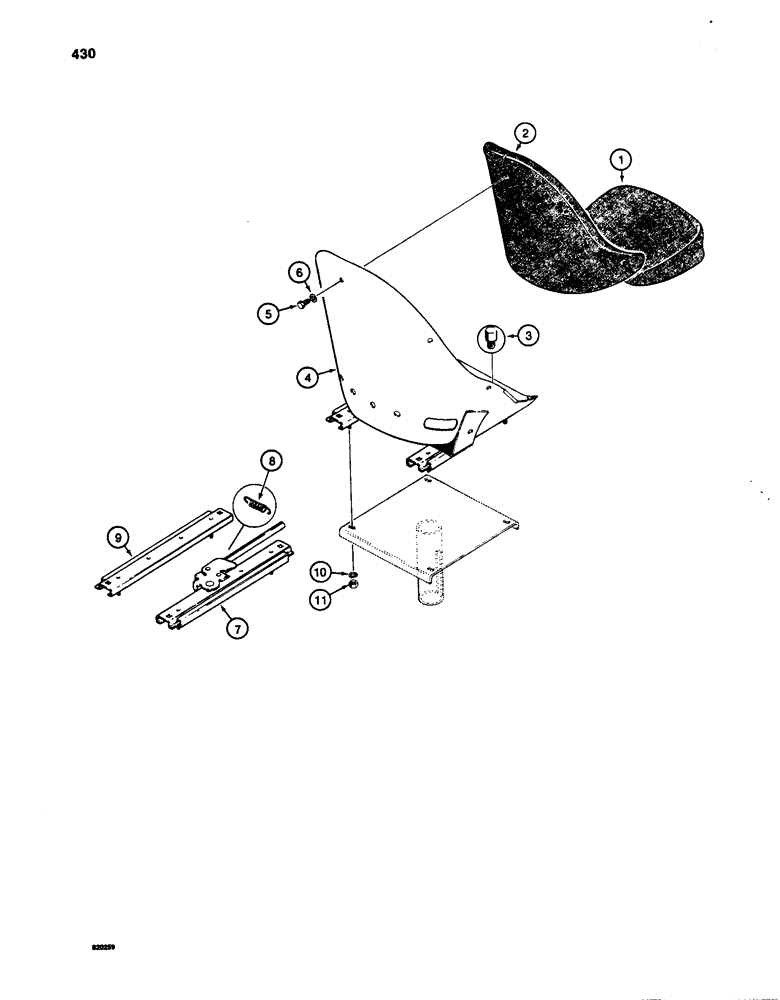

Запчасти Case W24C (430) - SEAT WITH FRONT ADJUSTMENT LEVER (09) - CHASSIS/ATTACHMENTS

L77247

SEAT

ASSEMBLY - front adjustment lever, Includes: Ref. 1 - 10

1шт.

1

D52470

CUSHION

- seat

1шт.

2

A42747

BACKREST

CUSHION - backrest

1шт.

3

D77386

PIN

- cushion alignment

2шт.

4

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

6

195-103

WASHER,5/16"

- flat, , plated 5/16"

5шт.

7

D59688

SLIDE

- with handle, replaces side adjustment lever, Includes: Ref. 8

1шт.

8

L35503

SPRING

- adjusting

2шт.

9

L35272

ADJUSTER

SLIDE - without adjustment lever

1шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.
